Specifications
Brand Name :
JinHong
Model Number :
JKLGYJ
Place of Origin :
Anhui China
MOQ :
100m
Price :
3.55-6.99USD
Payment Terms :
T/T
Delivery Time :
15-20Days
Description
High-Temperature Overhead Insulated Aluminum Conductor Cable JKLGYJ

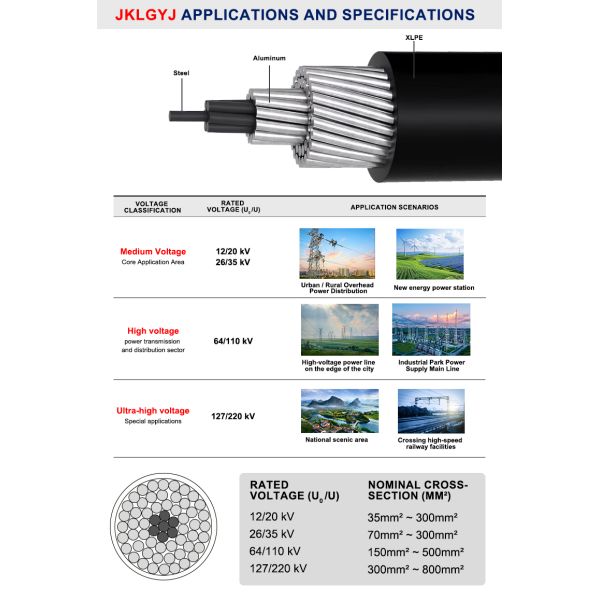

JKLGYJ is an aluminum core, XLPE insulated, steel-reinforced overhead power cable designed for overhead power transmission and distribution lines. It combines the lightweight advantage of aluminum with the mechanical strength of steel reinforcement, making it ideal for long-span overhead applications.
Name Breakdown
  • J: Overhead Cable
  • K: Control (historical designation, sometimes omitted)
  • L: Aluminum Conductor
  • G: Steel Reinforced
  • YJ: XLPE (Cross-Linked Polyethylene) Insulation
Applications
  • Overhead Power Lines: Rural electrification, suburban power distribution
  • Long-Span Installations: River crossings, valley spans, difficult terrain
  • Renewable Energy: Wind farm collection systems, solar park grid connections
  • Temporary Power: Construction sites, emergency power restoration
Technical Specifications
Common Cross-Sections:
Aluminum: 35-400 mm²
Steel: 6-54 mm² (depending on mechanical requirements)
Voltage Classes:
Low Voltage: 0.6/1 kV
Medium Voltage: 10 kV, 20 kV, 35 kV
Technical Data Table
Nominal Section (aluminium/steel, mm²)Structure pair no/diameter (mm)ThicknessReference Weight (kg/km)
10/26/1.503.4159
16/36/1.853.4194
25/46/2.323.4270
35/66/2.723.4304
50/86/3.203.4375
50/3012/2.323.4577
70/106/3.803.4477
70/4012/2.723.4741
95/1526/2.153.4611
95/207/4.163.4644
95/5512/3.203.4969
120/718/2.903.4622
120/2026/2.383.4716
120/257/4.723.4787
120/7012/3.603.41182
150/818/3.203.4723
150/2024/2.783.4817
150/2526/2.703.4878
Engineering Note: JKLGYJ provides a modern solution for overhead power distribution, combining the benefits of insulation with mechanical strength. Proper engineering design including sag-tension calculations, blowout analysis, and clearance verification is essential for safe and reliable installation.
High Temperature ABC Overhead Cable JKLGYJ PVC Insulation Cable
Frequently Asked Questions
What does JKLGYJ stand for?
JKLGYJ is an aluminum conductor, XLPE insulated, steel-reinforced aerial bundled cable (ABC) designed for overhead power distribution. The "G" is the key, indicating integrated steel reinforcement for mechanical strength.
What is the primary purpose and key advantage of this cable?
Its core purpose is safe and reliable overhead power distribution. The key advantage is its all-in-one, self-supporting design with XLPE insulation for safety and steel reinforcement for tensile strength.
Where is JKLGYJ cable typically used?
Engineered for overhead power lines in various environments, particularly where reliability and space are concerns, including medium voltage distribution, urban areas, and locations with high tree coverage.
What is the difference between JKLGYJ and JKLYJ?
The critical difference is the integrated strength member: JKLGYJ has integrated steel reinforcement making it fully self-supporting, while JKLYJ may require a separate support wire.
What are the standard voltage and temperature ratings?
Rated Voltage: 10 kV, 20 kV, 35 kV
Long-term Operating Temperature: 90°C
Short-circuit Withstand: 250°C
Can JKLGYJ be installed directly on the ground or buried?
No. It is designed exclusively for overhead aerial installation and is not suitable for direct burial or use as an underground cable.
What are the most important installation guidelines?
Must be installed to precise sag-tension tables, requires specialized aerial cable fittings, and must maintain minimum ground and obstacle clearances as per national electrical safety codes.
What international standards does it comply with?
Typically designed and tested according to international standards including IEC 60502 for power cables and IEC 61089 for conductors, plus compliance with local utility standards.
Why choose JKLGYJ for an overhead line project?
Choose JKLGYJ when you need to build a modern, reliable, and safe overhead distribution line that minimizes life-cycle costs, reduces outages, and improves safety in accessible areas.
High Temperature ABC Overhead Cable JKLGYJ PVC Insulation Cable
High Temperature ABC Overhead Cable JKLGYJ PVC Insulation Cable
Service of JinHong Company
Over Productions Service:
JinHong has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
Quality Certification Services:
JinHong cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
Profession Customer Service:
JinHong provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
Delivery And Shipping Services:
While we at JinHong provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
Packaging of JinHong:
JinHong cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
