JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
Specifications
Brand Name :
JinHong
Model Number :
JKLYJ
Place of Origin :
Anhui China
MOQ :
100m
Price :
0.9-1.51USD
Payment Terms :
T/T
Delivery Time :
7-14
Conductor Material :
XLPE
Description

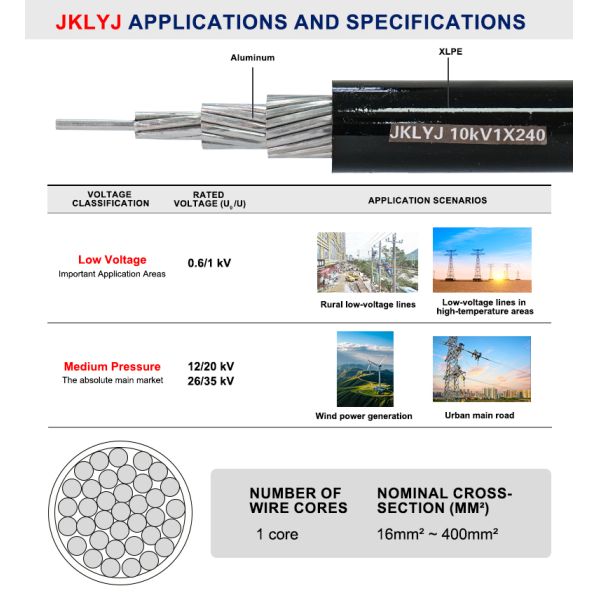

JKLYJ Single-Core PVC Insulated Aluminum Conductor Cable
XLPE Overhead Cable for Industrial Construction - Rated Voltage 10 KV
Product Features
  • Customizable Sizing: Available in various cross-sections to meet diverse construction project requirements
  • Enhanced Durability: Steel wire armour construction provides superior safety and longevity for demanding building applications

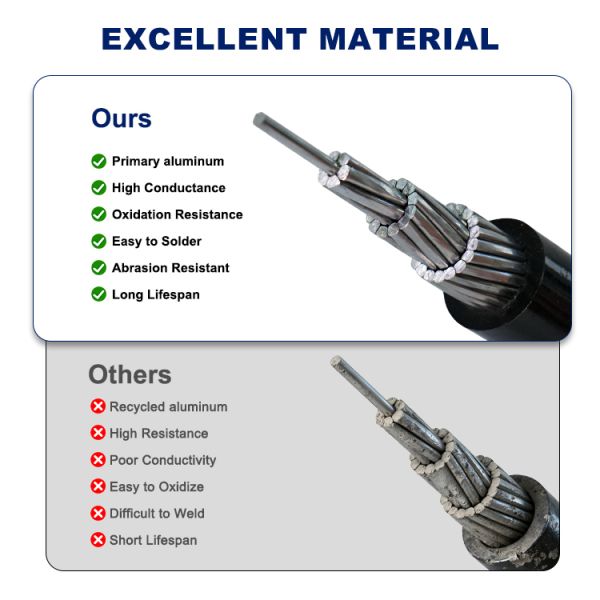

  • Premium Quality Materials: Pure copper conductors and copper/aluminum alloy ensure optimal conductivity and corrosion resistance
  • Advanced Insulation: 0.6/1kV 33kV XLPE insulated copper/aluminum alloy power cable delivers reliable voltage and current capacity performance
  • Environmental Protection: Polyethylene (PE) jacket prevents corrosion and environmental pollution, supporting global green initiatives
Technical Specifications
Nominal Cross-Section (mm²) Voltage Level Conductor Structure (Number × Diameter, mm) Maximum Cable Outer Diameter (mm)
50 1KV 7×2.90 ≤12.6
70 1KV 7×3.40 ≤13.8
95 1KV 19×2.50 ≤15.0
120 1KV 19×2.80 ≤16.0
150 1KV 19×3.15 ≤17.2
185 1KV 19×3.50 ≤18.5
240 1KV 37×3.20 ≤20.5
300 1KV 37×3.55 ≤22.0
400 1KV 37×4.00 ≤24.0
50 10KV 7×2.90 ≤16.1
70 10KV 7×3.40 ≤17.3
95 10KV 19×2.50 ≤18.5
120 10KV 19×2.80 ≤19.5
150 10KV 19×3.15 ≤20.7
185 10KV 19×3.50 ≤22.0
240 10KV 37×3.20 ≤24.0
300 10KV 37×3.55 ≤25.5
400 10KV 37×4.00 ≤27.5
Product Images
JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured CableJKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured CableJKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
Frequently Asked Questions
What does JKLYJ stand for?
J: Overhead line cable
K: (Historically for control, often omitted in modern power cable context)
L: Aluminum conductor
YJ: XLPE (Cross-Linked Polyethylene) Insulation
It is an aluminum conductor, XLPE insulated aerial bundled cable (ABC) designed for overhead power distribution lines.
What is the primary application of JKLYJ cable?
Specifically designed for overhead power distribution networks, offering safer and more reliable performance than bare conductors. Common applications include:
  • MV & LV Power Distribution in urban, suburban, and rural areas
  • Renewable Energy Projects connecting wind or solar farms to the grid
  • Forestry & Coastal Areas where tree contact or salt corrosion is a concern
What are the key advantages over traditional bare overhead conductors?
  • Enhanced Safety: Insulation prevents accidental contact, reducing electrocution risks
  • Improved Reliability: Minimizes faults from tree contact, animal bridging, or wind-blown debris
  • Reduced Right-of-Way: Can be installed on existing poles with closer spacing
  • Lower Maintenance: Less affected by contamination and corrosion
What is the standard voltage rating?
JKLYJ is typically used for Medium Voltage (MV) and Low Voltage (LV) applications.
  • Common ratings: 1 kV, 10 kV, 20 kV, 35 kV
  • The 0.6/1 kV version is standard for LV distribution
Can JKLYJ be installed on the same poles as bare conductors or communication lines?
Yes, but specific clearance distances must be maintained according to national electrical safety codes. Its insulated nature often allows for closer proximity compared to bare lines, but it should not be in direct, supportive contact with other lines.
What are the important installation guidelines (sag, tension, spacing)?
  • Sag & Tension: Must be calculated using specific sag-tension charts based on ambient temperature, ice/wind loading, and span length
  • Spacing: Use appropriate spacers for bundled configurations to maintain phase separation
  • Support: Must be installed with approved aerial cable fittings designed for insulated cables
Is it suitable for direct burial or underground duct installation?
No. JKLYJ is an Aerial Bundled Cable (ABC). Its construction is optimized for UV and weather resistance in the air, not for direct soil contact or duct pulling. For underground use, choose cables like YJV22 or YJLV22.
How does it compare to JKLGYJ cable?
The key difference is the reinforcement:
  • JKLYJ: Standard insulated aerial cable with non-metallic strength members
  • JKLGYJ: Contains integrated steel reinforcement that provides high tensile strength for long spans without needing a separate messenger wire
What international standards does it comply with?
Designed to meet international standards for aerial insulated cables, including:
  • International: IEC 60502 (construction) and IEC 61089 (round wire concentric lay overhead conductors)
  • Regional: Many countries have national standards (e.g., AREI in Belgium, ER G29 in the UK)
Why choose JKLYJ for a distribution project?
Choose JKLYJ when you need to modernize or build a safer, more reliable overhead distribution line, especially in areas with:
  • High public safety requirements
  • Dense vegetation
  • Demands for reduced outage frequency and maintenance costs
It represents a significant upgrade in safety and reliability over traditional bare wire systems.
What is the packaging method for this type of cable?
Iron-Wood Cable Reel Packaging JKLYJ ABC Cable 10KV Steel Wire Armour Construction XLPE Armoured Cable
