11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
Specifications
Brand Name :
JinHong
Model Number :
YJV
Place of Origin :
Anhui China
MOQ :
100m
Price :
1.55-6.15
Payment Terms :
T/T
Delivery Time :
10-15days
Application :
Underground,Industrial,Construction,overhead,Power Station
Jacket :
PVC,Non,no jacket,PVC or XLPE,PVC/PE
Insulation material :
XLPE,PVC,Rubber,XLPE(XLPO),xlpe or pvc
Conductor material :
Copper,Aluminum,steel core aluminum strand,copper/aluminium,tin plated
Type :
Low Voltage,Medium Voltage,High Voltage,Insulated,Rigid/Flexible round
Standard :
IEC60502,IEC,BS,UL,JIS
Color :
Black,Red,blue,brown,Requirement
Product name :
Medium Voltage Power Cable,Fire Resistant 4core LV Armoured Electrical Cable XLPE Copper Cable,XLPE PVC insulated PVC sheathed 4 core copper power cable,steel tape armoured cable,Aerial Bundled Cable
Conductor :
Copper,Alulminum,Class 2 annealed copper strands,Cu / Al,strand
Insulation :
XLPE,XLPE PE PVC,PVC,PE,XLPE/PE/PVC
Rated voltage :
0.6/1KV,3.6~35kv,8.7/10,3.6/6.6,6/10
Voltage :
0.6/1KV,low voltage,medium voltage,300/500V,450/750V
Core :
1 Core,5 core,duplex/triplex/quadruplex,3,Single
Sheath :
PVC,ZR-PVC,LSOH,Non-sheath,PE
Packing :
Wooden Drum,optional,Wooden-steel Drum
Conductor type :
Stranded,copper
Name :
11KV SWA FIRE RETARDANT CABLE,welding cable,JKLGYJ 1KV overhead power cables
Armour :
Steel wire or Aluminum wire armor,Steel tape armour,STA/SWA/ATA/AWA,or unarmored
Item :
XLPE Copper Cable,Medium voltage XLPE cable
Description
High Voltage Single Core Copper Conductor Cable YJV XLPE Insulated Cable
YJV is an XLPE Insulated PVC Sheathed Power Cable with copper conductors, designed for fixed installations in power distribution networks, industrial plants, and building services.
Cable Designation Breakdown
  • YJ: XLPE (Cross-Linked Polyethylene) Insulation
  • V: PVC (Polyvinyl Chloride) Sheath
Primary Applications
  • Power Distribution: Underground networks, substations, and grid connections
  • Industrial Wiring: Motors, transformers, and heavy machinery in manufacturing plants
  • Building Services: Main power supply, lighting, and HVAC systems in commercial/residential buildings
  • Renewable Energy: Solar and wind power generation systems
Key Advantages
  • High Performance: XLPE insulation ensures efficient power transmission with minimal losses
  • Durability: Resists aging, abrasion, and environmental stress
  • Cost-Effective: Balanced price-to-performance ratio for diverse applications
  • Customization: Available in single-core/multicore designs, with copper/aluminum conductors, and optional armor/fire-resistant variants
YJV is a versatile and reliable cable for general power distribution. For harsh environments, consider armored (YJV22), fire-resistant (NH-YJV), or LSZH (WDZ-YJV) versions. Consult technical datasheets or contact our team for project-specific solutions.
Technical Specifications
Nominal Sectional Area (mm²) Insulation Thickness (mm) Sheath Thickness (mm) Approx. Diameter of Cable (mm)
3*1+1*2.5 0.7 1.5 13
3*6+1*4 0.7 1.5 14
3*10+1*6 0.7 1.5 16
3*16+1*10 0.7 1.5 18
3*25+1*16 0.9 2.0 22
3*35+1*16 0.9 2.0 24
3*50+1*25 1.0 2.0 28
3*70+1*35 1.1 2.0 31
3*95+1*50 1.1 2.0 36
3*120+1*70 1.2 2.5 40
3*150+1*70 1.4 2.5 44
3*185+1*95 1.6 3.0 48
3*240+1*120 1.7 3.0 53
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
Frequently Asked Questions
What does YJV cable stand for?
  • YJ: XLPE (Cross-Linked Polyethylene) Insulation
  • V: PVC (Polyvinyl Chloride) Sheath
YJV is a power cable with copper conductors, featuring XLPE insulation and a PVC sheath. It is one of the most widely used cables for fixed electrical installations globally.
What are the key advantages of XLPE insulation?
Compared to standard PVC insulation (as in VV cables), XLPE offers:
  • Higher Temperature Rating: Continuous operation at 90°C (vs. 70°C for PVC)
  • Higher Current Capacity: Can carry more current for the same conductor size
  • Better Overload & Short-Circuit Performance: Withstands up to 250°C under short-circuit conditions
  • Superior Aging Resistance: More durable over the long term

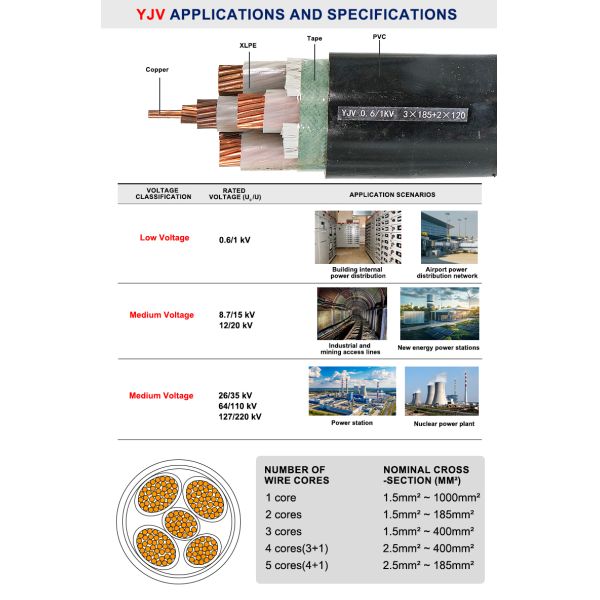

What are the common voltage ratings?
YJV cables are produced for various voltage levels:
  • Low Voltage (LV): 0.6/1 kV (Most common for building and plant distribution)
  • Medium Voltage (MV): 6/10 kV, 8.7/15 kV, 12/20 kV, 18/30 kV (For grid and primary distribution)
Where is YJV cable typically used?
It is the standard choice for fixed power installations in:
  • Industrial Plants: Wiring for machinery, motors, and transformers
  • Commercial & Residential Buildings: Main power supply, risers, and distribution circuits
  • Infrastructure: Subways, airports, power stations
  • Renewable Energy: Solar farms and wind power connections
Is YJV suitable for direct burial or outdoor use?
  • Direct Burial: Not recommended for the standard version. For direct burial, use the armored variant (YJV22) which has steel tape for mechanical protection
  • Outdoor Use: Yes, for fixed above-ground installations (e.g., on cable trays, conduits). Its PVC sheath provides basic weather resistance, but for prolonged UV exposure, additional protection is advised
Is YJV flame-retardant or fire-resistant?
Standard YJV has basic flame-retardant properties but is not classified as a flame-retardant (ZR) or fire-resistant (NH) cable. For enhanced safety, specific variants are used:
  • ZR-YJV: Flame-Retardant (inhibits fire spread)
  • NH-YJV: Fire-Resistant (maintains operation during fire)
  • WDZ-YJV: Low Smoke Zero Halogen (minimizes toxic fumes)
What are the main installation guidelines?
  • Bending Radius: Minimum 10x cable diameter (single-core) or 12x diameter (multi-core)
  • Installation Temperature: ≥ 0°C (to prevent sheath damage)
  • Support: Should be properly secured in trays, ladders, or with clamps
  • Grounding: Follow standard electrical codes for system grounding
What standards does YJV comply with?
YJV is manufactured to major international and national standards, including:
  • International: IEC 60502-1 (LV) & IEC 60502-2 (MV)
  • Europe: EN 50502
  • China: GB/T 12706
  • Other: Can be produced to BS (UK), VDE (Germany), ANSI/ICEA (USA) standards
11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard 11KV Single Core XLPE Cable YJV High Voltage Power Cable IEC60502 Standard
Service of JinHong Company
Over Productions Service:
JinHong has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
Quality Certification Services:
JinHong cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
Profession Customer Service:
JinHong provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
Delivery And Shipping Services:
While we at JinHong provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
Packaging of JinHong:
JinHong cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
