Specifications
Brand Name :
JinHong
Model Number :
WDZ-KYJRP
Place of Origin :
Anhui China
MOQ :
100m
Price :
12.88-20.99 USD/m
Payment Terms :
T/T
Delivery Time :
15-20days
Sheathmaterial :
PVC or PE
Flameretardant :
Yes
Armour :
Steel Wire Armored
Insulation :
Cross Linked Polyethylene
Standardcompliance :
IEC 60502, BS 5467
Productname :
XLPE Cable
Conductorstranding :
Stranded or Solid
Conductormaterial :
Copper or Aluminum
Voltagerating :
Up to 33kV
Installationmethod :
Underground, duct, or direct burial
Jacket :
PVC
Outerdiameter :
Varies by size, typically 10mm to 100mm
Armored :
Steel Tape Armored
Grade :
Austentic and duplex steel
Operatingfrequency :
50Hz / 60Hz
Description

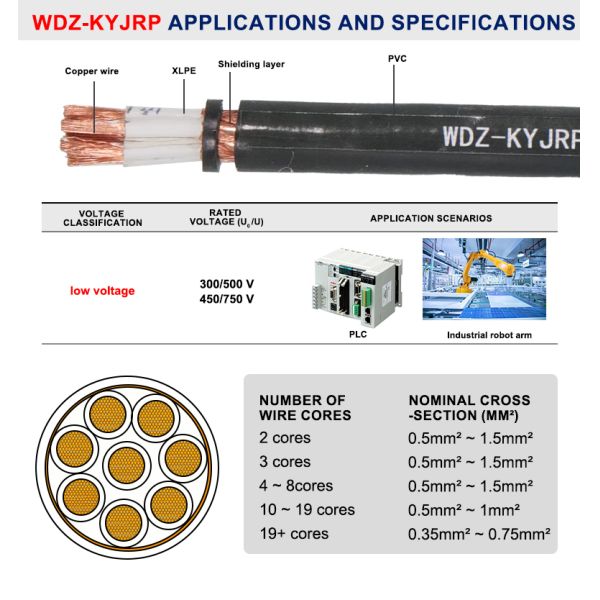

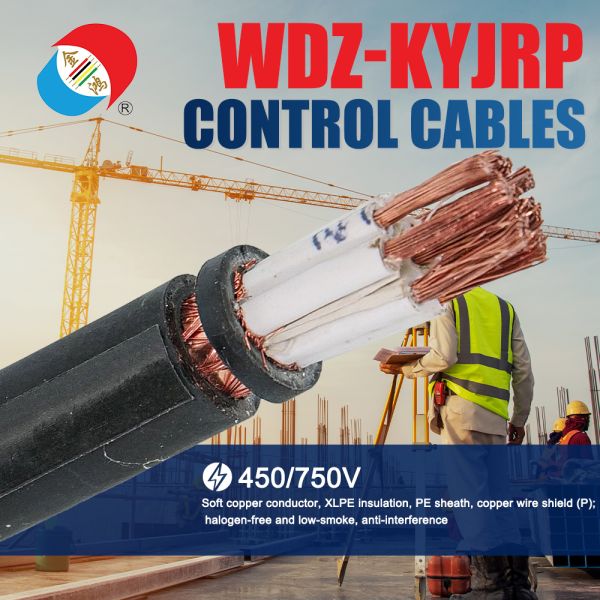

WDZ-KYJRP Low Smoke Zero Halogen Shielded Flexible Control Cable
Model Decoding - Control-Grade, Shielded, Flexible Design
Core Components and Benefits
Code Component Meaning & Advantage
WDZ Low Smoke Zero Halogen Flame Retardant Smoke density ≤50%, releases no toxic halogen gases. Complies with GB/T 17650 for Class B flame retardancy. Fire-safe with low corrosiveness, preventing the spread of fire.
K Control Cable Specifically designed for low-voltage signal transmission (0.45/0.75kV). Transmission precision optimized for control circuits, supporting PLCs, sensors, and servo systems.
YJ Cross-linked Polyethylene (XLPE) Insulation Resilient at 90°C, resistant to -40°C. Insulation resistance ≥100MΩ*km, signal attenuation ≤0.5dB/100m. No degradation over long-term use, perfect for critical control environments.
Y Polyethylene (PE) Sheath Eco-friendly, non-toxic sheath with UV and weather resistance. No cracking at -40°C, ensuring reliability in harsh environments. Compliant with RoHS and environmental standards.
R Flexible Conductor Structure Multi-strand fine copper wire (≥19 strands) ensures flexibility and durability. Minimum bending radius of 10x cable diameter for tight installations and ease of routing.
P Copper Wire Braid Shield ≥ 80% braid density for effective shielding against electromagnetic interference (EMI) and radio-frequency interference (RFI). Provides stable signal transmission with an SNR ≥60dB, reducing noise and distortion.
Key Differences vs. WDZ-KYJYRP:
WDZ-KYJRP is optimized for low-voltage control signals with high-density shielding and flexibility, while WDZ-YJY is more generalized for power transmission and less focused on anti-interference.
XLPE Flexible Shielded Control Cable With Low Smoke Zero Halogen
5 Key Selling Points - Designed for Low-Voltage Control Applications
1) High-Density Shielding - No Signal Distortion, Maximum Protection
  • Copper wire braid shield with ≥ 80% coverage, reducing interference from industrial equipment, inverters, and RF devices
  • Shielding attenuation of ≥ 40 dB, preventing electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • Signal-to-noise ratio (SNR) of ≥ 60 dB, ensuring minimal signal loss (≤ 0.1% error) in control circuits.
  • Grounding resistance ≤ 1 Ω provides protection against electrostatic surges and electrical faults, critical for systems like industrial automation and rail transit.
2) Flexible Structure - Ideal for Confined Spaces & Easier Installations
  • Multi-strand fine copper conductor for flexibility and durability.
  • Minimum bending radius: 10 × cable diameter, ideal for tight spaces and complex routing like narrow conduits, cable trays, and high-rise installations.
  • 15% -20% lighter than rigid control cables, allowing single-person installation and reducing labor costs by up to 40%.
  • Can withstand 10⁴ bending cycles without breaking, making it suitable for control systems requiring frequent maintenance or adjustments (e.g., machine tools, robotics).
3) Low Smoke Zero Halogen Flame Retardant - Safety and Eco-Friendly Operation
  • Self-extinguishing with no flame spread or dripping to prevent fire escalation, meeting control circuit fire safety standards.
  • Releases no toxic halogen gases and produces extremely low smoke density (visibility ≥ 50m), making it ideal for enclosed spaces like control cabinets and equipment rooms.
  • Non-toxic and odorless, suitable for clean environments, ensuring zero secondary harm during fires.
  • Protects sensitive equipment from fire-related damage with no corrosive residues post-combustion.
4) Control-Grade Transmission - Accurate, Stable Signals for Critical Systems
  • XLPE insulation: Withstands 90°C and -40°C, offering low dielectric loss (≤ 0.003) and minimal signal attenuation (≤ 0.5dB/100m).
  • Ensures long-distance control signal transmission, supporting distances of up to 500m without repeaters.

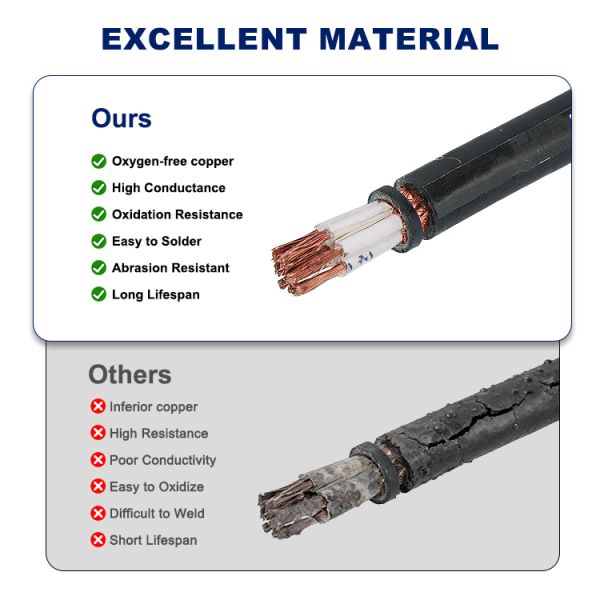

  • Oxygen-free copper conductors with 99.99% IACS conductivity provide low resistance and minimal loss, improving overall transmission efficiency and system performance.
  • PE sheath guarantees long service life (over 30 years in indoor applications).
5) High Compliance & Wide Applicability - Ready for Complex Low-Voltage Control Scenarios
WDZ-KYJRP meets the highest standards for various low-voltage control applications:
  • Industrial Control: Meets GB/T 9330 for plastic insulated control cables. Perfect for automation systems, sensor wiring, servo motors, and PLC networks.
  • Intelligent Building Systems: Complies with GB 50314 for building automation, security systems, and fire control circuits.
  • Equipment Integration: Essential for machine tools, robotics, elevator controls, and rail transit systems, where high interference rejection and flexible installation are crucial.
Supports conduit, cable tray, wall-embedded, and overhead installations --suitable for 90% of all low-voltage control wiring needs.

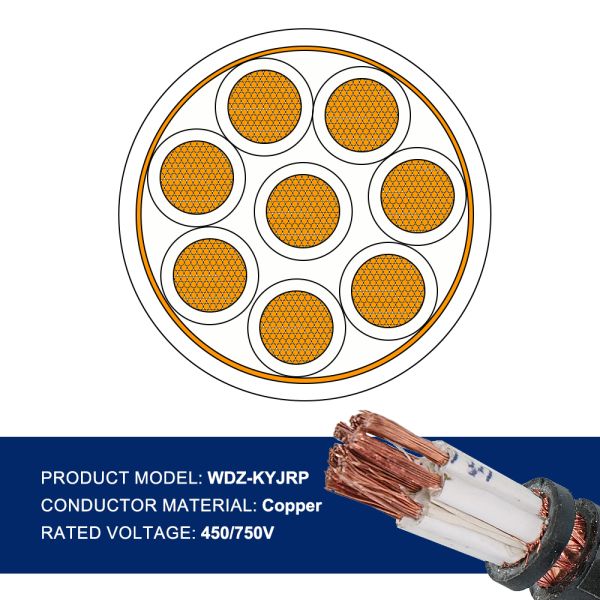

Core Technical Specifications - Common Configurations
Cores × Section (mm²) Conductor Structure (Strands × Dia.) XLPE Insulation (mm) PE Sheath (mm) Copper Shield (Braid Density) Approx. Outer Diameter (mm) Rated Voltage (kV) Approx. Weight (kg/km) 20°C Conductor Resistance (Ω/km) Shielding Attenuation (dB)
4 × 1.0 19 × 0.25 0.8 1.2 ≥80% 8.3 0.45/0.75 115 ≤ 18.1 ≥ 40
6 × 1.0 19 × 0.25 0.8 1.3 ≥80% 9.6 0.45/0.75 160 ≤ 18.1 ≥ 40
8 × 1.5 19 × 0.31 0.8 1.4 ≥80% 11.0 0.45/0.75 230 ≤ 12.1 ≥ 40
12 × 1.5 19 × 0.31 0.8 1.5 ≥80% 13.2 0.45/0.75 320 ≤ 12.1 ≥ 40
16 × 2.5 49 × 0.25 1.0 1.6 ≥80% 16.5 0.45/0.75 500 ≤ 7.41 ≥ 40
24 × 1.0 19 × 0.25 0.8 1.6 ≥80% 15.0 0.45/0.75 380 ≤ 18.1 ≥ 40
Customization options:
• 2 -61 cores, 0.75 -6 mm² cross-section range
• Flame-retardant class options (WDZ-A / WDZ-B / WDZ-C)
• Shield types: spiral shield (P1), double-layer shield (P2)
• Upgradable to explosion-proof (Exd II BT4) versions for specialized environments
• PE sheath upgrade to Low Smoke Zero Halogen Polyolefin
XLPE Flexible Shielded Control Cable With Low Smoke Zero Halogen XLPE Flexible Shielded Control Cable With Low Smoke Zero Halogen
Precise Application Scenarios
  • ✅ Industrial Automation Lines
    PLC control, sensor signal transmission, and servo system wiring, with protection against industrial noise and EMI.
  • ✅ Smart Building Low-Voltage Systems
    Control circuits for automation, security, and fire systems in modern buildings, with a focus on signal integrity.
  • ✅ Machine Tools / Robotics
    For internal equipment wiring where flexibility and durability are essential, suitable for frequent bending.
  • ✅ Rail Transit Control Circuits
    Subway and high-speed rail signal control, wiring for braking systems with high interference immunity.
  • ✅ Data Centers / Equipment Rooms
    Precision equipment control and monitoring systems with high durability, low smoke, and non-toxic operation.
  • ✅ Hospitals / Operating Room Equipment
    Low-smoke, halogen-free cabling for medical equipment control circuits in clean environments.
  • ✅ New Energy Equipment
    Wiring for PV/wind power control systems that require weather resistance and anti-interference.
  • ✅ Commercial & Office Complexes
    Wiring for smart lighting, HVAC control, and security systems in commercial environments.
FAQ - WDZ-KYJRP for Low-Voltage Control
Q1: What makes WDZ-KYJRP better for low-voltage control than regular power cables?
A: WDZ-KYJRP is shielded, flexible, and signal-optimized, designed specifically to handle control circuit demands, where signal clarity and anti-interference are crucial, unlike general power cables.
Q2: Can WDZ-KYJRP be used for outdoor or high-temperature environments?
A: Yes. While designed for indoor control circuits, WDZ-KYJRP can be used in protected outdoor areas and can withstand temperature ranges from -40°C to 90°C. For extreme conditions, customization for more rugged environments is possible.
Q3: How does WDZ-KYJRP handle electromagnetic interference (EMI)?
A: The ≥ 80% copper braid shield effectively isolates EMI and RFI, ensuring stable and high-precision signal transmission, which is critical for PLC systems, sensors, and servo circuits in noisy industrial environments.
Q4: How long does WDZ-KYJRP last?
A: In indoor environments, WDZ-KYJRP typically lasts 30+ years, thanks to its robust XLPE insulation and PE sheath. In outdoor environments, it can last for up to 8 years with no degradation in performance.
Q5: Can I install WDZ-KYJRP myself, or do I need special tools?
A: The flexible design and lightweight structure mean that one person can install WDZ-KYJRP with no special tools required. Its reduced bending radius makes it easier to handle and route through narrow spaces.
