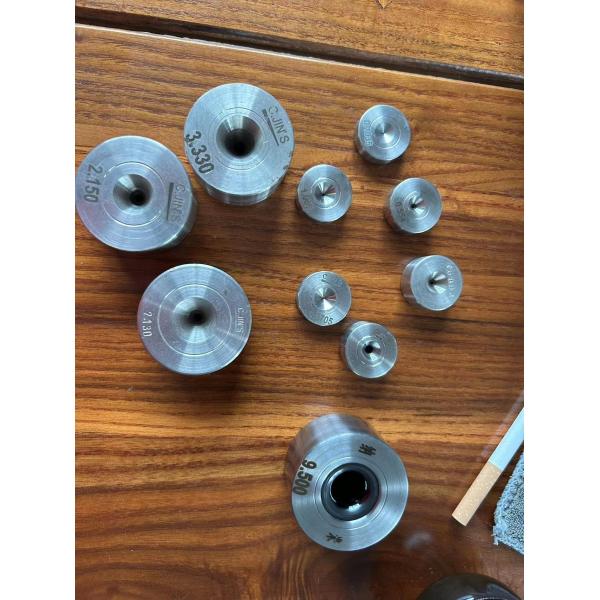

High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
Specifications
Brand Name :
Hongli
Model Number :
drawing machine
Certification :
CE
Place of Origin :
Dongguan
MOQ :
1 pcs
Price :
100$-350$
Payment Terms :
T/T, L/C
Supply Ability :
10,000pcs set per month
Delivery Time :
20-30 days
Packaging Details :
wooden packing
Brand :
Hongli
Name :
PCD Drawing Dies
type :
Polycrystalline diamond die
material :
Steel
Features :
High Speed , Energy Saving
Description

High Quality Chinese Brand Wire Drawing Die For Wire Drawing Machine

Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations. PCD dies provide uniform hardness and extended wear resistance in all directions.
Polycrystalline diamond (PCD) is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes,polycrystalline diamond high temperature pressing and alloy bond sintering.
There are three types of polycrystalline diamond embryo:non reinforced ring type,reinforced ring type and heat stable setting type.
Polycrystalline diamond wire drawing die is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.
It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.

TYPE DIE SIZE(mm) TOLERANCE CASE DIMENSION
PCD DIE D6 ±0.002 D30X15
PCD DIE D24 ±0.002 D42X30
PCD DIE D36 ±0.002 D70X35


1. Applycation: used in wire drawing machine for drawing wire
2. Material: Steel
3. Coating: CVD nano diamondd coating
4. Precision:
4.1 Die core: Rough drawing (ΦΦ2.2mm-Φ5.5mm): -0.02mm-+0.01mm (the last one is ±0.01mm)
Fine drawing (Φ0.8mm-Φ2.2mm): ±0.01mm
4.2 Die case: -0.05mm
4.3 Roundness error: ≤0.005
4.4 Compression angle: Φ1.2mm or less: 10°±2°
Φ1.2mm-Φ2.0mm: 12°±2°
Φ2.0mm-Φ5.0mm: 14°±2°
