Specifications
Brand Name :
Hongli
Model Number :
drawing machine
Certification :
CE
Place of Origin :
Dongguan
MOQ :
1 pcs
Price :
40$-100$
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
5-15 days
Packaging Details :
wooden packing
Name :
Copper Wire Drawing Dies
material :
PCD
Surface Treatment :
Polished
Brand :
Hongli
Features :
High Speed, Energy Saving
Description

Tungsten Carbide Steel Wire Drawing Dies For Drawing Machine

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country.

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF

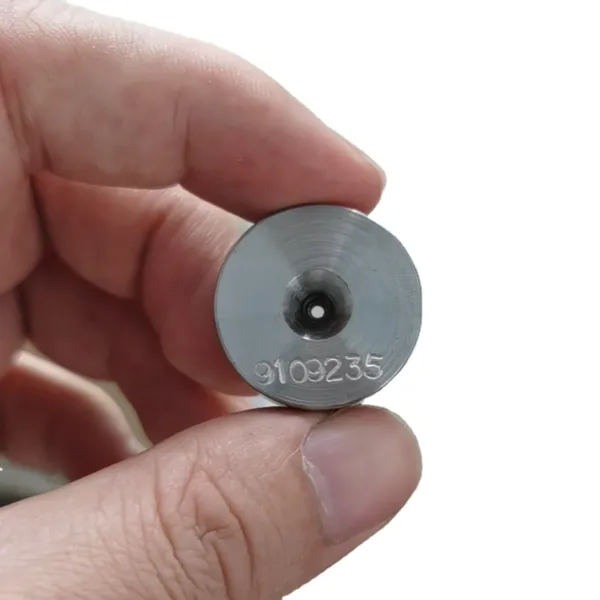

Polished Copper Wire Drawing Dies / Tungsten Carbide Drawing Dies For Drawing Machine
Type Die Size (mm) Standard Tolerance(um) Standard cases
A B
PCD Dies D6 0.1-0.15 25 7
D12 0.1-0.8 30 15
D15 0.5-1.5 30 15
D18 1-2.3 30 15
D21 1.6-3.4 30 15
D24 2.6-4.6 42 20
Polished Copper Wire Drawing Dies / Tungsten Carbide Drawing Dies For Drawing Machine
typical application

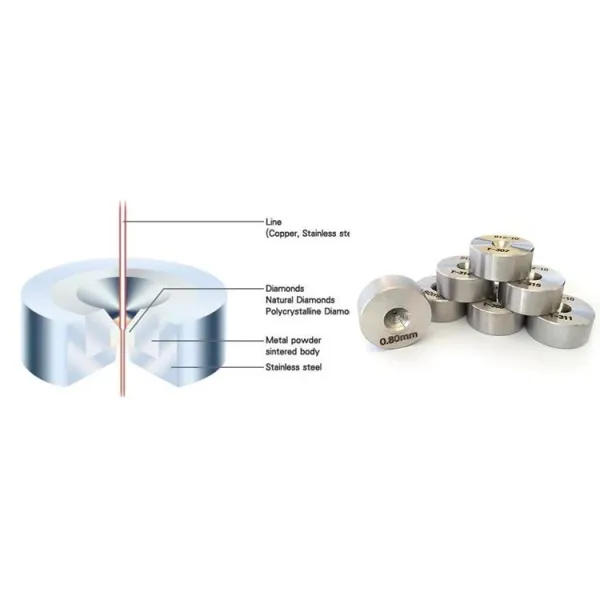

The free arrangement of diamond particles ensures that the polycrystalline diamond abrasives still have good roundness after use and have a longer service life than natural diamonds and synthetic single crystal diamond

Mold category
We offer RBD meduim fine drawing machines and dies
We provide our customers with a complete set of matching equipment Replacement, blending mold
Characteristics
1 Suitable for dry drawing and wet drawing
2 Expectable wire surface quality
3 The free arrangement of the diamond crystals allows the wire to ensure a perfect roundness even in the case of severe mold wear
4 The size of the embryo is guaranteed to achieve the maximum reaming size expected
Polished Copper Wire Drawing Dies / Tungsten Carbide Drawing Dies For Drawing MachinePolished Copper Wire Drawing Dies / Tungsten Carbide Drawing Dies For Drawing MachinePolished Copper Wire Drawing Dies / Tungsten Carbide Drawing Dies For Drawing Machine
