Specifications
Brand Name :
Hongli
Model Number :
630mm
Certification :
CE,ISO
Place of Origin :
Dongguan
MOQ :
1 set
Price :
22,00$-30,000$
Payment Terms :
T/T, L/C
Supply Ability :
50 set per month
Delivery Time :
20-30 days
Packaging Details :
wooden packing
Name :
Copper Tapping Machine
cable size :
1-6mm
rotation speed :
2500RPM-3000RPM
tapping spitch :
5～20mm
motor brand :
siemens
inverter brand :
Yaskawa
production speed :
5～30m/min
Size :
630
motor :
1HP
Description

High Quality Vertical 630 Three Layers Tapping Wrapping Machine For Fire Cable 1.5, 2.5,4,6

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
Technical Parameter:
Type 630mm 500mm
Core specification AWG32-AWG20
Wrapping material Aluminum foil wrap, myra wrap, cotton paper wrap, transparent wrap, mica wrap
Max rpm Max2000rpm/Max28m/min
Power Adjust the speed by 1HP motor driver, taping drum and directs motor linkage
Wrapping tension Taping tension keep constant from start to end
Take-up tension Take-up tension keep constant from start to end
Traversing type Shaft arrange take-up, no damage in produces, the size could be established by yourself

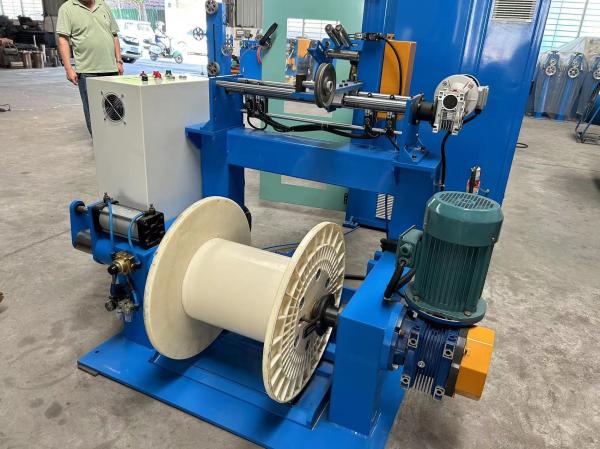

Pay-off type Linear slide rail+ slider pay-off tension type motive heavy, double-frequency speed, break protection function
Shaft of take-up 300-500general shaft
Shaft of pay-off 400-630 general shaft
Machine weight 1500KG 1300KG

Application:

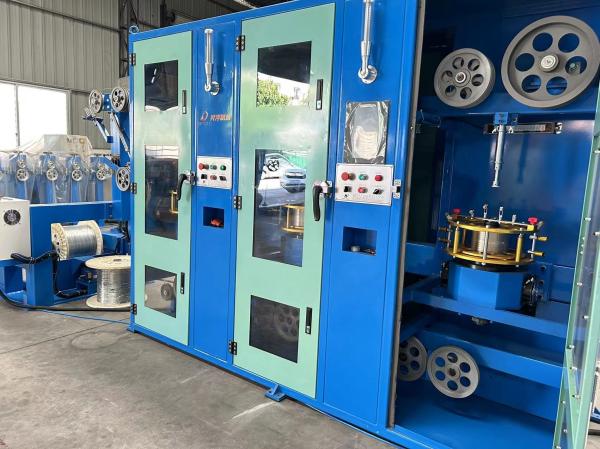

This machine is a vertical double-layer paper wrapping machine, which rotates the wrapping tape (paper tape, aluminum foil, etc.) through the rotary plate and wraps it on the core wire, with a single wrapping head. It is mainly used for wrapping mica tape of insulated wire core such as wire, force cable, control cable and optical cable. Refractory wire and cable are mainly used in power plants, airports, ships, high-rise buildings, subways, underground streets and entertainment places. Popularly sold in Turkey, Pakistan, egypt, sudan,algeria .
