Specifications
Brand Name :
Hongli
Model Number :
630mm
Certification :
CE,ISO
Place of Origin :
Dongguan
MOQ :
1 set
Price :
25,00$-35,000$
Payment Terms :
T/T, L/C
Supply Ability :
50 set per month
Delivery Time :
20-30 days
Packaging Details :
wooden packing
Size :
630
cable size :
1-6mm
rotation speed :
2500RPM-3000RPM
tapping spitch :
5～20mm
motor brand :
siemens
inverter brand :
Yaskawa
production speed :
5～30m/min
motor :
1HP
Name :
Copper Tapping Machine
Description

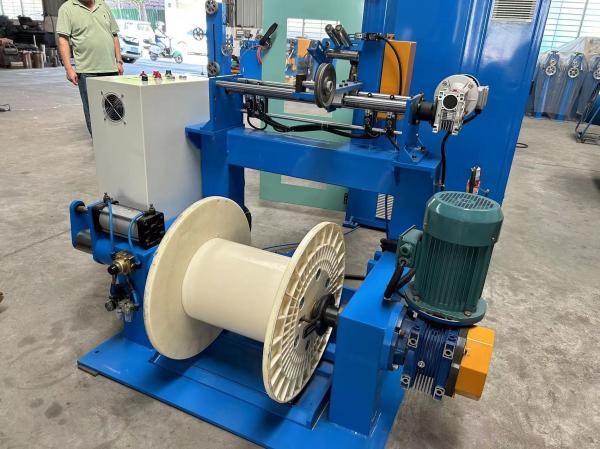

Factory Customized High Speed Horizontal Auto Cable Wire Tapping Wrapping Machine

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
Technical Parameter
Type 630mm 500mm
Core specification AWG32-AWG20
Wrapping material Aluminum foil wrap, myra wrap, cotton paper wrap, transparent wrap, mica wrap
Max rpm Max2000rpm/Max28m/min
Power Adjust the speed by 1HP motor driver, taping drum and directs motor linkage
Wrapping tension Taping tension keep constant from start to end
Take-up tension Take-up tension keep constant from start to end
Traversing type Shaft arrange take-up, no damage in produces, the size could be established by yourself
Pay-off type Linear slide rail+ slider pay-off tension type motive heavy, double-frequency speed, break protection function
Shaft of take-up 300-500general shaft
Shaft of pay-off 400-630 general shaft
Machine weight 1500KG 1300KG
