HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding
Specifications
Brand Name :
Bing Wire & Cable
Model Number :
HE-SPC
Certification :
CE/RoHS
Place of Origin :
Shanghai, China
MOQ :
1000 meters
Price :
$6.13-19.98 / meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000M 7work days
Delivery Time :
10-15 work days
Conductor :
electrolytic silver plated annealed copper
Insulation Material :
Wrapped and sealed FP/ Polyimide composited tape
Rated Voltage :
600V
Rated Temperature :
-90°C~+200°C
Application :
Mili tary Aircraft Wiring/Extreme Engine Bay/Helicopter Avionics/Motor Coil Winding
Color :
Customized Color
Packing :
As requirement
Description
Product Description

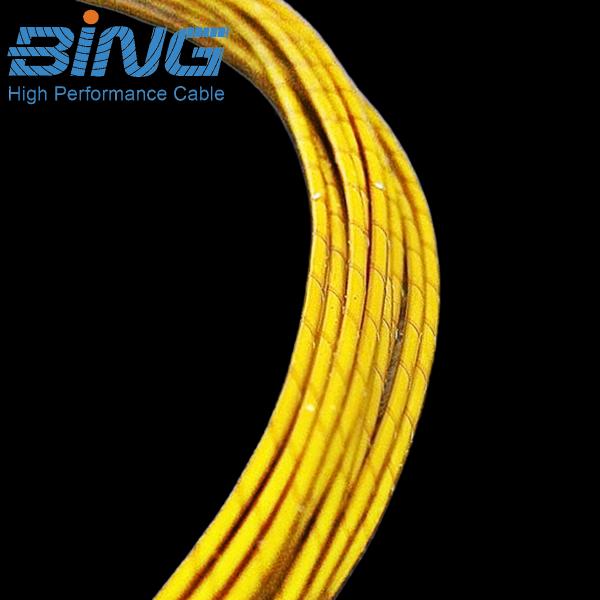

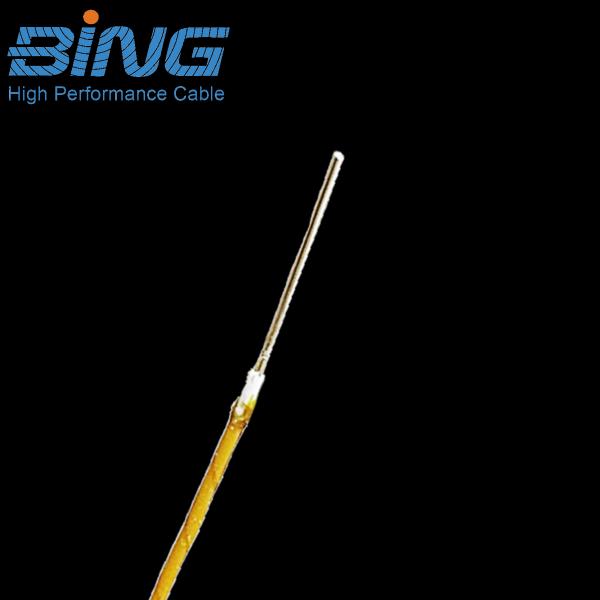

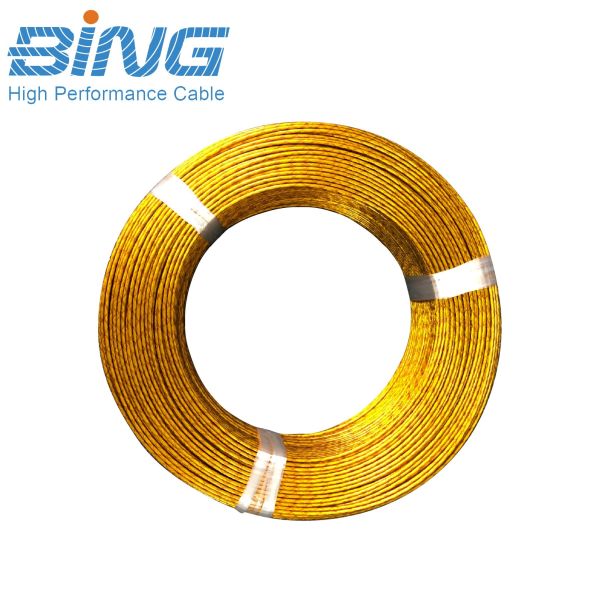

Our HE-SPC polyimide taped wire is built for aerospace applications. With a thin 0.35mm polyimide composited tape insulation and silver-plated copper conductor, it delivers reliable performance from -90°C to +200°C. Ideal for use in aircraft, satellites, and other high-temperature environments.

  • Conductor: electrolytic silver plated annealed copper
  • Insulation Detail: Wrapped and sealed FP/ Polyimide composited tape
  • Operating Temperature: -90~+200℃.
  • Rated Voltage: AC 600V.
  • Insulation Thickness: 0.35 mm.
  • Standard Colors: Black, brown, red, orange, yellow, green, blue, purple, gray, white (custom colors available).
  • Multi-core Cables: Twisted pair, three-core stranded, four-core stranded, etc. (with/without sheath, with/without shielding optional).
Key Features
  • High-Conductivity Silver-Plated Copper: Available in both annealed electrolytic copper and high-strength copper alloy variants
  • Superior Corrosion Resistance: Silver plating ensures excellent oxidation resistance and maintains conductivity at high temperatures
  • Flame Retardant: Low flame propagation properties meeting stringent aerospace requirements
  • Arc Resistance: Superior resistance to electrical arcing
  • Chemical Resistance: Excellent resistance to aviation fuels, hydraulic fluids, and lubricants
  • Optimized for High-Frequency Applications: Enhanced skin effect performance for signal integrity
Applications
  • Medical Devices: Specialized equipment requiring biocompatible materials
  • Commercial & Mili tary Aircraft: Avionics, instrumentation, navigation, and aerospace communication systems.
  • Engine Compartments: Ignition, control, and monitoring systems in high-temperature, high-vibration environments.
  • Aerospace application: Power and signal transmission near rotor systems.
  • Missiles: Lightweight, high-reliability internal wiring for launch and flight operations.
Why Choose Our Polymide Taped Wire?

Our HE-SPC Polyimide Taped wire is designed for the harshest environments and extreme conditions. This silver plated copper wire may be used in commercial or mili tary aircraft where wire applications must adhere to strict restrictions and specifications. As a professional Electrolytic silver-plated copper cable, our polyimide taped wire meets the strictest requirements for small dimensions, high-temperature resistance, low weight, and flame retardant, making it the top choice for Aerospace communication cable and mission-critical aerospace wiring.

Technical Specifications
PART NUMBER AWG CONSTRUCTION
(mm)		 CONDUCTOR
NOMNAL
(mm)		 NOMNAL AREA
( mm2)		 OMNAL RESISTANCE
( Ω / 100m)		 INSULATED WIRE
NOMNAL
(mm)		 APPROX. WEIGHT
( g/m)
HE 2219 22 19/ 0.160 0.800 0.38 4.7 1.45 5.61
HE 2001 20 1/ 0.812 0.812 0.52 3.3 1.46 6.62
HE 2019 20 19/ 0.203 1.009 0.62 2.9 1.65 7.91
HE 1819 18 19/ 0.254 1.269 0.96 1.9 1.93 12.0
HE 1619 16 19/ 0.300 1.500 1.34 1.3 2.27 16.0
HE 1419 14 19/ 0.360 1.803 1.94 0.92 2.57 22.0
HE 1219 12 19/ 0.455 2.273 3.10 0.58 3.05 34.0

Product Detail

HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil WindingHE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding

HE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil WindingHE-SPC Polyimide Taped Wire 600V for High Temp Motor Coil Winding

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
