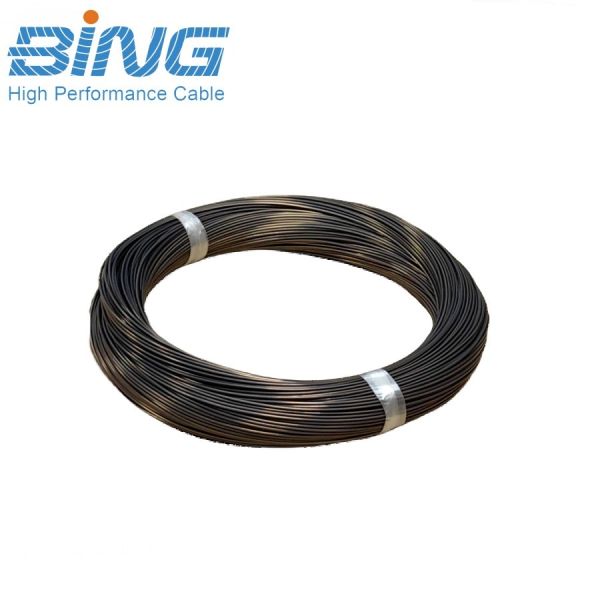

M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use
Specifications
Model Number :
M16878/11
Brand Name :
Bing Wire & Cable
Place of Origin :
Shanghai, China
MOQ :
1000 meters
Price :
$1.99-2.79 / meter
Certification :
CE/RoHS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000M 7 work days
Delivery Time :
10-15 work days
Conductor Material :
Silver-plated copper
Conductor Size :
32-10 AWG
Insulation Material :
FEP
Temperature :
-60°C~+200°C
Rated voltage :
600 V
Application :
Building, Industrial, Underground, Electric Appliance
Description
Product Description
M16878/11 Hookup Wire is a U.S. standard silver-plated FEP extruded insulation wire compliant with NEMA HP-4 TYPE K, rated for 600V AC and a long-term operating temperature of -60℃ to +200℃ designed for high-temperature, high-voltage applications. Engineered to meet stringent mili tary and industrial standards, this wire delivers exceptional performance in environments where reliability, durability, and resistance to extreme conditions are critical.
Key Features
  • Silver-plated copper: Excellent conductivity even after prolonged high-temperature aging; silver’s oxide is still conductive, unlike copper oxide, ensuring consistent performance.
  • Low Friction Surface:The naturally slippery FEP surface facilitates easy pulling through conduits and harnesses, reducing installation time and labor costs.
  • High Dielectric Strength: Minimum 0.01" (0.254mm) medium-wall FEP for enhanced dielectric strength and voltage withstand.
  • Superior Chemical & Environmental Resistance: Inert to most chemicals, self-extinguishing, and stable against UV, oxidation, and moisture.
  • Flame Retardance: FEP does not support combustion; it will not propagate flame and self-extinguishes when the ignition source is removed. It meets UL flame test requirements
  • Customizable Options: Available in a variety of colors (black, brown, red, orange, yellow, green, blue, purple, gray, white) and dual-color combinations to meet specific identification and installation requirements.
Application
  • General High-Temperature Electronics: Industrial control panels, power supplies, and motor windings
  • Cost-Sensitive Instrumentation: Precision gauges, analytical equipment, and medical devices with moderate voltage requirements.
  • Space-Constrained Installations: Compact electronic enclosures and lightweight equipment
  • Industrial Processing Systems: Chemical plants, automotive manufacturing, and HVAC systems
Why Choose Our M16878 Hookup Wire?

When you choose our M16878/11 FEP-insulated wire, you’re selecting a cost-effective, high-performance solution that strikes the perfect balance between durability and affordability. Unlike the premium PTFE-insulated M16878/5, our M16878/11 leverages medium-wall FEP insulation to deliver reliable fluoropolymer performance—including resistance to high temperatures, chemicals, and environmental stress—at a lower cost, making it ideal for projects where 1000V heavy-wall PTFE is unnecessary. Every spool is precision-extruded to ensure uniform insulation coverage and consistent 600V performance, fully compliant with MIL-W-16878/11 and NEMA HP-4 Type K standards, backed by complete material traceability and test reports. We also offer flexible customization, from custom cut lengths to color coding, and our technical team can help you determine whether M16878/11 (for cost-efficient 600V applications) or M16878/5 (for extreme 1000V environments) is the right fit for your project, ensuring you get optimal performance without overinvesting.

Specification

Part Number

Mil Spec
Designation

Conductor

Insulation Diameter

Maximum resistance
at 20°C ohm/km

AWG

Stranding

Diameter

Inches(mm)

Min. Inches(mm)

Max. Inches(mm)

M16878/11-32-1

M16878/11 BAA-X

32

 1/32

.008 (.20)

.025 (.64)

.033 (.84)

554

M16878/11-32-7

M16878/11 BAB-X

32

 7/40

.009 (.23)

.026 (.66)

.034 (.86)

567

M16878/11-30-1

M16878/11 BBA-X

30

 1/30

.010 (.254)

.026 (.66)

.034 (.86)

348

M16878/11-30-7

M16878/11 BBB-X

30

 7/38

.012 (.31)

.028 (.71)

.036 (.91)

329

M16878/11-30-19

M16878/11 BBG-X

30

 19/42

.012 (.31)

.028 (.71)

.036 (.91)

315

M16878/11-28-1

M16878/11 BCA-X

28

 1/28

.013 (.33)

.029 (.74)

.037 (.94)

223

M16878/11-28-7

M16878/11 BCB-X

28

 7/36

.015 (.38)

.031 (.79)

.039 (.99)

210

M16878/11-28-19

M16878/11 BCE-X

28

 19/40

.015 (.38)

.031 (.79)

.039 (.99)

207

M16878/11-26-1

M16878/11 BDA-X

26

 1/26

.016 (.41)

.032 (.81)

.040 (1.02)

138

M16878/11-26-7

M16878/11 BDB-X

26

 7/34

.019 (.48)

.035 (.89)

.043 (1.09)

131

M16878/11-26-19

M16878/11 BDE-X

26

 19/38

.019 (.48)

.035 (.89)

.043 (1.09)

123

M16878/11-24-1

M16878/11 BEA-X

24

 1/24

.020 (.51)

.036 (.91)

.044 (1.12)

94

M16878/11-24-7

M16878/11 BEB-X

24

 7/32

.024 (.61)

.040 (1.02)

.048 (1.22)

90

M16878/11-24-19

M16878/11 BEE-X

24

 19/36

.024 (.61)

.040 (1.02)

.048 (1.22)

86

M16878/11-22-1

M16878/11 BFA-X

22

 1/22

.025 (.64)

.041 (1.04)

.049 (1.24)

55

M16878/11-22-7

M16878/11 BFB-X

22

 7/30

.030 (.76)

.046 (1.17)

.054 (1.37)

52

M16878/11-22-19

M16878/11 BFE-X

22

 19/34

.030 (.76)

.046 (1.17)

.054 (1.37)

49

M16878/11-20-1

M16878/11 BGA-X

20

 1/20

.032 (.81)

.048 (1.22)

.056 (1.42)

34

M16878/11-20-7

M16878/11 BGB-X

20

 7/28

.038 (.97)

.054 (1.37)

.062 (1.57)

33

M16878/11-20-19

M16878/11 BGE-X

20

 19/32

.038 (.97)

.054 (1.37)

.062 (1.57)

30

M16878/11-18-1

M16878/11 BHA-X

18

 1/18

.040 (1.02)

.056 (1.42)

.066 (1.68)

22

M16878/11-18-7

M16878/11 BHB-X

18

 7/26

.048 (1.22)

.064 (1.63)

.074 (1.88)

21

M16878/11-18-19

M16878/11 BHE-X

18

 19/30

.047 (1.19)

.064 (1.63)

 .074 (1.88)

20

M16878/11-16-19

M16878/11 BJE-X

16

 19/29

.053 (1.35)

.073 (1.85)

.087 (2.21)

15

M16878/11-14-19

M16878/11 BKE-X

14

 19/27

.067 (1.70)

.088 (2.24)

.102 (2.59)

10

M16878/11-12-19

M16878/11 BLE-X

12

 19/25

.084 (2.13)

.107 (2.72)

.121 (3.07)

6

M16878/11-10-37

 M16878/11 BMG-X 10 37/26 .108(2.74)

.127 (3.23)

.141 (3.58)

 4
Product Detail

M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building UseM16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use

M16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building UseM16878/11 Hookup Wire Silver Plated Copper 600V for Industrial and Building Use

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
