M16878/6 Hookup Wire High Temp 250V PTFE Insulated Wires for Industrial Automation Projects

Specifications

Model Number :

M16878/6

Brand Name :

Bing Wire & Cable

Place of Origin :

Shanghai, China

MOQ :

1000 meters

Price :

$0.89-1.46 / meter

Certification :

CE/RoHS

Payment Terms :

L/C,D/P,D/A,T/T,Western Union

Supply Ability :

2000m 7 work days

Delivery Time :

10-15 work days

Conductor Material :

Silver-plated copper

Conductor Size :

38-20 AWG

Insulation Material :

PTFE

Temperature :

-60°C~+200°C

Rated voltage :

250V

Application :

Building, Industrial, Underground, Electric Appliance

Description

Product Description

Baiyin M16878/6 is a general-purpose electronic hook-up wire, featuring a silver-plated copper conductor and a single layer of extruded polytetrafluoroethylene (PTFE) insulation. Compliant with U.S. standard NEMA HP-3 TYPE ET, this wire is rated for 250V AC and has a long-term operating temperature range of -60℃ to +200℃. The PTFE insulation ensures high reliability, along with excellent thermal stability, chemical resistance, and protection against abrasion and solvents.

Key Features

High Voltage & Temperature Rating: Operates reliably at 250V AC, with continuous use from -60°C to +200°C .It can withstand short-term exposure up to 300°C, making it ideal for systems exposed to current overloads or mechanical stress.
Thin-Wall PTFE Insulation: Minimum 0.006" (0.15mm) thick PTFE for enhanced dielectric strength and voltage withstand.
Superior Chemical & Environmental Resistance: Inert to most chemicals, non-flammable, self-extinguishing, and stable against UV, oxidation, and moisture.
Low Dielectric Loss: PTFE's low dielectric constant minimizes power loss and signal degradation, making it suitable for high-frequency and precision electronic applications.
Customizable Options: Available in a variety of colors (black, brown, red, orange, yellow, green, blue, purple, gray, white) and dual-color combinations to meet specific identification and installation requirements.

Application

Aerospace wiring harness mass production
Precision instrument manufacturing
High-density electronic equipment assembly
Mili tary electronics manufacturing
Portable high-temperature test equipment

Why Choose Our M16878 Hookup Wire?

MIL-W-16878/6 MIL Spec wire is intended for electrical or electronic use in protected applications where high temperature will be encountered. The MIL Spec wire has excellent resistance to thermal aging, solder iron damage, flame, and moisture. PTFE also resists solvents, greases, ozone and most other chemicals. These wires are easy to install due to their small size and slippery surface. PTFE has excellent, stable electrical characteristics with low power loss, making it ideal for high frequency applications.

Specification

Part Number	Mil Spec Designation	Conductor			Insulation Diameter		Maximum resistance at 20°C ohm/km
Part Number	Mil Spec Designation	AWG	Stranding	Diameter Inches(mm)	Min. Inches(mm)	Max. Inches(mm)	Maximum resistance at 20°C ohm/km
M16878/6-38-1	N/A	38	1/38	.004(.10)	.012(.31)	.018(.46)	2125
M16878/6-38-7	N/A	38	7/46	.005(.13)	.013(.33)	.019(.48)	1774
M16878/6-36-1	N/A	36	1/36	.005(.13)	.013(.33)	.019(.48)	1361
M16878/6-36-7	N/A	36	7/44	.006(.15)	.014(.36)	.020(.51)	1351
M16878/6-34-1	N/A	34	1/34	.006(.15)	.014(.36)	.020(.51)	886
M16878/6-34-7	N/A	34	7/42	.008(.20)	.015(.38)	.021(.53)	846
M16878/6-32-1	M16878/6 BAA-X	32	1/32	.008(.20)	.016(.41)	.022(.56)	554
M16878/6-32-7	M16878/6 BAB-X	32	7/40	.009(.23)	.020(.51)	.024(.61)	567
M16878/6-32-19	M16878/6 BAG-X	32	19/44	.010(.25)	.020(.51)	.024(.61)	502
M16878/6-30-1	M16878/6 BBA-X	30	1/30	.010(.254)	.020(.51)	.024(.61)	348
M16878/6-30-7	M16878/6 BBB-X	30	7/38	.012(.31)	.022(.56)	.026(.66)	329
M16878/6-30-19	M16878/6 BBG-X	30	19/42	.012(.31)	.022(.56)	.026(.66)	315
M16878/6-28-1	M16878/6 BCA-X	28	1/28	.013(.33)	.023(.58)	.027(.69)	223
M16878/6-28-7	M16878/6 BCB-X	28	7/36	.015(.38)	.025(.64)	.029(.74)	210
M16878/6-28-19	M16878/6 BCE-X	28	19/40	.015(.38)	.025(.64)	.029(.74)	207
M16878/6-26-1	M16878/6 BDA-X	26	1/26	.016(.41)	.026(.66)	.030(.76)	138
M16878/6-26-7	M16878/6 BDB-X	26	7/34	.019(.48)	.029(.74)	.033(.84)	131
M16878/6-26-19	M16878/6 BDE-X	26	19/38	.019(.48)	.029(.74)	.033(.84)	123
M16878/6-24-7	M16878/6 BEB-X	24	7/32	.024(.61)	.034(.86)	.038(.97)	90
M16878/6-24-19	M16878/6 BEE-X	24	19/36	.024(.61)	.034(.86)	.038(.97)	86
M16878/6-22-7	M16878/6 BFB-X	22	7/30	.030(.76)	.040(1.02)	.044(1.12)	52
M16878/6-22-19	M16878/6 BFE-X	22	19/34	.030(.76)	.040(1.02)	.044(1.12)	49
M16878/6-20-7	M16878/6 BGB-X	20	7/28	.038(.97)	.048(1.22)	.052(1.32)	33
M16878/6-20-19	M16878/6 BGE-X	20	19/32	.038(.97)	.048(1.22)	.052(1.32)	30

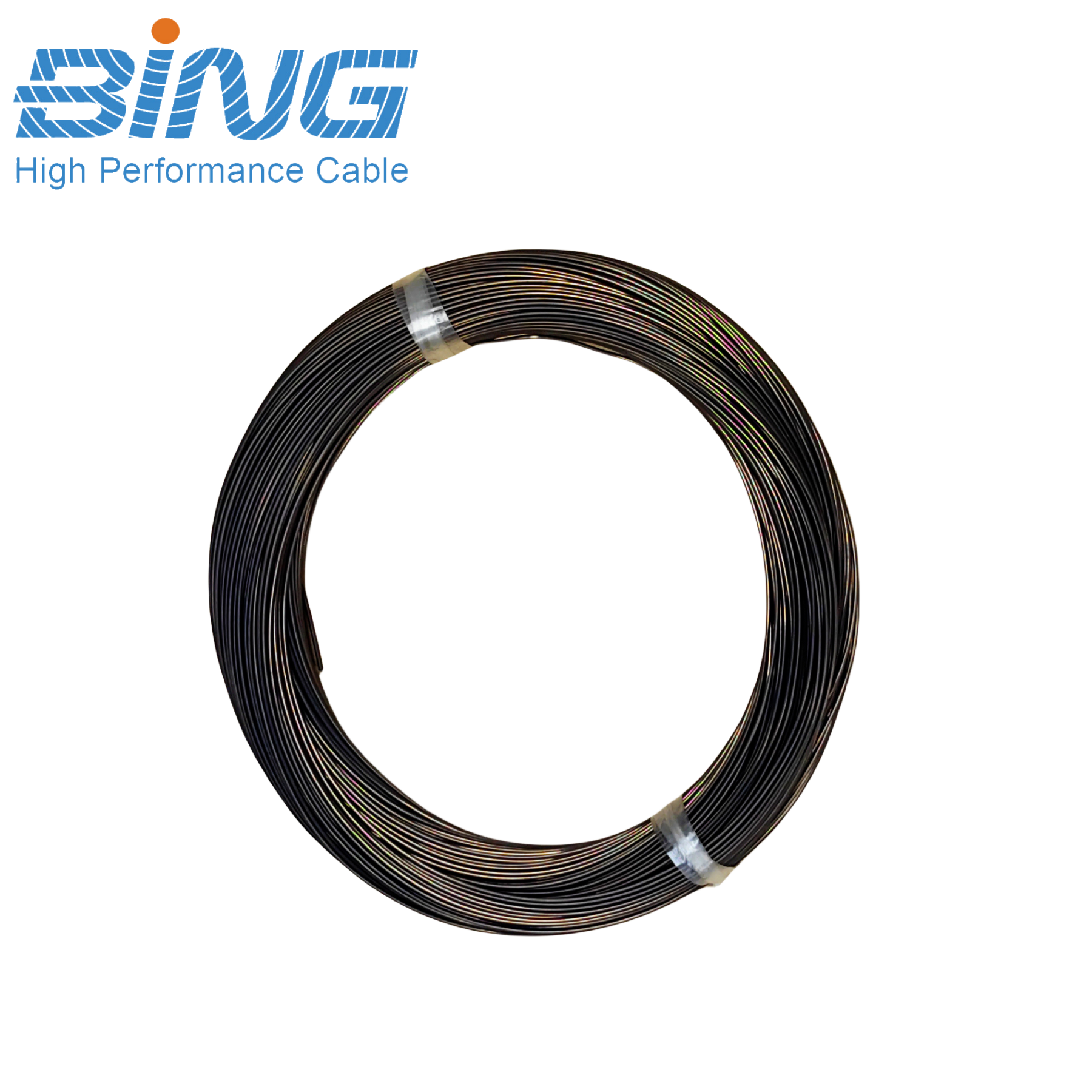

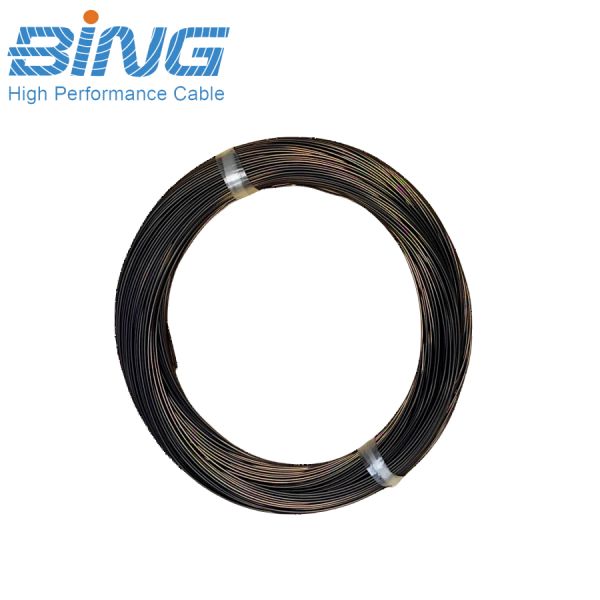

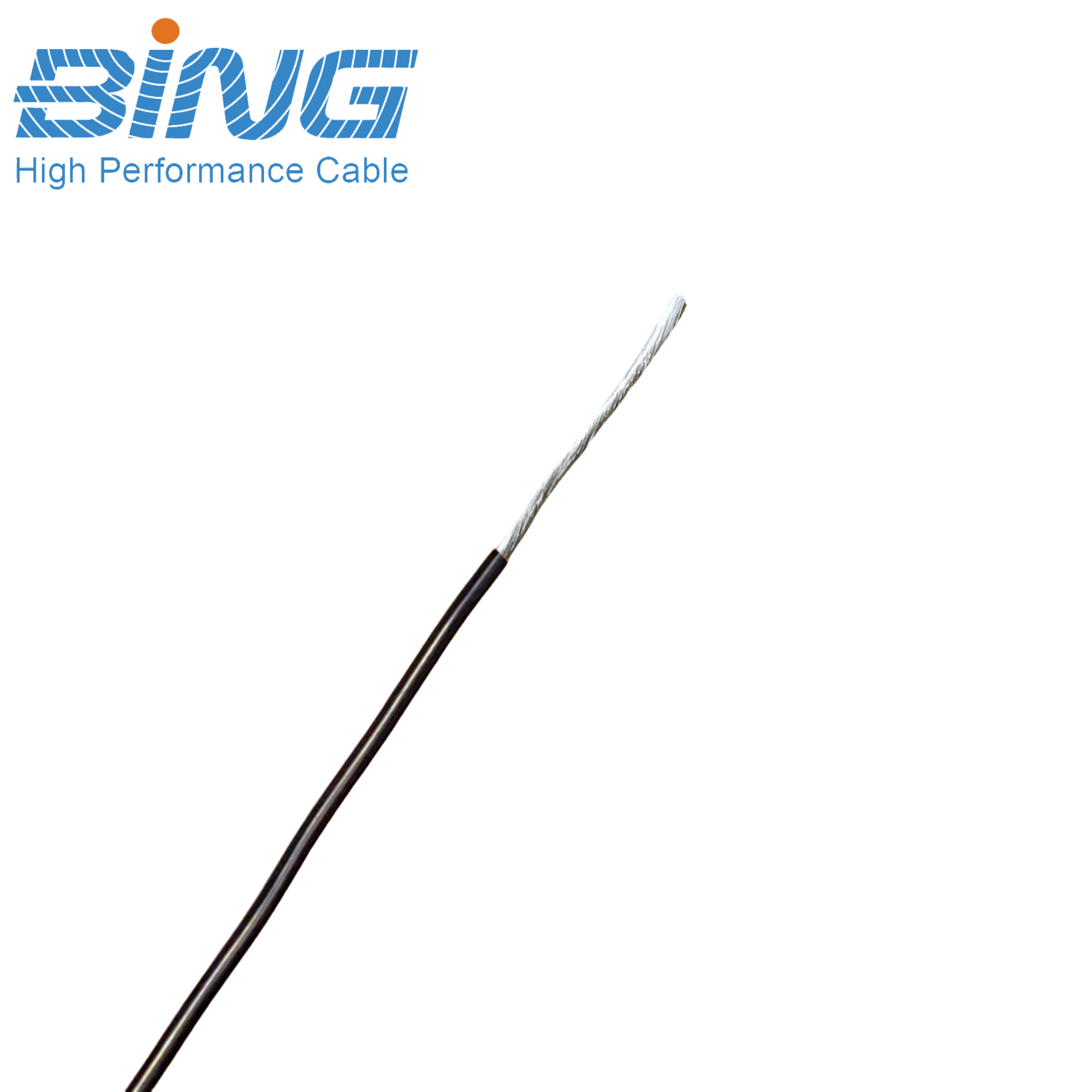

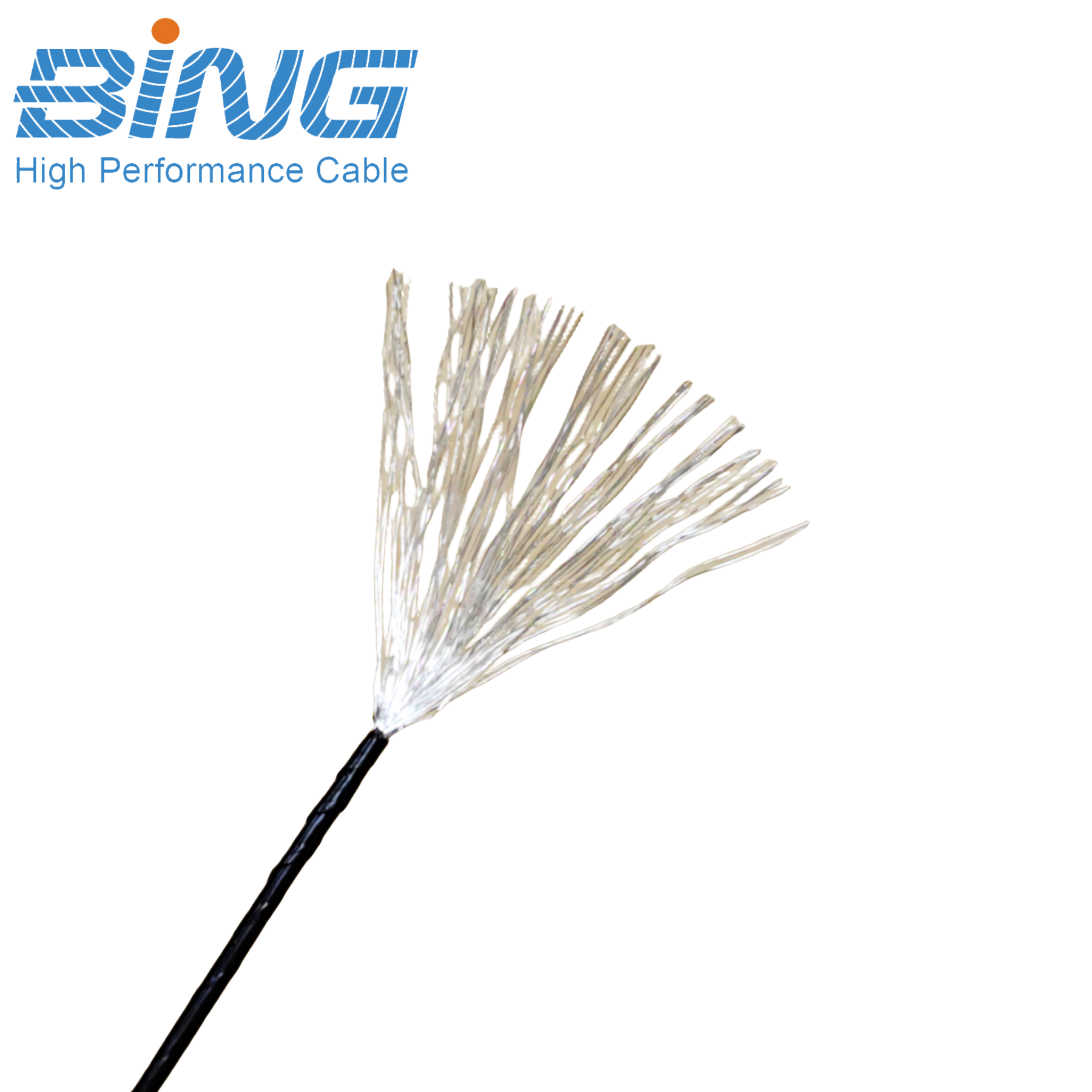

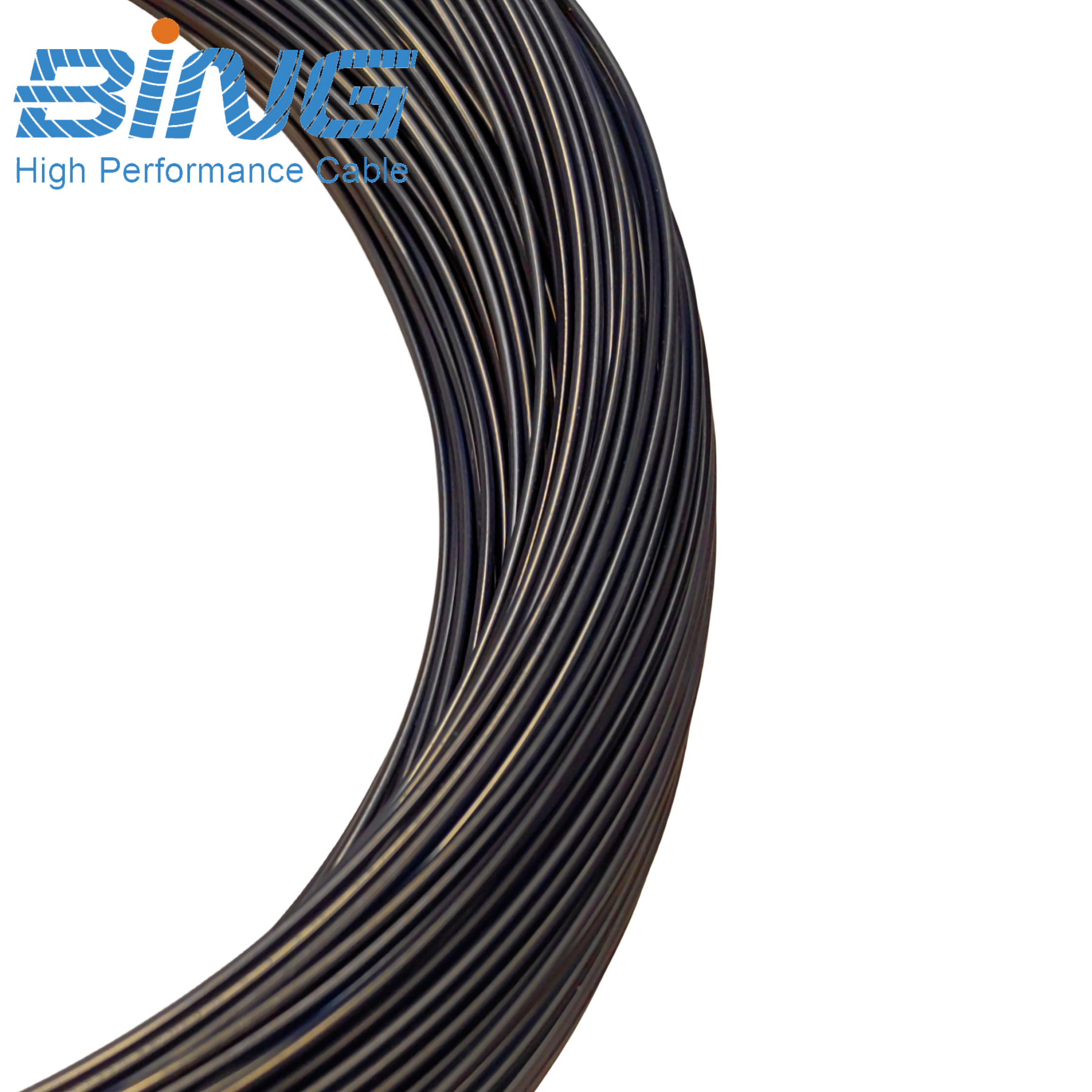

Product Detail

M16878/6 Hookup Wire High Temp 250V PTFE Insulated Wires for Industrial Automation Projects

FAQ

1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
