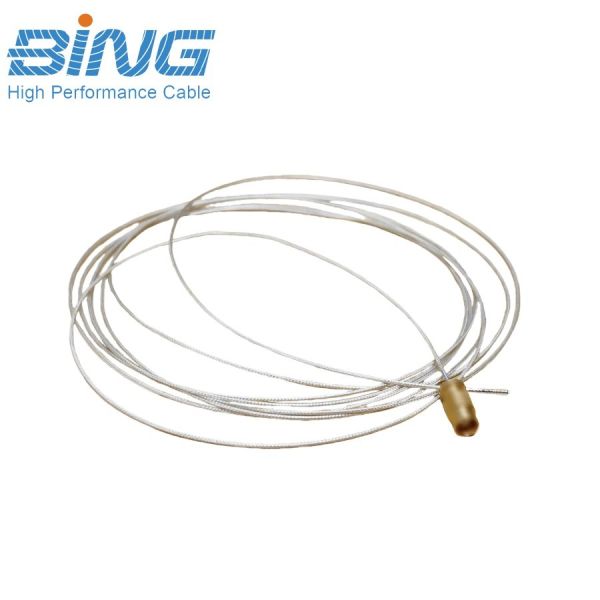

RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems
Specifications
Model Number :
RF1.13
Place of Origin :
Shanghai, China
Brand Name :
Bing Wire & Cable
MOQ :
1000 meters
Price :
$3.22-40.68 / meter
Certification :
CE/RoHS/ISO
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000m 7 work days
Delivery Time :
10-15 work days
Type :
Flexible minature coaxial cable
Inner Conductor :
silver plated copper
Insulation :
FEP/PFA
Shielding :
Sliver Plated copper
Jacket :
FEP/PFA
Impedance :
50 Ohm
Voltage Rated :
500V
Temperature Range :
-55°C ~ +200°C
Application :
heating
Color :
Customized Color
Packing :
As requirement
Description
Product Description

Our RF1.13mm ultra-fine coaxial cable is engineered to deliver exceptional signal integrity in compact electronic applications. Designed with precision FEP insulation and a robust construction, this cable operates reliably across a wide temperature range of -55°C to +180°C, while maintaining a consistent 50ohm impedance for optimal RF performance. Its ultra-thin profile makes it ideal for space-constrained designs where traditional bulkier cables cannot be used.

Key Features
  • Ultra-Compact Design (1.13mm OD): Its exceptionally thin profile is the primary advantage, enabling integration into high-density PCBs, slim smartphones, and compact devices.

  • Excellent High-Frequency Performance: With a characteristic impedance of 50 ± 2 Ohms, it reliably supports frequencies up to 6 GHz, covering all major wireless standards like Wi-Fi 6/6E, Bluetooth, GPS, and 4G/5G cellular bands.

  • Superior Flexibility: The RF1.13 miniature coax cable features a stranded silver-plated copper conductor and a flexible FEP insulation and jacket, allowing for a tight bend radius (as low as 4mm). This makes routing around components and through hinges in devices like laptops and routers simple and reliable.

  • Low Signal Loss (Attenuation): Despite its small size, RF1.13 miniature coax offers optimized attenuation for its class. For example, typical attenuation at 2.4 GHz is around 3.0 dB/m, and at 5.8 GHz, it is approximately 5.1 dB/m, ensuring signal integrity over short internal distances.

Applications

  • Industrial: Mini sensors, drone communications, collaborative robots

  • Medical: Portable ultrasound, wearable health monitors, dental equipment

  • Aerospace: Small satellite parts, lightweight avionics systems

Why Choose Our RF1.13 Miniature coaxial cable?
  1. Ultra-Slim (1.13mm): Fits into the tightest spaces where standard cables can't, enabling slim, compact device designs.
  2. High-Frequency Ready: Supports frequencies up to 6 GHz, covering Wi-Fi 6E, Bluetooth, GPS, and 5G cellular bands.
  3. Extreme Flexibility: Bend radius as low as 4mm for easy routing around components and through hinges.
  4. Reliable Shielding: Braided shield provides >90dB protection against internal EMI interference.
Specifications
Construction Specification
Inner Conductor Material Silver Plated Copper Wire
Construction(No./mm) 7/0.08
Nominal Diameter(mm) 0.24
Insulation Material FEP
Nominal Insulation Thickness(mm) 0.22
Min. Insulation Thickness(mm) 0.20
Nominal Diameter(mm) 0.68
Color True Color
Outer Conductor Material Silver Plated Copper Wire/Tinned Copper wire
Construction 0.05mm Wire Single Braided
Shielding Density(%) 95
Jacket Material FEP
Nominal Thickness(mm) 0.12
Min. Thickness(mm) 0.10
Nominal Outer Diameter(mm) 1.13
Color Red/Yellow/Blue/White/Black/Grey/Dual Color..ect
Electrical Characteristics
Impedance 50ohm
Insulation Voltage 500V
Mechanical Performance Parameters
Operating Temp.(℃) -55~+180℃
RoHS Certificate Compliant
Product Detail

RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication SystemsRF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems

RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication SystemsRF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication Systems

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
