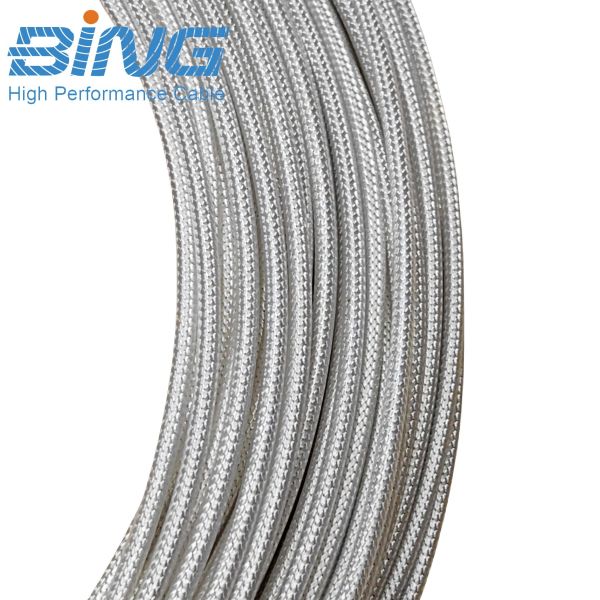

High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices
Specifications
Brand Name :
Bing Wire & Cable
Model Number :
RF0.64
Certification :
CE/RoHS/ISO
Place of Origin :
Shanghai, China
MOQ :
1000 meters
Price :
$3.22-40.68 / meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000m 7 work days
Delivery Time :
10-15 work days
Type :
Flexible Minature coaxial cable
Inner Conductor :
Silver plated copper
Insulation :
FEP/PFA
Shielding :
Sliver Plated copper
Jacket :
FEP/PFA
Impedance :
50Ohm
Voltage Rated :
500V
Temperature Range :
-55°C ~ +180°C
Application :
heating
Color :
Customized Color
Packing :
As requirement
Description
Product Description
RF0.64 is an ultra‑miniature, high‑flexibility 50Ω RF coaxial cable engineered for compact, high‑frequency signal transmission in space‑constrained, high‑reliability applications. With an outer diameter of just 0.64 mm, FEP dielectric, and robust shielding, it delivers stable performance up to 3 GHz and withstands extreme temperatures from ‑55°C to +180°C. As a professional RF 0.81 cable manufacturer, we provide cost-effective, high-quality solutions that meet global standards, tailored for devices where every millimeter of space matters.
Key Features
  • Wide temp range: ‑55°C to +180°C
  • Ultra‑small profile: 0.64 mm outer diameter for dense routing
  • FEP insulation & jacket for heat, chemical, and aging resistance
  • Silver‑plated stranded inner conductor for low resistance & flexibility
  • Stable 50Ω impedance for universal RF compatibility
  • Excellent flexibility: min. bend radius 1.2 mm
  • High frequency capability: up to 3000 MHz
  • Low loss & high shielding effectiveness
Applications
  • Compact RF modules & internal antenna connections
  • Mobile, wearable, and portable electronic devices
  • Medical endoscopes & miniature test instruments
  • High‑density PCB & confined‑space wiring
  • Microwave & wireless systems using micro RF connectors
Why Choose Our RF0.64 Miniature coaxial cable?
RF0.64 stands out as a premium flexible miniature coaxial cable designed for today’s most demanding high‑frequency and space‑limited applications. Its ultra‑small 0.64 mm outer diameter makes it ideal for dense integration and compact assembly, while the stable 50Ω characteristic impedance ensures universal compatibility with standard RF systems. With excellent flexibility and a minimum installation bend radius of just 1.2 mm, it supports tight routing and repeated bending without performance degradation. Engineered with FEP insulation and jacket, it delivers outstanding thermal stability across a wide temperature range from ‑55°C to +180°C, along with strong resistance to chemicals, aging, and harsh environments. The silver‑plated stranded inner conductor and tinned copper spiral outer conductor provide low resistance, reliable shielding, and consistent signal integrity up to 3000 MHz, making it a trusted solution for high‑reliability RF connections in consumer electronics, medical devices, test equipment, and microwave systems.
Specifications
PHYSICAL PROPERTIES

Material Diameter(mm)
1. Inner conductor Silver plated annealed copper stranded, 7/0.05 stranding 0.15
2. Insulation Extruded FEP, Nature color 0.40 +/- 0.02

3. Outer conductor		 Tin plated copper wire spiral , 0.05mm wire 0.52
4. Jacket Extruded FEP, Color( Upon to request ) 0.64 +/- 0.05
ELECTRICAL PROPERTIES
Conductor Resistance(ohm/km ) 1473 max
Nom. Capacitance Conductor to Shield(pF/m) 96.5
Nom. Characteristic Impedance(ohm) 50
Nom. Velocity of Propagation(％) 69.5%
Min. Bend Radius(Install)(mm) 1.2
Voltage Rating(VMS) 500
Max. Operating Frequency(MHz) 3000
Operating Temperature Rating(℃) -55～+ 180
Product Detail

High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking DevicesHigh Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices

High Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking DevicesHigh Frequency RF0.64 Miniature Coax Cables 50 Ohm for Communication and Networking Devices

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
