50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications
Specifications
Brand Name :
Bing Wire & Cable
Model Number :
HRF 155DS-LL
Certification :
ISO, RoHS
Place of Origin :
Shanghai, China
MOQ :
1000ft
Price :
$0.11-0.33 / ft
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000ft 7days
Delivery Time :
10-15 work days
Type :
Medical coaxial cable
Inner Conductor :
High Strength Silver plated copper alloy
Insulation :
Low density PTFE
Outer Conductor :
Copper Foil+ silver-plated wire braided
Jacket :
Clear FEP
Impedance :
50 Ohm
Voltage Rated :
1000V
Operating Temperature :
-55°C~+200℃
Description
Product Description

Our HRF155DS-LL Medical Coaxial Cable is a high-performance, ultra-miniature 50ohm RF coaxial cable from Baiyin Cable, engineered for precision signal transmission in space-constrained, high-reliability environments. With an ultra-slim outer diameter of just 1.55mm, this cable is designed to meet the demanding needs of medical devices, aerospace electronics, and industrial micro-systems where size, flexibility, and signal integrity are critical.

Key Features

  • Strong Inner Conductor – Made from silver-plated copper-clad steel, it resists breaking during medical procedures

  • Clear Outer Layer – Transparent jacket lets you inspect the cable before use

  • Flexible Design – Bend radius as small as 10 mm allows easy navigation through blood vessels

  • Enhanced Device Longevity – Medical-grade fluoropolymer materials withstand repeated sterilization cycles without degradation.

  • Immediate Quality Verification – Transparent FEP jacket allows clinicians to visually confirm cable integrity before each procedure

  • Heat Resistant – Works reliably from -55°C to +200°C, preventing device failure during high-power microwave ablation

  • Excellent Signal Transmission – Delivers microwave energy precisely with minimal loss

Applications
  • Leg Vein Ablation – The main use
  • Cancer Treatment – Tumor microwave ablation probes
  • Heart Procedures – Cardiac catheters
  • Surgical Tools – Laparoscopic instruments
  • Custom Devices – For medical equipment makers

Why Choose Our HRF155DS-LL Medical coaxial cable

The HRF155DS-LL stands out as a cost-effective, high-quality alternative to premium imported medical coaxial cables. It combines the miniaturization and performance required for cutting-edge applications with the reliability and compliance needed for regulated industries like healthcare and aerospace. Whether you are designing a new medical device or upgrading an industrial sensor, the HRF155DS-LL medical coax provides the perfect balance of size, performance, and value.

Specifications
Physical Properties
Item Material Diameters (mm)
Inner Conductor High Strength Silver plated cooper alloy 1/0.32
Insulation Low Density PTFE ----
Outer Conductor Copper Foil+ silvered wire braided 1.35
Jacket Clear FEP 1.55Max
Electrical Properties
Capacitance (pF/m) 86
Impedance (Ohms) 50
Velocity of Propagation (%) 75
Min. Bend Radius (mm) 10
Voltage Rating(VMS) 1000
Max Operating Frequency (MHz) 3000
Temperature Range (℃) -55~+200
Attenuation
Frequency (MHz) Attenuation (dB/m)
2450 1.750
6000 2.850

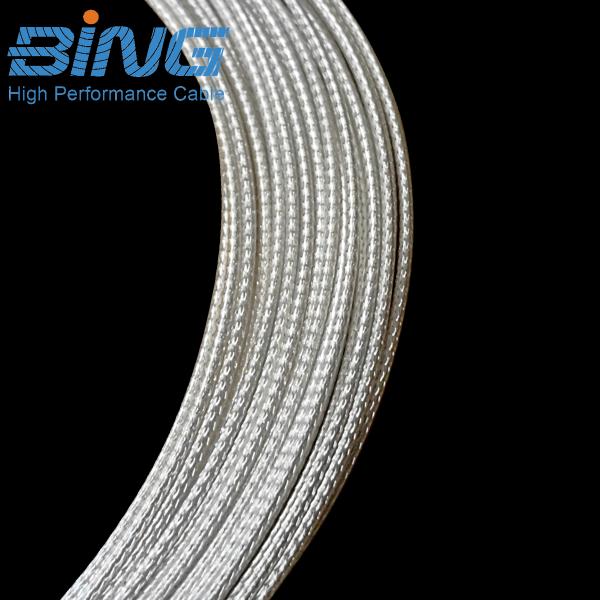

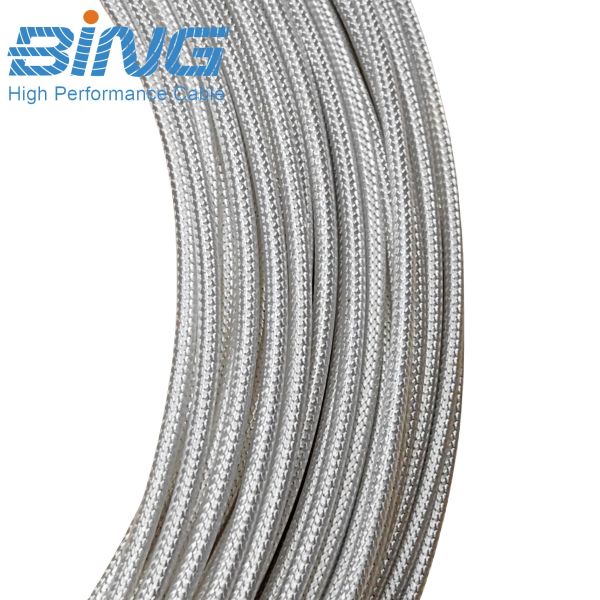

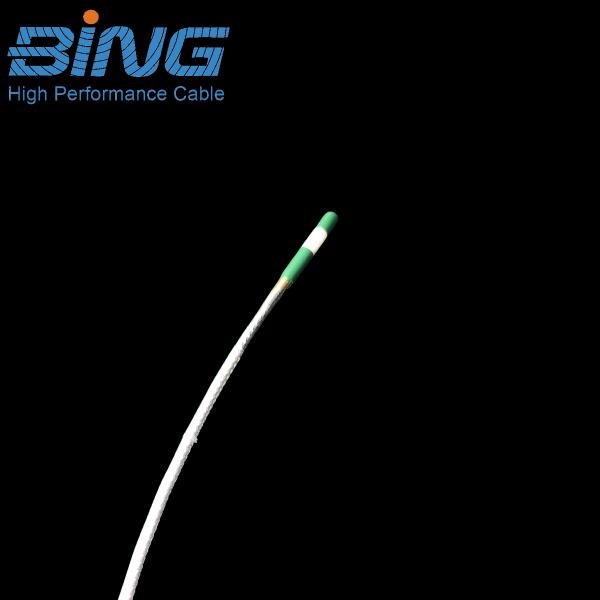

Product Detail

50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications

50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications50 Ohm HRF155DSLL 28 AWG Low Loss Wire Optimized for Electronic Applications

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
