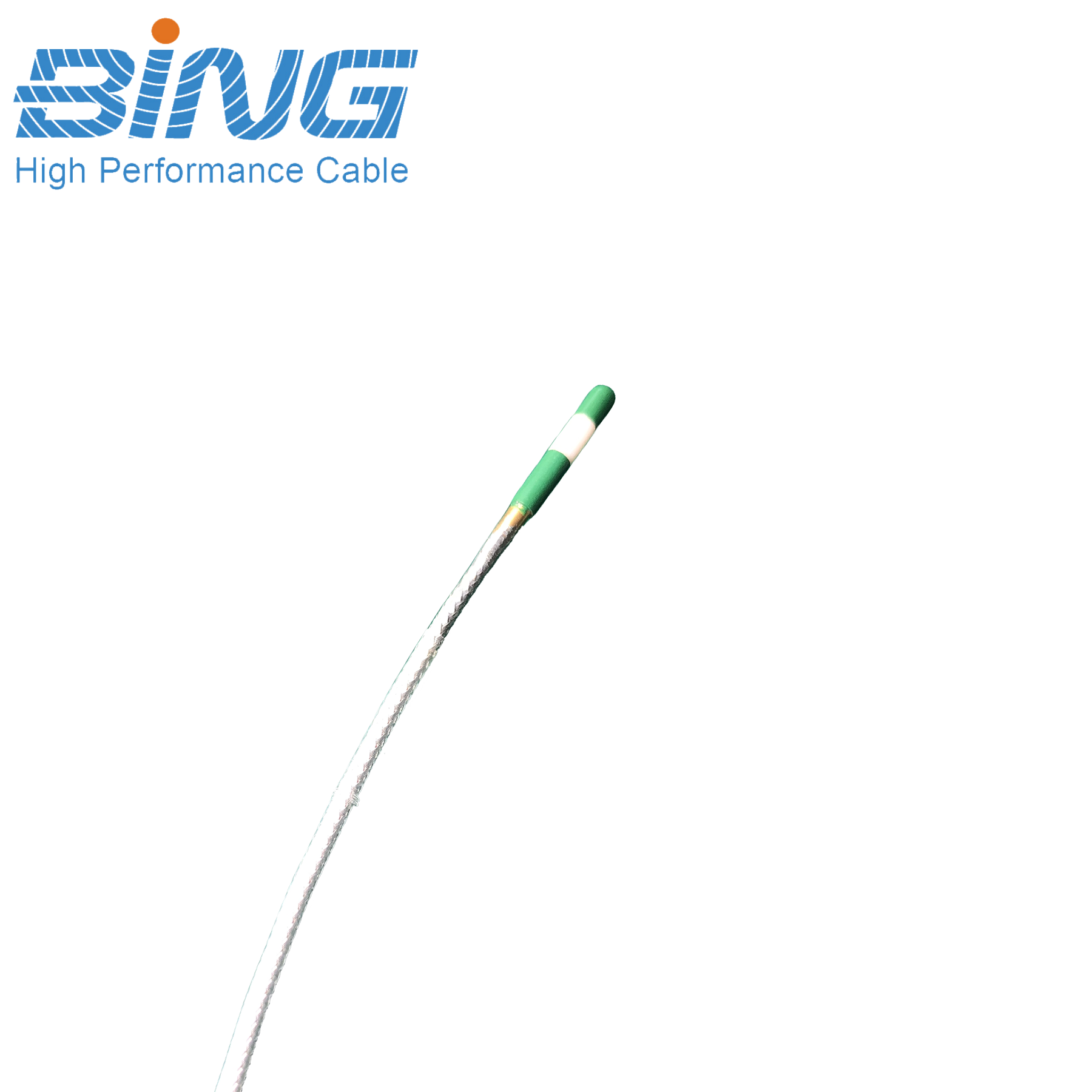

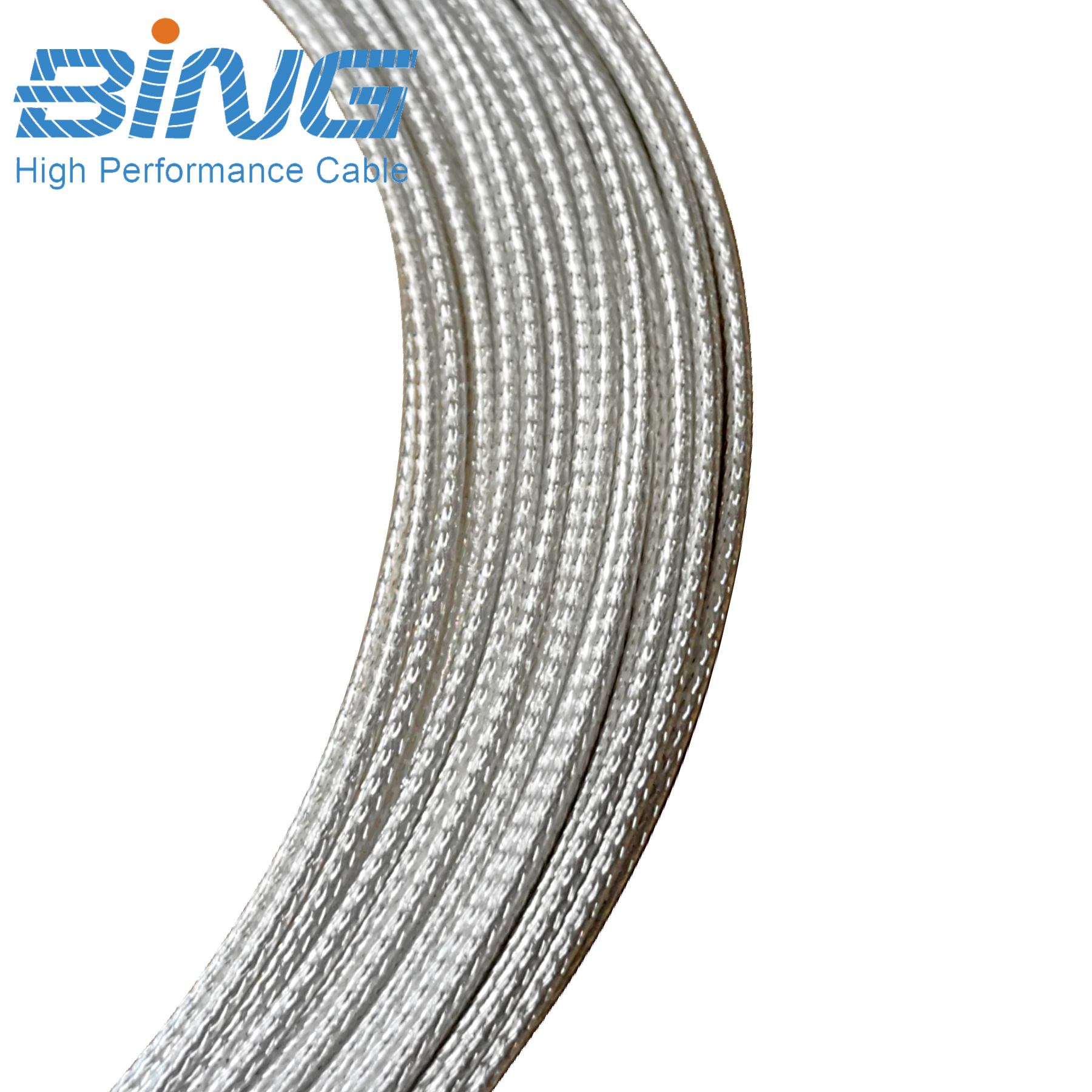

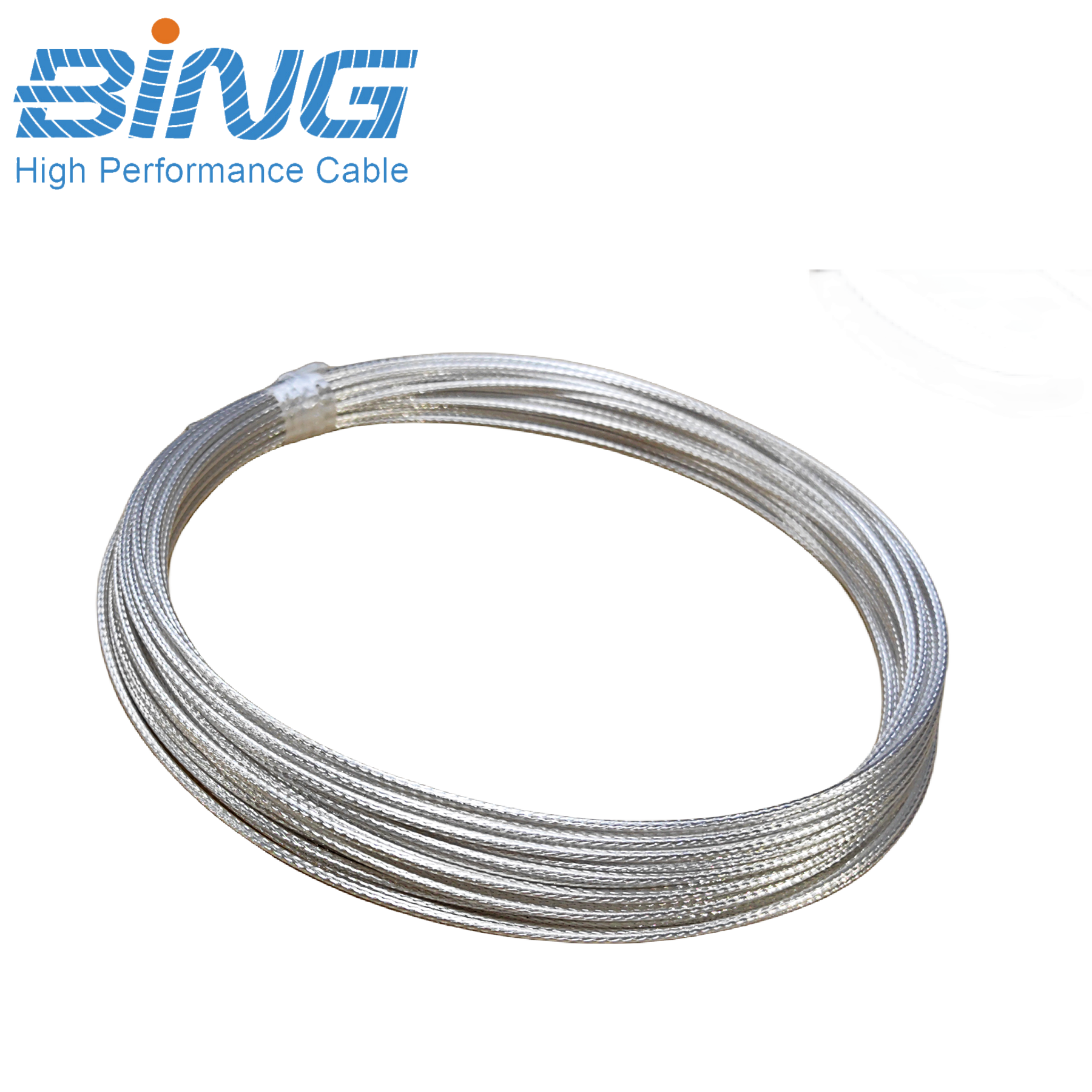

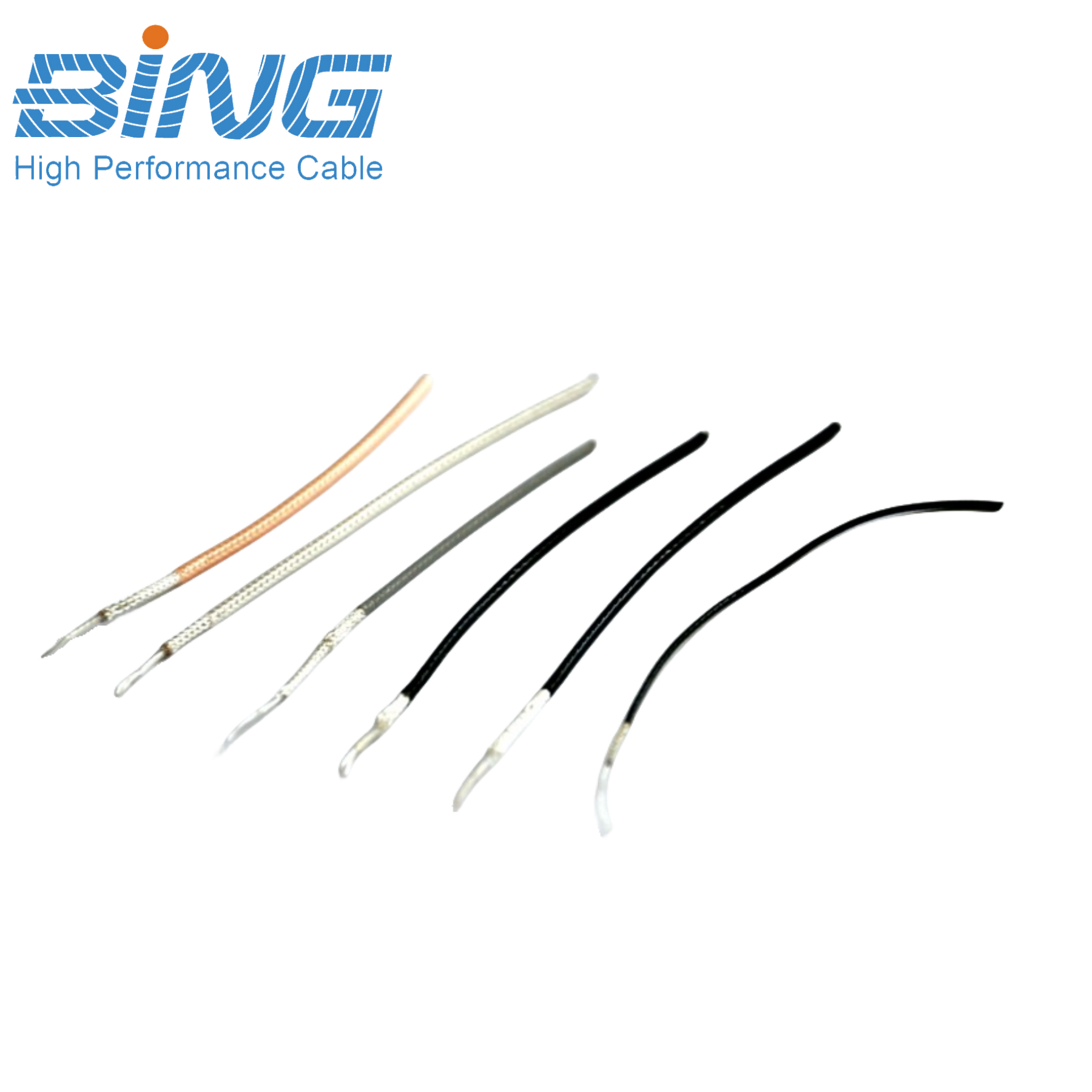

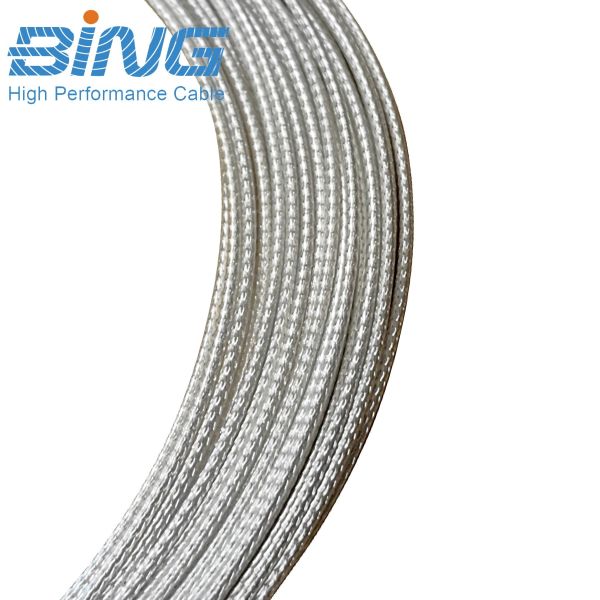

HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
Specifications
Brand Name :
Bing Wire & Cable
Model Number :
HRF 0.75-WB
Certification :
ISO, RoHS
Place of Origin :
Shanghai, China
MOQ :
1000ft
Price :
$0.23-0.66 / ft
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000ft 7days
Delivery Time :
10-15 work days
Type :
Medical coaxial cable
Conductor Material :
Silver plated copper alloy or Silver-plated copper-clad steel
Insulation :
Solid PTFE
Outer Conductor :
Silver-plated copper braided
Jacket :
Clear FEP
Impedance :
50 Ohm
Voltage Rated :
500V
Operating Temperature :
-55°C~+200℃
Description
Product Description

Our HRF0.75-WB Medical Coaxial Cable is a precision-engineered miniature coaxial cable specifically designed for microwave ablation procedures, with primary application in medical treatment of varicose veins. Combining high mechanical strength with excellent RF performance up to 3 GHz, this cable delivers reliable energy transmission in demanding interventional medical environments.

Key Features

  • High-Strength Inner Conductor: Silver-plated copper alloy or copper-clad steel construction provides superior tensile strength and pushability for intravascular navigation.

  • Ultra-Flexible Design:Minimum 10 mm bend radius enables smooth tracking through tortuous vessel anatomy without signal degradation.

  • Medical-Grade Materials: PTFE insulation and FEP jacket offer excellent biocompatibility, chemical resistance, and high-temperature tolerance (up to +200°C).

  • Excellent RF Performance: Engineered for 50 ohm impedance with low attenuation at microwave frequencies (915 MHz / 2450 MHz).

  • Robust Shielding: 92% braided coverage minimizes electromagnetic interference and prevents energy leakage during microwave ablation.

  • Transparent Jacket: Clear FEP allows visual inspection of shield integrity prior to use.

Applications

  • Microwave Ablation Systems – Primary energy delivery medium for 915 MHz and 2450 MHz generators

  • Intravascular Catheters – Signal transmission in 4-7 Fr catheter platforms

  • High-Frequency Surgical Tools – Interconnect for active surgical instruments up to 3 GHz

  • Thermal Therapy Devices – Energy delivery for hyperthermia and coagulation procedures

  • Medical Sensor Interconnects – Shielded signal path for intravascular diagnostic sensors

Technical Support

Our engineering team provides comprehensive support for:

  • Connector selection and termination

  • Custom cable assembly design

  • Electrical and mechanical testing

  • Regulatory documentation assistance

Specifications
Physical Properties
Item Material Diameters (mm)
Inner Conductor Silver plated cooper alloy or Silver plated copper-clad steel 1/0.152
Insulation Solid PTFE ----
Outer Conductor braided, 92% coverage ----
Jacket Clear FEP 0.75Max
Electrical Properties
Capacitance (pF/m) 96.5
Impedance (Ohms) 50
Velocity of Propagation (%) 70
Min. Bend Radius (mm) 10
Voltage Rating(VMS) 500
Max Operating Frequency (MHz) 3000
Temperature Range (℃) -55~+200
Attenuation
Frequency (MHz) Attenuation (dB/m)
100 0.697
500 1.570
1000 2.2332
3000 3.916
Product Detail

HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical EquipmentHRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment

HRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical EquipmentHRF0.75-WB 34 AGW Coax High Precision 50 Ohm PTFE Insulated Clear FEP Jacket for Medical Equipment
