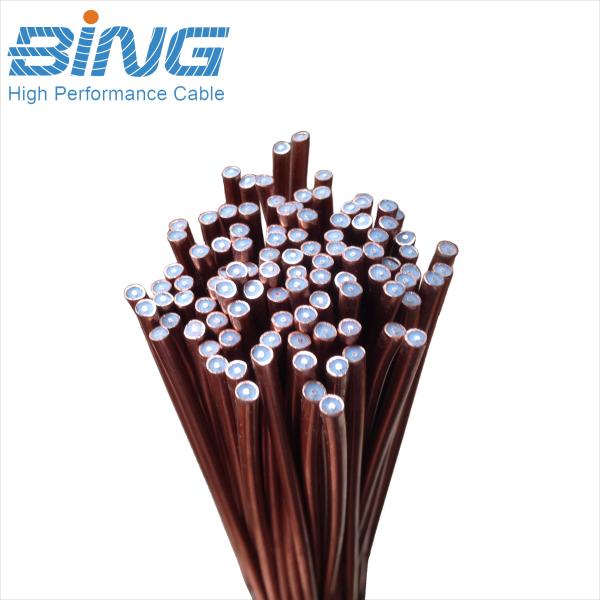

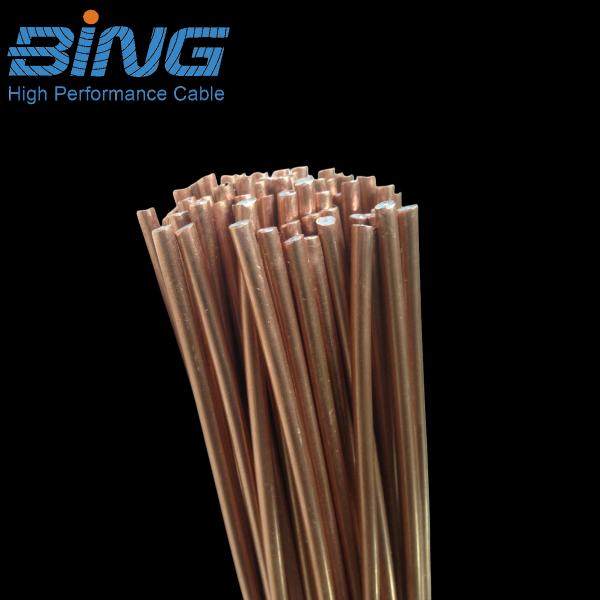

This SR-047 0.047 inch (1.19mm) semi-rigid coaxial cable serves as a UT-047 compatible alternative, featuring seamless copper tube construction that provides 100% RF shielding with effectiveness exceeding 100 dB. The center conductor utilizes silver-plated copper-clad steel (SCCS) at 0.0113 inch (0.287mm) diameter, delivering excellent conductivity while maintaining mechanical strength for permanent forming. PTFE dielectric supports 70% velocity of propagation with capacitance of 29 pF/ft (95.2 pF/m). Operating frequency extends to 109 GHz, with insertion loss of 10.6 dB/m at 40 GHz and 9.39 dB/m at 65 GHz. MIL-C-17/151 compliant with 3000V RMS voltage rating and RoHS certified, this UT-047 compatible alternative semi-rigid cable is suitable for test fixture internal wiring, probe card interconnects, and microwave module integration where phase stability and repeatable performance are required.

• UT-047 compatible alternative – form-fit-function equivalent with identical 0.047" (1.19mm) outer diameter and 50 Ohm impedance, compatible with all standard UT-047 connector tooling
• Seamless copper tube shield – Provides 100% RF shielding with >100 dB effectiveness, eliminating signal leakage in multi-port test fixtures
• 110 GHz frequency capability – Supports millimeter wave applications through W-band, with usable performance extending beyond 110 GHz
• 50 Ohm impedance with PTFE dielectric – 70% velocity of propagation with 29 pF/ft (95.1 pF/m) capacitance for consistent impedance
• SCCS center conductor – 0.0113 inch (0.287mm) silver-plated copper-clad steel for low loss and reliable soldering

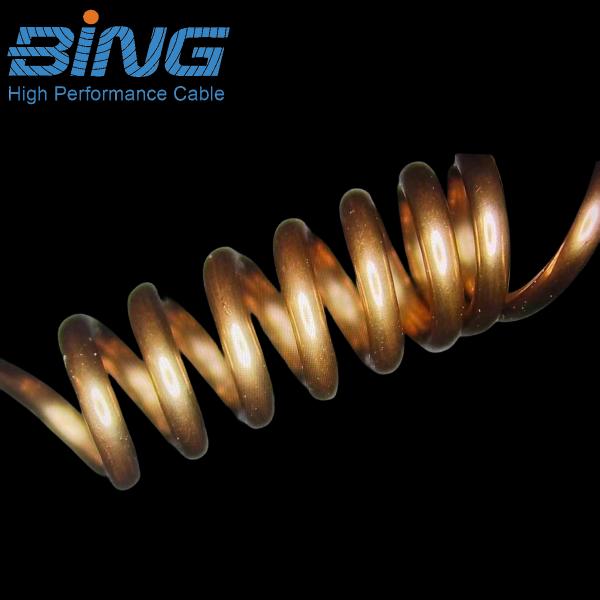

• 0.050 inch minimum bend radius – Formable for custom routing in test fixtures and compact module layouts
• MIL-C-17/151 compliant – Manufactured to mil-spec for defense and aerospace applications
• RoHS certified – Meets environmental compliance requirements for global markets
• 3000V RMS voltage rating – Suitable for high voltage device characterization and breakdown testing
• Custom lengths – Cut to exact specifications for prototype through production quantities
• Connector options – Bare ends for PCB solder, SMA through 26 GHz, 2.92mm through 40 GHz, SMP for blind-mate applications
• 10 meter minimum order – Low MOQ for test fixture development and research projects

• Semiconductor test industry – Internal wiring within high-frequency test fixtures and probe cards for wafer-level device characterization up to 110 GHz
• Microwave module integration – Pre-formed semi rigid interconnects for internal signal routing in amplifier modules, frequency converters, and transceiver assemblies
• VNA test fixtures – Signal paths within custom test enclosures connecting device under test to VNA interface ports
• Aerospace & defense electronics – Internal wiring in radar modules, EW systems, and satellite payloads requiring MIL-C-17/151 compliance
• Quantum computing research – Cryogenic test fixture interconnects for qubit characterization at millikelvin temperatures
• 5G mmWave infrastructure – Production test fixtures for 28GHz and 39GHz power amplifier and front-end module testing
• Automotive radar – Test fixtures for 77GHz radar sensor characterization and production validation
• Medical device manufacturing – Internal wiring in test fixtures for MRI-compatible electronics and implantable device qualification
• Metrology and calibration – Reference standards and calibration fixtures requiring phase-stable, low-loss construction
• High reliability component testing – Burn-in and environmental stress screening fixtures for microwave components
