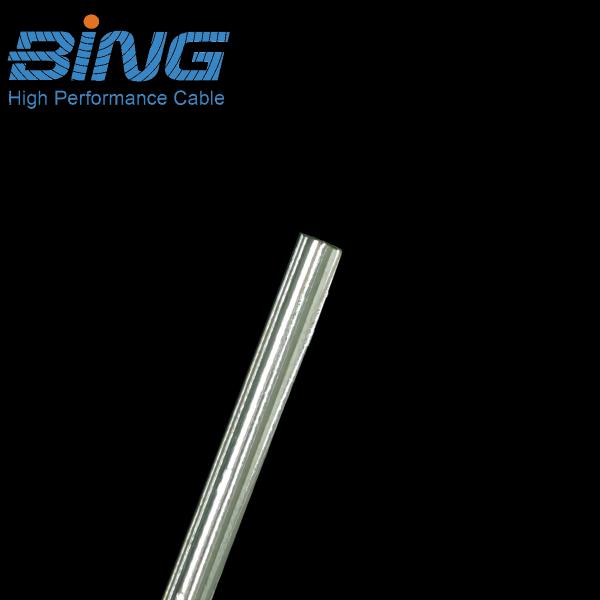

The SR-034-TP is a 0.034 inch (0.86mm) tin-plated semi-rigid coaxial cable engineered for applications where environmental resistance is as critical as electrical performance. This UT-034-TP compatible alternative cable shares the same core construction as our standard SR-034—including the SCCS center conductor and PTFE dielectric—but features a seamless copper tube outer conductor with a tin plated finish. The tin plating provides superior corrosion resistance in marine, coastal, and high humidity environments where bare copper would oxidize and degrade over time. The silver plated copper clad steel (SCCS) center conductor delivers mechanical strength for permanent forming while maintaining excellent conductivity. With 155 GHz higher order mode cutoff frequency and 2100V voltage withstanding, this microwave cable supports demanding applications through 90 GHz. Operating temperature ranges from -55°C to +125°C with full RoHS compliance.

• 0.034 inch (0.86mm) diameter – Industry standard size compatible with precision connectors

• SCCS center conductor – Silver plated copper clad steel for mechanical stability and conductivity

• Seamless Tinned copper outer conductor – Superior corrosion resistance for harsh environments

• 155 GHz higher order mode cutoff – Clean propagation through 90 GHz with margin

• 2100V voltage withstanding – Suitable for high power RF applications

• ±1.5 Ohm impedance tolerance – Precision matched for critical applications

• -55°C to +125°C operating range – Reliable across temperature environments

• Tin plating withstands salt spray – Extended service life in marine environments

• Connector options – Bare ends, SMA, 2.92mm, custom connectors and terminations

• 10 meter minimum order – Low MOQ for projects and production

• Custom lengths – Cut to exact specifications

• Shipboard and naval electronics – Internal wiring in radar systems, communication equipment, and navigation electronics where salt spray exposure is constant

• Coastal telecommunications infrastructure – Base station components and microwave backhaul equipment in coastal regions with high humidity and salt air

• Offshore oil and gas platforms – Test fixtures and instrumentation in offshore environments requiring extended corrosion resistance

• Marine research instrumentation – Oceanographic equipment, buoy systems, and underwater sensing platforms

• Port and harbor radar systems – Critical connections in marine traffic control and surveillance radar

• Shipyard test fixtures – Production test equipment in coastal manufacturing facilities

• Coastal defense systems – Electronics deployed in littoral environments requiring MIL grade corrosion protection

• Weather monitoring stations – Coastal weather radar and instrumentation exposed to salt spray

• Desalination plants – Industrial monitoring equipment in high humidity coastal facilities

• Bridge and tunnel monitoring – Infrastructure sensors in marine environments
