Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Specifications
Brand Name :
CPET
Model Number :
CP-NBQ833
Place of Origin :
China
MOQ :
2sets
Price :
9100dollars/set
Payment Terms :
L/C
Supply Ability :
25sets/month
Delivery Time :
40 work days
Packaging Details :
Wooden case packing
Total input current :
200A*2
Total input power :
100kW*2
Warranty period :
12 months
Description
Burn-In Test System For Large Photovoltaic Inverters Current Power Converter

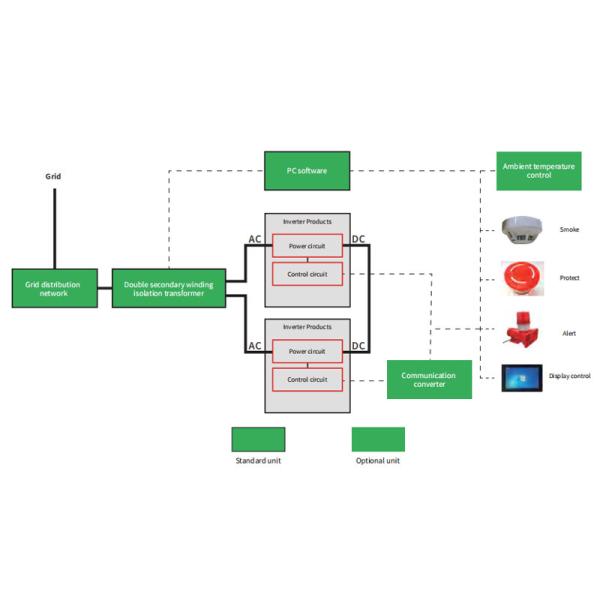

Architecture diagram
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
Performance parameters
Large Photovoltaic Inverters Burn-In Test System with 200A Input Current and 100kW Input Power
System System structure 1 control cabinet + 2 transformer cabinets
Overall size 3500*1200*1900mm
Total floor area 3500*1500mm(Including operation area)
Total input voltage Three-phase five-wire system 220Vac (rated)
Total input current 200A*2
Total input power 100kW*2
Application ambient temperature 0-40℃
Application environment humidity 0-95%
Fire protection requirements Materials meet UL 94V0 rating
Environmental requirements Materials comply with Rohs, WEEE requirements
Safety requirements Comply with IEC62368 international standard design requirements
Burn-in cabinet Units/Cabinet 2 bits/cabinet
Input winding current 200A
AC Connector Type Bolt bronze
Signal Connector Type PA45 (L /N/PE)
Input power 100kW
Feedback power 500kW
Volume size 1200*1200*1900mm
Product area air duct direction Downwind, upwind
