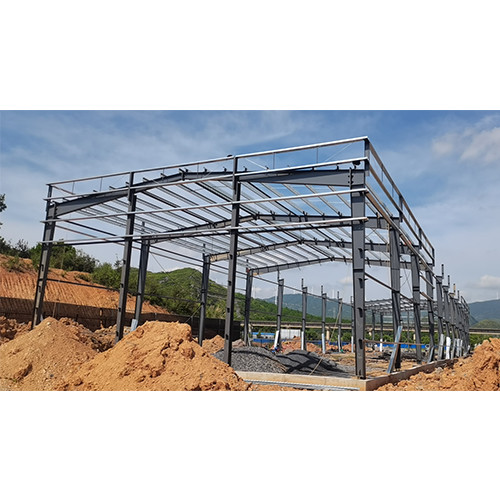

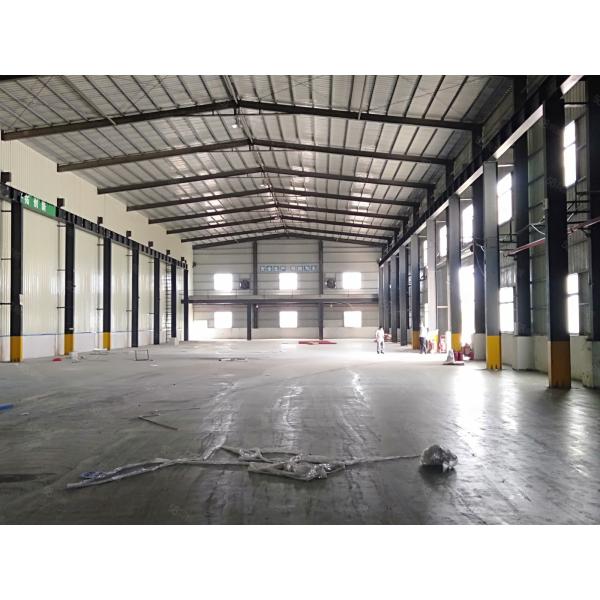

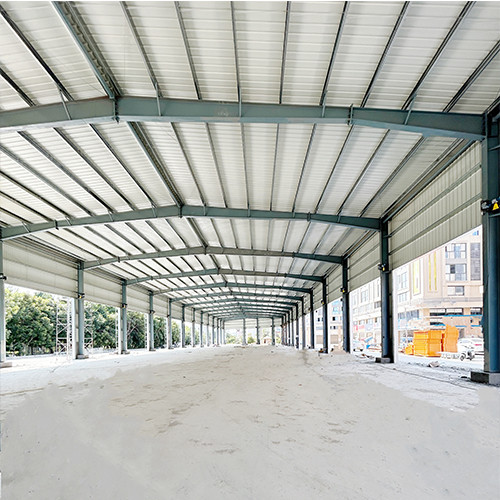

Popular Modern Design Prefab Steel Building Structures Metal Warehouse Bildings Construction Low Cost

Specifications

Description

Steel structure has features of high fire resistance, strong corrosion resistance. Steel structure is mainly refers to the main
bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect. The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

Frame System

Primary Framing

Hope offers metal building frames main categories:CS Clear Span, MS Multi Span, CL Classic, HS High Span, SST Single Slope, SSS Single Slope, LT Lean-To, Customo Designs. Our primary framing acts as a single unit after assembly that will support the load of the finished structure while transferring the weight to the foundation. 1.Solid Built-up I-beam main frame construction; 2.high strength plate steel; 3.Submerged Arc/welded Frames.

CS CLEAR SPAN

MS MULTI SPAN

CL CLASSIC

HS HIGH SPAN

SST SINGLE SLOPE

SSS SINGLE SLOPE

LT LEAN-TO

CUSTOM DESIGNS

Secondary Frame

Hope has a generous selection of secondary structural shapes, sizes, and gauges to fit your every need. Secondary structural framing includes purlins and girts (cee and zee profiles), eave struts, base angles, clips, and other miscellaneous structural parts, which are the members that support the wall and roof panels.
Secondary Framing Systems
(Roof Secondary Structural)

Zee Purlin

Eave Strut

(Wall Structural)

Cee Purlin

Z Girt

Wall Secondary Structural

Girt conditions refer to the method in which horizontal girts are attached to the exterior columns of your building. The decision on which structural members to use will be based on the economy of each member, the wall system used, product application, or by customer choice.

Flush Girt

Inset Girt

Bypass Girt

Bracing Methods

Cable X Bracing

Wind Column

Portal Frame

Introduction to l-beam

I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I” are flanges while the vertical element is the “web”. I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. Hope offers many different sizes, lengths, and specifications for I-beams.

Specification
Items		Specification
Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
	Beam	Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
	Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door
	Rainspout	PVC
Live load on Roof		In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade		12 Grades
Earthquake-resistance		8 Grades
Structure Usage		Up to 50 years
Finishing Options		Vast array of colors and textures available
Paint Options		Alkyd paiting, two primary painting, two finish painting (Primer ,Medium paint ,top coat, epoxy zinc etc.) Or Galvanized.

I-beam steel production process
