Industrial Steel Structure Factory Building - High Rigidity Prefabricated Warehouse for LogisticsConstruction

Specifications

Description

Product Paramenters

Material List
Project	Steel Structure Building
Size	According to Customer Need
Main Steel Structure Frame
Column	Q235B, Q355B Welded H Section Steel
Beam	Q235B, Q355B Welded H Section Steel
Secondary Steel Structure Frame
Purlin	Q235B C and Z Type Steel
Knee Brace	Q235B C and Z Type Steel
Tie Tube	Q235B Circular Steel Pipe
Brace	Q235B Round Bar
Vertical and Horizontal Support	Q235B Angle Steel, Round Bar or Steel Pipe
Roof and Wall Systerm
Roof Clading	Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Wall Clading	Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool)
Door	Sandwich Panel Sliding Door/Rolling Metal Door
Window	Aluminium Alloy Window/PVC Panel Window

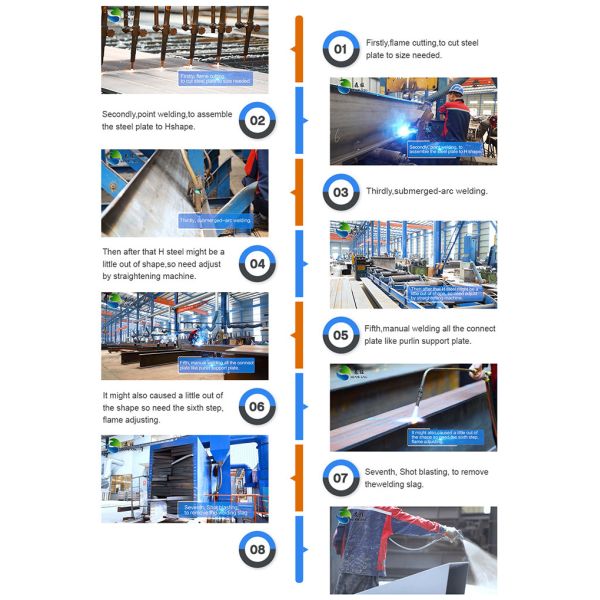

Production Process

Steel structure building is a popular type of building system now, and its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.Connection Method :The columns are connected with the foundation by pre-embedding anchor bolt The beams and columns, beams and beams are connected with high intensity bolts
Construction Advantage:
Could be designed according to different purpose and environment condition Long life span, could be more than 50 years Quick and easy install work and the more economic friendly Could be moved and recycle Strong seismic and wind resistance
