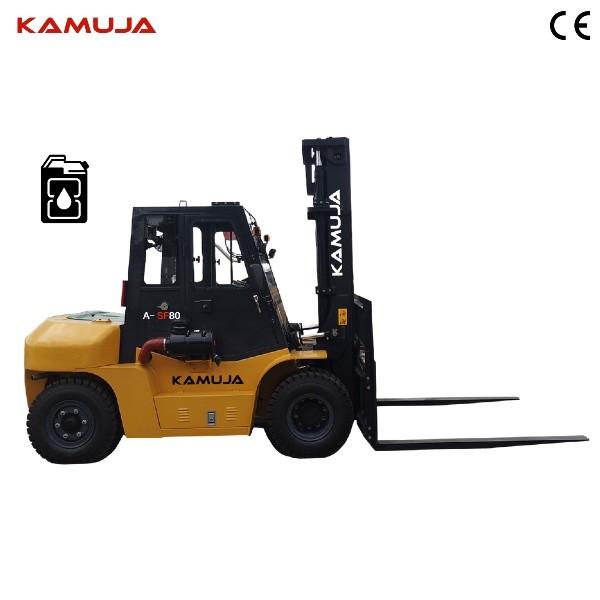

A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine
A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine
A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine
A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine
A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine
A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine
Specifications
Brand Name :
KAMUJA
Model Number :
A-SF80
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Price :
USD 33K-43K/ UNIT
Packaging Details :
2 UNITS/ 40 HQ
Power souce :
Diesel Engine
Engine :
ISUZU 6BG1
Max. lifting height :
3m with options : Free II & III Mast- 3.5~8M in different costs
Fork length :
1220 mm or 1070mm
Rated loading capacity :
8000 KG
Warranty :
1 Year / 2000 Working Hours
Description

Express.Brochure.A-SF80.pdf

8000kg/8.0T Load, Diesel Forklift, ISUZU Engine, Free Mast A-SF80

INTRODUCTION

Inherited the high quality characteristics of KAMUJA series products.

The machine has the advantages of compact and reasonable structure, strong lifting capacity, low failure rate and good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment.

FEATURES

① ENGINE SYSTEM

The engine works stably and reliably, with low fuel consumption and strong power.

② HYDRAULIC SYSTEM

The dual pump design allows separate operation of the power steering and lifting units, and the hydraulic joint designed specifically for KAMUJA provides high reliability and effectively reduces the oil leakage rate.Full hydraulic load free induction steering system, easy to operate; It can ensure that the speed of goods is increased under idle conditions, so that the vehicle is more stable and reliable.

③ TRANSMISSION SYSTEM

Adopt the domestic first-class manufacturer's gearbox, transmission power is strong.

④ ELECTRICAL SYSTEM

Using the latest technology of wiring harness and waterproof plug-in, multi-channel fuse layout, safe and reliable.

⑤ CAB & CONSOLE

The cabin is spacious with premium seats for a comfortable driving experience, and the configuration's edge design can be seen from the driver's seat for optimal visibility when reversing to determine the distance.

⑥ DOOR FRAME TYPE IS AVAILABLE

Wide field of view/Level 2 Full freedom/Level 3 Full freedom

⑦ACCESSORIES ARE OPTIONGAL FOR THE JOB

Side shifter/pitch fork/roll clip/soft clip, etc

⑧APPLICABLE CONDITIONS/ENVIRONMENT

Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment

⑨FUEL CONSUMPTION/GREEN ENVIRONMENTAL PERFORMANCE INTRODUCTION

The vehicle has been optimized to the maximum extent, improving the operation efficiency, effectively reducing fuel consumption, energy saving and environmental protection.

⑩REPAIR AND EASE REPAIR

Special maintenance space is reserved for the car body, making subsequent maintenance more convenient. KAMUJA's perfect service network, timely and thoughtful service, is your peace of mind to use the equipment intimate guarantee

OVERALL

A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine

CAPACITY CHART

A-SF80 8.0T Diesel Fork Truck 8000kg With ISUZU 6BG1 Engine

SPECIFICATIONS

General Model A-SF80 Unit
Load capacity 8000 kg
Load center 500 m m
Power type Diesel
Dimensions Lft height H 3000 m m
Free lifting height H3 182 m m
Fork Distance(Out side) 300/1756 m m
Mast tiltangle a/β 8/10 deg
Fort overhang K 640 m m
Overall dimensions Length to face of fork L1 4860 m m
Overall width 2045 m m
Overallheight forklowered H1 2500 m m
Overall height forkraised H2 4420 m m
Overall guard height H4 2500 m m
Turning radius 3330 m m
Min.right angle aisle width 3580 m m
Performance Travelspeed (Full/Noload) Walking speed 25 km/h
Lifting speed 450/530 km/h
Max.gradeability(Full/No load) 20/15 %
Selfweight 10200 kg
Chassis

Tires		 Front 8.25-15-14PR
Rear 8.25-15-14PR
Tire diatance Front 1520 m m
Rear 1700 m m
Wheelbase 2250 m m
Ground dlearance Rack 200 m m
Drive units &control Engine Model ISUZU6BG1
Rated output 82.4/2000 km/rpm
Rated torque 416.8/1500 N.m/rpm
No.of cylinder 6
Borexstroke 105×125 m m
Displacement 5.785 L
Torque Converter of

transmission box		 Type Hydraulic
Shift Front and back 2/2
Working pressure 20 Mpa
