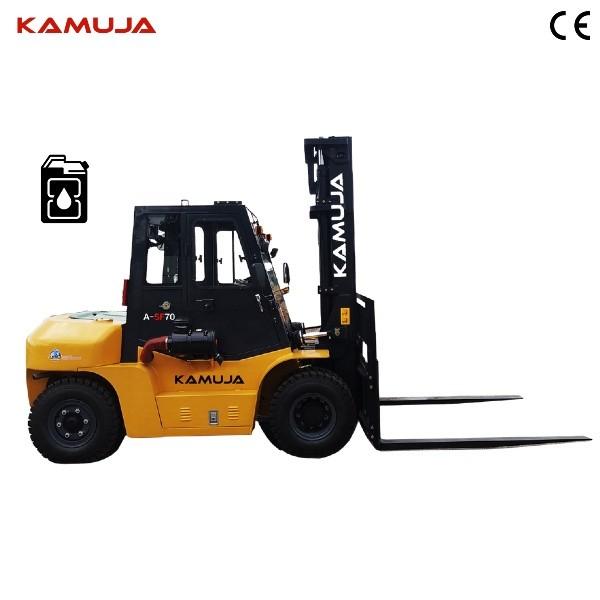

7000kg Diesel Engine Forklift 7 Ton Low Fuel Consumption And Strong Power
7000kg Diesel Engine Forklift 7 Ton Low Fuel Consumption And Strong Power
7000kg Diesel Engine Forklift 7 Ton Low Fuel Consumption And Strong Power
7000kg Diesel Engine Forklift 7 Ton Low Fuel Consumption And Strong Power
Specifications
Brand Name :
KAMUJA
Model Number :
A-SF70
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD 40K-50K/ UNIT
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Packaging Details :
2 UNITS/ 40 HQ
Condition :
New
Power souce :
Diesel Engine
Max. lifting height :
3m up to 8m (optional)
Fork length :
1220 mm or 1070mm
Rated loading capacity :
7000 KG
Engine :
ISUZU
Warranty :
1 Year or 1000 working hours
Description


7000kg/7ton Diesel Forklift with Low Fuel Consumption and Strong Power

FEATURES
①ENGINE SYSTEM
The engine works stably and reliably,with low fuel consumption and strong power.
②HYDRAULIC SYSTEM
The dual pump design allows separate operation of the power steering and lifting units,and the hydraulic joint designed specifically for KAMUJA provides high reliability and effectively reducesthe oil leakage rate.Full hydraulic load free induction steering system,easy to operate;It canensure that the speed of goods is increased under idle conditions,so that the vehicle is morestable and reliable.
③TRANSMISSION SYSTEM
Adopt the domestic first-class manufacturer's gearbox,transmission power is strong.
④ELECTRICAL SYSTEM
Using the latest technology of wiring harness and waterproof plug-in,multi-channel fuse layout,safe and reliable.
⑤CAB &CONSOLE
The cabin is spacious with premium seats for a comfortable driving experience,and theconfiguration's edge design can be seen from the driver's seat for optimal visibility whenreversing to determine the distance.
⑥DOOR FRAME TYPE IS AVAILABLE
Wide field of view/Level 2 Full freedom/Level 3 Full freedom
⑦ACCESSORIES ARE OPTIONGAL FOR THE JOB
Side shifter/pitch fork/roll clip/soft clip,etc

⑧APPLICABLE CONDITIONS/ENVIRONMENT
Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment
⑨FUEL CONSUMPTION/GREEN ENVIRONMENTAL PERFORMANCE INTRODUCTION
The vehicle has been optimized to the maximum extent, improving the operation efficiency,effectively reducing fuel consumption, energy saving and environmental protection.
⑩REPAIR AND EASE REPAIR
Special maintenance space is reserved for the car body, making subsequent maintenance moreconvenient. KAMUJA's perfect service network, timely and thoughtful service, is your peace of mind to use the equipment intimate guarantee
Special Equipment for Mast
Secondary wide view full free gantry
Three wide field of view full free gantry
Special fork
SPECIFICATIONS
GeneralModelUnitA-SF70
Load capacitykg7000
Load centermm500
Power type Diesel
DimensionsLift heightHmm3000
Free lift ing heightH3mm200
Fork Distance (Out side)mm300/1756
Mast tilt angleα/βdeg6/12
Fort overhangKmm590
Overall dimensionsLength to face of fork L1mm4800
Overall widthmm1995
Overall height fork lowered H1mm2625
Overall height fork raised H2mm4420
Overall guard height H4mm2460
Turning radiusmm338
Min.right angle aisle widthmm3000
PerformanceTravel speed (Full/No load)Walking speedkm/h26/28
Lifting speedkm/h450/530
Max.gradeability (Full/No load)%20/15
Self weightkg930
ChassisTiresFront 8.25-15-14PR
Rear 8.25-15-14PR
Tire diatanceFrontmm1470
Rearmm1700
Wheelbasemm2250
Ground clearanceRackmm200
Drive units &controlEngineModel ISUZU 6BG1
Rated outputkm/rpm82.4/2000
Rated torqueN.m/rpm416.8/1500
No.of cylinder 6
Bore×strokemm105×125
DisplacementL5.785

Torque Converter of

transmission box

Type Hydraulic
ShiftFront and back 2/2
Working pressureMpa20
