Specifications
Brand Name :
YAGO Industry
Place of Origin :
CHINA
Anchor Bolts :
M16 chemical bolts
Main Structure :
H-Beam, Q355B Section Steel
Steel Frame :
Square Tube Columns, Q235 Steel, Galvanized
Roof Panel :
50mm/75mm/100mm Rockwool Sandwich panel
Delivery Time :
24-45Days
Packaging Details :
By Pallet or As Request
Wall Purlin :
C Section Steel, Q235 Steel, galvanized
Payment Terms :
L/C,T/T
Supply Ability :
20000-30000 ㎡
Model Number :
YGKL31
MOQ :
150㎡
Certification :
ISO;CE
Roof Purlin :
C Section Steel, Q235 Steel, galvanized
Description
Affordable Prefabricated Building for Social Housing Projects
Factory-engineered modular housing solution designed specifically for cost-effective social housing initiatives, providing durable and comfortable living spaces.
Product Overview
  • Rigid Column Frame: Cost-effective Q235 steel square tube column framework with galvanized protective layers and powder-coated paint, reinforced with C-Section roof and wall purlins.
  • Ground Anchoring Set: Stabilized via high-tensile M16 chemical bolts combined with 4.8S ordinary zinc-plated connecting hardware for secure foundations.
  • Insulated Enclosure Layout: Continuous wall and roofing protection using 50mm, 75mm, or 100mm high-density Rockwool sandwich panels with secure 850mm×2030mm insulated steel entry doors.

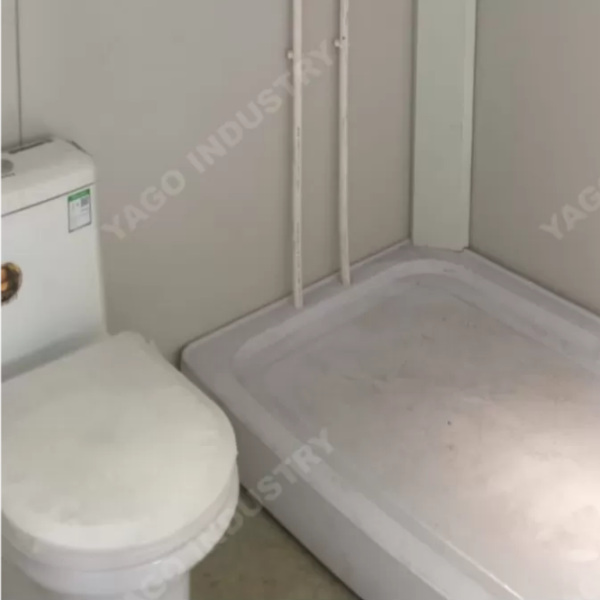

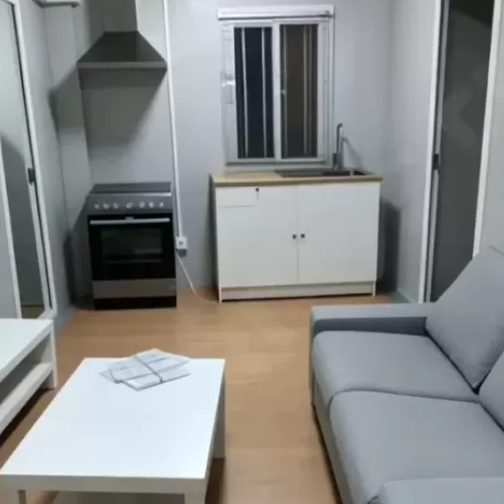

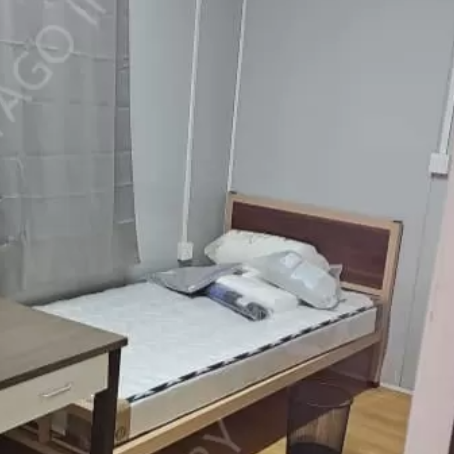

  • Standardized Interior Partitioning: Divides floor space into dry living areas (gypsum board ceilings and vinyl floor leather) and wet utility rooms (calcium silicate ceilings with keels and non-slip ceramic tiles).
  • Civil Utilities Grid: Pre-configured with 220V/60Hz LED lighting system, 10A/16A junction-box sockets, built-in plumbing (toilet with valve, washbasin with faucet, shower base with mixer), and dedicated AC/water-heater conduits.
Product Advantages
  • Optimized Public Budgeting: Factory-prefabricated modular elements significantly lower raw material waste and shorten on-site construction schedules.
  • Low-Maintenance Material Selection: Combination of galvanized square steel tubes, vinyl floor leather, and ceramic tiles offers immense durability against heavy daily wear.
  • Excellent Fire & Insulation Rating: Non-combustible Rockwool panel cores up to 100mm thick ensure optimal thermal efficiency and essential fire wall protection.
  • Pre-Certified Tenant Safety: Centralized power distribution cabinet with dedicated earth-leakage protective device to instantly mitigate shock hazards.
  • All-Inclusive Move-In Ready Setup: Integrated double-glazed PVC sliding windows pre-fitted with security screens and interior window blinds.
Application Scenarios
  • Municipal Social Housing Estates: Rapidly deployable, cost-effective residential neighborhoods for low-income families.
  • Urban Renewal Resettlement Zones: Clean, organized community pods for citizens displaced during city infrastructure upgrades.
  • Post-Disaster Community Reconstruction: Fast-assembly, durable public housing villages for displaced populations.
  • Public Sector Worker Dormitories: High-density, affordable living blocks for municipal workers and emergency responders.
  • Subsidized Rural Homestead Blocks: Economical, weather-resistant detached homes for agricultural workers.
Frequently Asked Questions
How does this prefabricated building system help governments reduce the cost of social housing projects?
The system cuts costs by moving construction into a controlled factory setting. All Q235 steel frames, wall panels, and utility lines are pre-cut and pre-engineered. This minimizes field labor, prevents material waste, and allows communities to be built much faster than traditional brick-and-mortar projects.
Is the building insulation adequate for areas experiencing extreme summer or winter climates?
Yes. The exterior envelope can be configured with premium Rockwool sandwich panels up to 100mm thick for both the roof and walls. This dense insulation layer minimizes thermal transfer, helping low-income families maintain stable indoor temperatures while keeping utility bills low.
How does the interior design prevent mold and moisture problems in high-density community housing?
The building incorporates a specialized dual-zone interior layout. Dry living areas feature lightweight gypsum board ceilings and vinyl flooring, while the high-humidity bathroom sector is protected by moisture-resistant calcium silicate ceilings and heavy-duty ceramic floor tiles that are easy to clean.
What built-in safety features protect tenants from electrical hazards?
Every individual housing module comes standard with a comprehensive power distribution cabinet that contains integrated circuit switches and a highly sensitive earth-leakage protective device. This safety setup automatically shuts off the electrical current if a fault or surge is detected.
Can these affordable housing units be anchored securely on sites with poor or unlevel ground?
Yes. The primary structural columns are anchored into the foundation using heavy-duty M16 chemical bolts combined with 4.8S zinc-plated hardware. This rigid anchoring framework allows the lightweight square tube skeleton to stay completely stable on simple concrete pier configurations or leveled pads.
Technical Specifications
Item Specification
Main Steel Frame
Steel Frame Square Tube Columns, Q235 Steel, Galvanized Steel with Powder coated painting
Steel Structure Roof C Section Steel, Q235 Steel, galvanized
Roof Purlin C Section Steel, Q235 Steel, galvanized
Wall Purlin C Section Steel, Q235 Steel, galvanized
Cross Bracing L40*3
Anchor Bolts M16, chemical Bolts
Ordinary Bolt 4.8S, Zincification
Roofing and Wall System
Roof Panel 50mm/75mm/100mm Rockwool Sandwich panel
Wall Panel 50mm/75mm/100mm Rockwool Sandwich panel
Ceiling & Flooring
Dry Room Ceiling Gypsum board, with frame
Dry Room Floor Leather Vinyl floor leather
Wet Room Ceiling Calcium silicate board Ceiling with Ceiling keel
Wet Ceramic Tile Ceramic Tiles
Doors & Windows
Door Insulated Steel door, 850mm×2030mm
Window PVC sliding window with double glass, with screen and window blind
Electric Unit and Sanitary Facilities & Plumbing
Electric Cable With electrical cable for lighting, socket, AC and water heater system
Lights LED light 220V, 60HZ
Switch with junction box
Socket 10A and 16A, with junction box
Power Distribution Cabinet box+switch+earth leakage protective device
Toilet including water valve
Washbasin including faucet, water pipe
Shower With shower head, water mixture, and shower base
Water Pipe input and output water pipe
