Weatherproofing Prefabricated Steel Structure Workshop Insulated Sandwich Panel
Weatherproofing Prefabricated Steel Structure Workshop Insulated Sandwich Panel
Weatherproofing Prefabricated Steel Structure Workshop Insulated Sandwich Panel
Weatherproofing Prefabricated Steel Structure Workshop Insulated Sandwich Panel
Weatherproofing Prefabricated Steel Structure Workshop Insulated Sandwich Panel
Weatherproofing Prefabricated Steel Structure Workshop Insulated Sandwich Panel
Specifications
Main Structure: :
H-Beam, Q355B Section Steel
Ventilator Diameter :
Φ600mm 304SS
Certification :
ISO;CE
Wall Purlin :
Q235B C-Section steel, Galvanized 275g
Main Structure :
H-Beam, Q355B Section Steel
Packaging Details :
By Pallet or As Request
Place of Origin :
CHINA
Tie Rod Diameter :
Φ89*3 steel Q235
Supply Ability :
20000-30000 ㎡
Payment Terms :
L/C,T/T
Delivery Time :
24-45Days
High-Strength Bolts :
Grade 10.9 intensive bolts
Brand Name :
YAGO Industry
Model Number :
YGKL25
MOQ :
150㎡
Roof Purlin :
Q235B C-Section steel, Galvanized 275g
Description

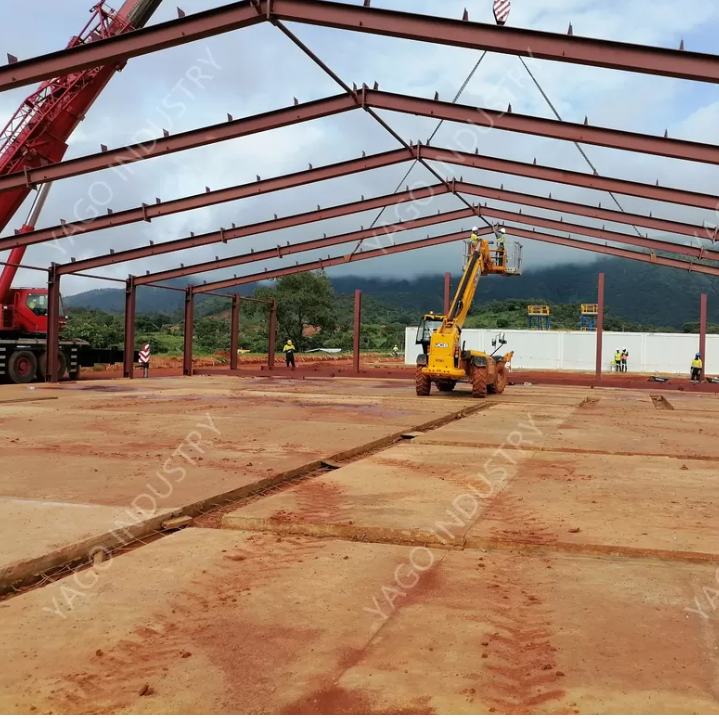

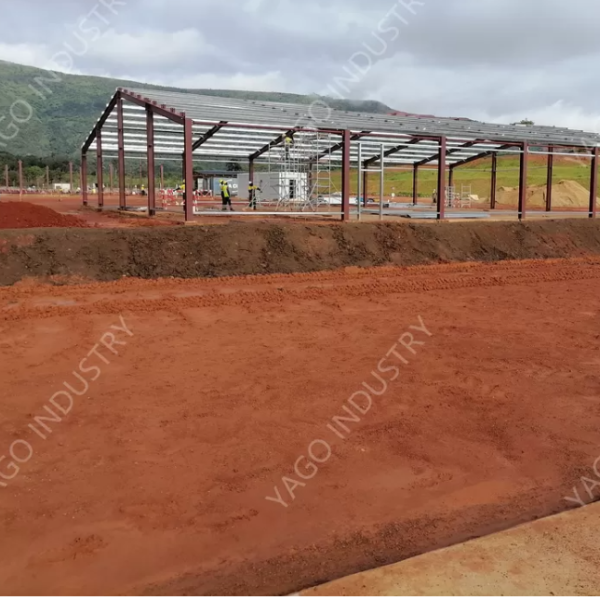

Prefabricated Fabricated Steel Structure Workshop and Factory
Product Overview
Our prefabricated steel structure workshops and factories are engineered for industrial applications with superior durability and performance.
  • Primary Structural Framing: Built with high-strength H-Beam Q355B steel sections, coated with specialized industrial paint to establish a highly durable, rigid load-bearing frame.
  • Secondary Grid System: Roof and wall purlins utilize Q235B C-Section steel profiles, upgraded with a heavy-duty 275g galvanized layer to prevent atmospheric weathering.
  • Tension & Bracing Layout: Incorporates Φ20 steel cross bracings, L50*4 corner braces, Φ20 intercolumn bracing systems, Φ89*3 heavy tie rods, and Φ12 round steel stretchers.
  • High-Strength Fasteners: Pre-engineered components are secured on-site using Grade 10.9 high-strength intensive bolts, Grade 4.8 ordinary galvanized hardware, and heavy-duty Q235B foundation anchor bolts.
  • Industrial Weatherproofing: Features customizable Galvalume color plates or insulated sandwich panels for cladding, integrated with stainless steel drainage gutters, Φ110 PVC downpipes, and Φ600mm 304SS unpowered roof ventilators.
Product Advantages
  • Optimized for Factory Equipment: High-tensile Q355B H-beams deliver expansive clear spans, allowing seamless layouts for heavy machinery production lines, assembly bays, and overhead cranes.
  • Superior Anti-Corrosion Barrier: The 275g galvanized layer on the wall and roof purlins delivers long-lasting protection against industrial fumes, ambient moisture, and rust.
  • Engineered Stress Distribution: The comprehensive combination of tie rods, stretchers, and cross-bracings allows the pre-fabricated factory structure to withstand severe wind loads and seismic shifts.
  • Eco-Friendly Manufacturing Climate: Integrated Φ600mm stainless steel unpowered ventilators continuously exhaust smoke, heat, and pollutants from the factory floor without consuming electricity.
  • Rapid Turnkey Pre-Fabrication: Bolt-together connections using Grade 10.9 hardware eliminate extensive on-site cutting and welding, reducing workshop construction schedules and labor budgets.
Application Scenarios
  • Automotive Assembly Plants: Massive pre-fabricated industrial workshops featuring expansive floor layouts for multi-stage robotic vehicle assembly lines and parts stamping.
  • Heavy Machinery Workshops: Rigid factory buildings specifically engineered to house overhead bridge cranes, heavy CNC machining equipment, and industrial steel fabrication.
  • Electronic Manufacturing Facilities: Clean, climate-controlled prefabricated workshops built with high-insulation sandwich panels to safeguard precision microelectronics and cleanroom spaces.
  • Agricultural Processing Factories: Highly ventilated, pest-resistant steel structures designed for food milling, automated crop sorting, and large-scale bulk packaging operations.
  • Chemical Production Workshops: Corrosion-resistant industrial facilities utilizing 275g galvanized grids and stainless steel drainage systems to withstand chemical processing vapors.
Technical Specifications
Component Description Material Specification
Main Steel Frame H-Beam, Q355B section steel With paint as per client request
Roof Purlin Q235B C Section steel Galvanized 275g
Wall Purlin Q235B C Section steel Galvanized 275g
High-strength Bolts Grade 10.9 intensive bolts High-strength connection
Ordinary Bolts Galvanized bolts Grade 4.8
Anchor Bolts Q235B anchor bolts As per design
Cross Brace Φ20 steel Q235, with paint or hot dip galvanized
Corner Brace L50*4 steel Q235, with paint or hot dip galvanized
Intercolumnar Brace Φ20 steel Q235, with paint or hot dip galvanized
Tie Rod Φ89*3 steel Q235, with paint or hot dip galvanized
Stretcher Φ12 round steel bar Q235, with paint or hot dip galvanized
Roofing Panels Galvanized Color Steel Sheet or Insulated Sandwich panel As per client request
Gutters Stainless Steel Gutter Corrosion-resistant
Downpipes Φ110 PVC rainspout pipes Durable drainage system
Non-powered Ventilators Φ500mm 304SS unpowered ventilator Energy-free ventilation
Exterior Wall Panels Galvanized Color Steel Sheet or Insulated Sandwich panel As per client request
Frequently Asked Questions
Q1: What structural elements make this steel building suitable for heavy factory machinery?
The main building skeleton utilizes heavy-duty Q355B H-beam steel profiles, which offer superior load-bearing capacity compared to standard steel. The framework is locked together with Grade 10.9 intensive bolts and anchored securely to the concrete base using Q235B anchor bolts to eliminate vibration and sway.
Q2: How does the factory roof manage ventilation and air quality during high-heat manufacturing?
The roofing architecture comes standard with Φ600mm 304 stainless steel unpowered ventilators. These units operate without electricity, using natural air currents and internal thermal pressure to pull hot air, smoke, and industrial exhaust out of the workshop automatically.
Q3: Can we choose high-performance insulation panels to maintain temperature control inside the workshop?
Yes. While the building envelope can be configured with standard Galvalume color steel sheets, you can upgrade both the roofing and exterior wall panels to high-insulation sandwich panels (such as Rockwool or Polyurethane) to enhance climate control and reduce factory HVAC operational costs.
Q4: How does this prefabricated steel framework resist rust in chemically active manufacturing environments?
All secondary structural components, including the roof and wall purlins, are crafted from Q235B C-Section steel featuring a thick 275g galvanized coating. The main H-beam frames are coated with specialized industrial paint, and the drainage system utilizes stainless steel gutters to completely prevent corrosion.
Q5: Are the components fully prefabricated before arriving at the industrial site?
Absolutely. All columns, rafters, purlins, and bracing networks are cut, drilled, and painted at the factory according to your engineering drawings. They arrive on-site ready for immediate assembly using the included Grade 10.9 high-strength bolts and Grade 4.8 ordinary bolts, minimizing welding.
