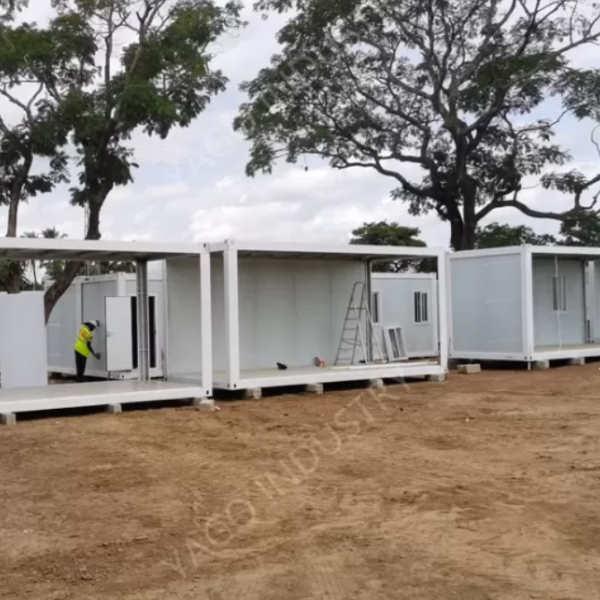

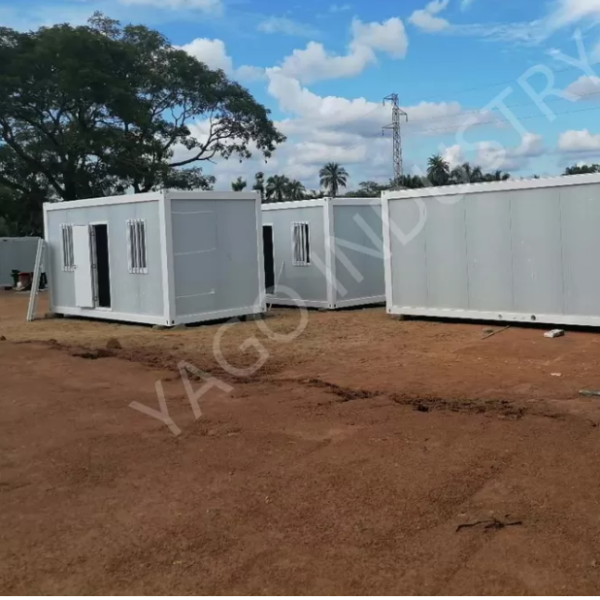

Steel Structure Mining Site Accommodation House Prefabricated 75mm
Steel Structure Mining Site Accommodation House Prefabricated 75mm
Steel Structure Mining Site Accommodation House Prefabricated 75mm
Steel Structure Mining Site Accommodation House Prefabricated 75mm
Steel Structure Mining Site Accommodation House Prefabricated 75mm
Steel Structure Mining Site Accommodation House Prefabricated 75mm
Specifications
Certification :
ISO;CE
Place of Origin :
China
Payment Terms :
L/C,T/T
Supply Ability :
1500-2000units/month
Packaging Details :
By Pallet or As Request
Floor structure :
Q235 galvanized Steel profile with Automatic Powder Coated paint
Window :
PVC sliding window, double glass, with fly screen
Corner pillar :
Q235 galvanized Steel profile with Automatic Powder Coated paint
Roof structure :
Q235 galvanized Steel profile with Automatic Powder Coated paint
Brand Name :
YAGO Industry
Model Number :
YGCJ07
MOQ :
6units
Delivery Time :
25-45days
Wall panel :
50mm/75mm fireproof Mineral Rockwool Sandwich panel
Roof covering :
Galvanized Powder Coated color painting steel Sheet
Description
Product Details
  • Product Name: Warehouse Steel Structure Modular Units for Industrial Storage and Prefabricated Accommodation
  • Product Brief: One-stop overall solution for outdoor field camps, integrating accommodation, office, canteen, toilet, water supply, power supply and fire protection supporting system. It can be constructed rapidly and relocated for repeated use, perfectly matching long-term field working base demands.
  • Product Specification:
    Project name: Flatpack Container 6.06*2.435*2.89m
    A Item Specification
    Steel Frame System System
    1 Roof structure Main roof frame: Q235 galvanized Steel profile, with Automatic Powder Coated paint Roof purlin: C Section Steel, galvanized. Q235B steel
    2 Floor structure Main floor frame: Q235 galvanized Steel profile,with Automatic Powder Coated paint Floor purlin:C Section Steel, galvanized. Q235B steel
    3 Corner pillar Q235 galvanized Steel profile, Galvanized with Automatic Powder Coated paint
    Container roof System
    1 Roof covering Galvanized Powder Coated color painting steel Sheet.
    2 Insulation Fiber glass with aluminum foil
    3 Ceiling board Galvanized Powder Coated color painting steel Sheet.
    Container floor System
    1 PVC flooring Vinly floor leather with glue
    2 Floor board 18mm fiber cement board
    ContainerWall System
    1 Wall panel 50mm /75mm fireproof Mineral Rockwool Sandwich panel
    2 Door Insulated Steel Door
    3 Window PVC sliding window, double glass, with fly screen
    Container Electrical System
    1 Power distribution cabinet Circuits with air-break switch, leakage protector,
    2 Light LED light, 24W
    3 AC Socket 16A universal, with socket box
    4 Common Socket 10A, Universal type, with socket box
    5 Switch 10A , with switch box
    Plumbing system(Optional as per drawing)
    1 washbasin including the accessory
    2 Closetool including the accessory
    3 shower shower base, shower head, water mixture
    4 Exhaust Fan 6 Inch
    5 water pipe input and output water pipe
    Stair case and Corridor. (Optional as per drawing)
    1 Stair Case and Corridor Fabricated with C channel steel, square tube, Round Steel, And checkered Steel Plate
    Additional Traingle Roof on Top of Each Block. (Optional as per drawing)
    1 Roof Structure Fabricated with C section steel, Galvanized Q235 Steel.
    2 Roof Covering Corrugated Galvanized Powder Coated Roof Tile
  • Application Scenarios: Mine construction camp, oil field drilling camp, geological exploration camp, road & bridge engineering camp, border defense camp, overseas engineering project base
  • FAQ

    Q1: How many people can this integrated camp accommodate?

    A1: Customized design supports camp scale from 10 persons to 5000 persons.

    Q2: How to solve water, electricity and sewage discharge problems in remote areas?

    A2: We support matching diesel generator set, fresh water purification system and integrated sewage treatment equipment to realize self-sufficient camp operation.

    Q3: Can it work normally in severe cold regions?

    A3: Reinforced thermal insulation layer and professional heating system can be equipped to adapt to environment temperature as low as -40℃.

    Q4: How long does it take to finish whole camp construction?

    A4: The whole process including design, production and on-site installation can be completed within 30 to 60 days.

    Q5: Is it convenient for camp relocation?

    A5: Full modular design enables quick disassembly, convenient container transportation and secondary reconstruction in different regions.
