Pre Engineered Temporary Construction Camp 20ft Welfare Unit
Pre Engineered Temporary Construction Camp 20ft Welfare Unit
Pre Engineered Temporary Construction Camp 20ft Welfare Unit
Pre Engineered Temporary Construction Camp 20ft Welfare Unit
Pre Engineered Temporary Construction Camp 20ft Welfare Unit
Pre Engineered Temporary Construction Camp 20ft Welfare Unit
Specifications
Payment Terms :
L/C,T/T
Packaging Details :
By Pallet or As Request
Model Number :
YGST02
Brand Name :
YAGO Industry
Dimension (L*W*H) :
6.055M*2.435M*2.895M
M2 :
14.74M2
Place of Origin :
China
Certification :
ISO;CE
Supply Ability :
1500-2000 Units/Month
MOQ :
6 Units
Delivery Time :
25-45 Days
Description
YAGO Galvanized Steel Modular Container House with Energy-Efficient Insulation and Fast Installation

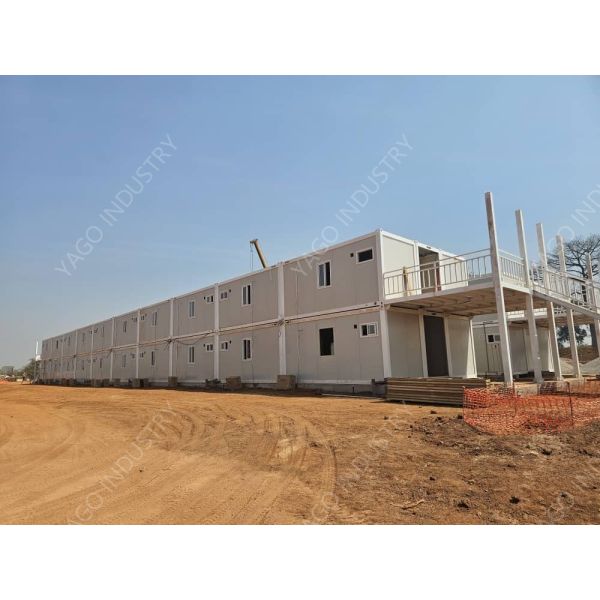

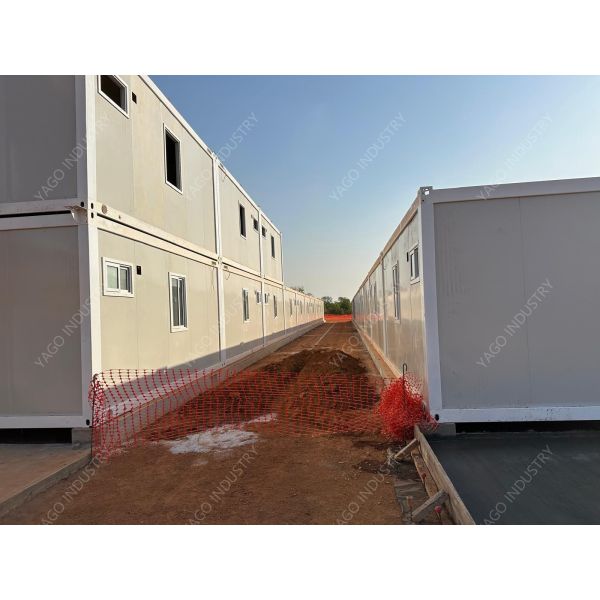

Galvanized Steel Prefab Container Building designed for versatile applications including offices, dormitories, classrooms, and modular building complexes.
Key Features & Benefits
Durable Galvanized Steel Structure
Built with galvanized steel frame and fire-resistant sandwich panels for superior structural stability and corrosion resistance. Features reinforced steel doors and double-glazed PVC windows for enhanced safety, insulation, and durability in various environments.
Comfortable and Fully Equipped Interior
Spacious 2.6-meter ceiling height with pre-installed electrical wiring, lighting systems, and international standard power distribution cabinets for simple and efficient installation.
Energy-Efficient Insulation System
Insulated sandwich panels with fire-rated fiberglass maintain stable indoor temperatures and reduce energy consumption. Double-glazed windows provide natural lighting and sound insulation for comfortable office or living spaces.
Fast Installation and Modular Expansion
Factory-prefabricated flatpack design enables rapid on-site assembly within hours. Multiple units can be connected or stacked to create customized building configurations.
Flexible and Sustainable Building Solution
Easy to transport, assemble, and relocate with flexible layout combinations. Constructed with recyclable materials to support sustainable construction and long-term global project use.
Technical Specifications
Steel Structure System
Component Specification
Roof Structure Main roof frame: Q235 galvanized steel profile with automatic powder coated paint. Roof purlin: C Section Steel, galvanized Q235B steel
Floor Structure Main floor frame: Q235 galvanized steel profile with automatic powder coated paint. Floor purlin: C Section Steel, galvanized Q235B steel
Corner Pillar Q235 galvanized steel profile, galvanized with automatic powder coated paint
Container Roof System
Component Specification
Roof Covering galvanized powder coated color painting steel sheet
Insulation fiber glass with aluminum foil
Ceiling Board galvanized powder coated color painting steel sheet
Container Floor System
Component Specification
PVC Flooring vinyl floor leather with glue
Floor Board fiber cement board
Floor Bottom Cover PU plastic tile
Container Wall System
Component Specification
Wall Panel Rockwool sandwich panel with galvanized powder coated color painting steel sheet on both sides (white color)
Door Insulated steel door (W850*H2030mm)
Window PVC sliding window, double glass, with fly screen and security net (W800*H1100mm)
Container Electrical System
Component Specification
Power Distribution Cabinet Circuit with air-break switch, leakage protector (Main power supply cable 6m² for industrial socket, 1.5mm² for lighting, 2.5mm² for common sockets, 4mm² for AC socket)
Light LED light, 24W
AC & Water Heater Socket 16A universal, with socket box
Common Socket 10A, universal type, with socket box
Switch 10A, with switch box
Container Accessories
Component Specification
Side Flashing 2 pcs length=5635mm, galvanized; 2pcs length=2690mm, galvanized
Rainspout Pipe Dia. 50mm, UPVC, length=2650mm
Pillar Trim Plate Length=2520mm, 0.3mm color steel plate (with fittings & accessories)
Ceiling Trim Plate Length=5640mm/2630mm, 0.3mm color steel plate (with fittings & accessories)
Additional Triangle Roof (Optional)
Component Specification
Roof Structure Fabricated with C section steel, galvanized Q235 steel
Roof Covering corrugated galvanized powder coated roof tile
