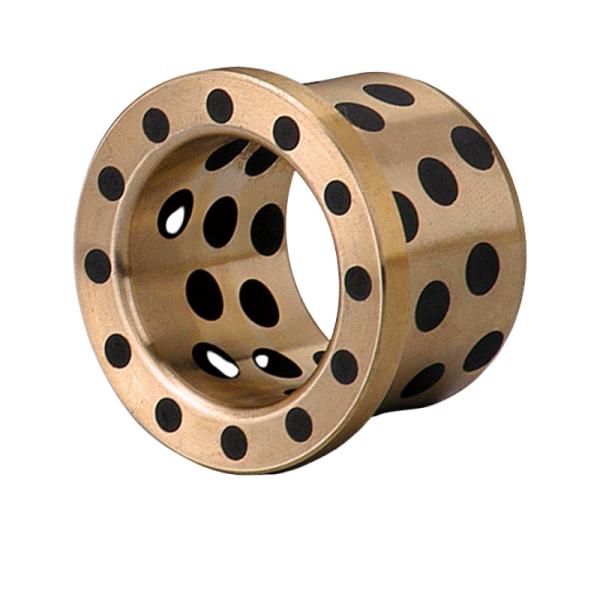

Graphite Plugged Oilless Bush Flange Straight Type
Graphite Plugged Oilless Bush Flange Straight Type
Graphite Plugged Oilless Bush Flange Straight Type
Graphite Plugged Oilless Bush Flange Straight Type
Specifications
Type :
Straight, Flanged, Washers Plate
Graphite Plugged Bushings :
Purchase Oilless Bush #500 Spherical Bearing (SPS) from China, Factory Automation & metal molding parts, industrial tools and consumables.
Brand Name :
bushing
Model Number :
Graphite Bronze Bearings
Certification :
ISO9001
Place of Origin :
Made in China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
7-25 work days
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Product :
Custom Design
Item :
bronze grafitado
Material :
CuZn25Al5Mn4Fe3 bronze
Bearing Bushing Factory Price :
tiffany@viiplus.com
Brand :
Oilless -graphite plugged bush
Advantages :
High Quality， Good Price
Feature :
wear-resistant copper alloys
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

The graphite-plugged oilless bush with flange, straight type, is a unique and efficient component designed for use in various mechanical systems. Constructed with graphite as its primary material, this bush offers exceptional wear resistance and durability.

Graphite, known for its natural lubricating properties, ensures smooth operation without the need for external lubrication. This feature not only simplifies maintenance but also extends the lifespan of the bush. The oilless design also makes it suitable for use in environments where oil or lubricant contamination is unacceptable.

The straight type design of this bush allows for easy installation and integration into various systems. The flange provides additional stability and support, ensuring a secure fit within the mechanical assembly.

The precision engineering of this graphite-plugged bush ensures a tight and secure fit, minimizing any potential for vibration or movement. This not only enhances the performance of the bush but also contributes to the overall stability and reliability of the mechanical system.

Wh you're upgrading an existing system or designing a new one, the graphite-plugged oilless bush with flange, straight type, is a great choice for achieving smooth and efficient operation. Its unique combination of durability, wear resistance, and oilless design makes it a cost-effective and reliable solution for various industrial applications.

SPF Oilless Flange Bush, JFB bearings,

Casting bronze with graphite plugs oilless bearings

Bushing - Brass Alloy, Straight, SPF oilless flange bush of graphite, Check out the variety of configurable, High tension brass with graphite plugs, Oilless -graphite plugged bush

Graphite plugged LG-2 bronze bush

These bearings are designed to accommodate a wide variety of application requirements demanded by today's equipment. Precise tolerances utilizing strategic plug location and plug compounds ensure performance delivery and lubrication-free service. This bearing style is available in standard inch, metric and made-to-order sizes. 500 series bearings provide extreme temperature limits and high load capacity performance. Available in journal style bearings and flat wear plate

graphite plugged LG-2 bronze bush

Flange Bushing (SPF)

Graphite oilless bushing/bearing inch size 18" id x 26" od x 18" L
Graphite lubrication on the ID face of the bearing will enable you to obtain long bearing life both at high operating temperatures and in applications lacking supplemental lubrication. Graphite is accomplished by grooving the I.D. and then pressing Graphite into the cavities under extremely high pressure.

Preferred Lubricating Plate & Bushing Part Partner for Precision Mold & Dies Manufacturing

We are Committed for Delivering the Finest Quality Oilless Bushing Products & Precision Bearings to our Clients
Engineering Services ( Product Design & Development )

Features

These bearings are designed to accommodate a wide variety of application requirements demanded by today's equipment. Precise tolerances utilizing strategic plug location and plug compounds ensure performance delivery and lubrication free service. This bearing style is available in standard inch, metric and made to order sizes. 500 series bearings provide extreme temperature limits and high load capacity performance. Available in journal style bearings and flat wear plate.

Applications

1) Heavy duty tractor and farm implement equipment
2) Mining equipment
3) Forestry equipment
4) Mixing tank bladeshaft support
5) Foundry, furnace and steel production equipment
6) HVAC applications
7) Heavy duty caster and wheel support bearings
8) Kiln kart veneer dryer applications, and possiblely other applications...
Graphite Plugged Oilless Bush Flange Straight Type

Flanged Bush Size:

Self lubricating, High-strength brass, CuZn25Al or eq, Maintenance free bearing and guide bushes, bronze with solid lubricant

ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L		 Flanged F t
JFB0810 SOBF 8-12-10 8 12 10 20 2
JFB0812 SOBF 8-12-12 8 12 12 20 2
JFB0815 SOBF 8-12-15 8 12 15 20 2
JFB1010 SOBF 10-14-10 10 14 10 22 2
JFB1012 SOBF 10-14-12 10 14 12 22 2
JFB1015 SOBF 10-14-15 10 14 15 22 2
JFB1017 SOBF 10-14-17 10 14 17 22 2
JFB1020 SOBF 10-14-20 10 14 20 22 2
JFB1210 SOBF 12-18-10 12 18 10 25 3
JFB1212 SOBF 12-18-12 12 18 12 25 3
JFB1215 SOBF 12-18-15 12 18 15 25 3
JFB1220 SOBF 12-18-20 12 18 20 25 3
JFB1225 SOBF 12-18-25 12 18 25 25 3
JFB1230 SOBF 12-18-30 12 18 30 25 3
JFB1310 SOBF 13-19-10 13 19 10 26 3
JFB1312 SOBF 13-19-12 13 19 12 26 3
JFB1315 SOBF 13-19-15 13 19 15 26 3
JFB1320 SOBF 13-19-20 13 19 20 26 3
JFB1325 SOBF 13-19-25 13 19 25 26 3
JFB1330 SOBF 13-19-30 13 19 30 26 3
JFB1415 SOBF 14-20-15 14 20 15 27 3
Embedded Solid Lubrication Bearings
Metric Flange Bushes
Flanged bush, self lubricating
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L		 Flanged F t
JFB1420 SOBF 14-20-20 14 20 20 27 3
JFB1425 SOBF 14-20-25 14 20 25 27 3
JFB1510 SOBF 15-21-10 15 21 10 28 3
JFB1512 SOBF 15-21-12 15 21 12 28 3
JFB1515 SOBF 15-21-15 15 21 15 28 3
JFB1520 SOBF 15-21-20 15 21 20 28 3
JFB1525 SOBF 15-21-25 15 21 25 28 3
JFB1530 SOBF 15-21-30 15 21 30 28 3
JFB1612 SOBF 16-22-12 16 22 12 29 3
JFB1615 SOBF 16-22-15 16 22 15 29 3
JFB1618 SOBF 16-22-18 16 22 18 29 3
JFB1620 SOBF 16-22-20 16 22 20 29 3
JFB1623 SOBF 16-22-23 16 22 23 29 3
JFB1625 SOBF 16-22-25 16 22 25 29 3
JFB1630 SOBF 16-22-30 16 22 30 29 3
JFB1635 SOBF 16-22-35 16 22 35 29 3
JFB1640 SOBF 16-22-40 16 22 40 29 3
JFB1815 SOBF 18-24-15 18 24 15 32 3
JFB1820 SOBF 18-24-20 18 24 20 32 3
JFB1825 SOBF 18-24-25 18 24 25 32 3
JFB1830 SOBF 18-24-30 18 24 30 32 3
JFB1835 SOBF 18-24-35 18 24 35 32 3
JFB1840 SOBF 18-24-40 18 24 40 32 3
JFB2015 SOBF 20-30-15 20 30 15 40 5
JFB2020 SOBF 20-30-20 20 30 20 40 5
JFB2025 SOBF 20-30-25 20 30 25 40 5
JFB2030 SOBF 20-30-30 20 30 30 40 5
JFB2035 SOBF 20-30-35 20 30 35 40 5
JFB2040 SOBF 20-30-40 20 30 40 40 5
JFB2515 SOBF 25-35-15 25 35 15 45 5
JFB2520 SOBF 25-35-20 25 35 20 45 5
JFB2525 SOBF 25-35-25 25 35 25 45 5
JFB2530 SOBF 25-35-30 25 35 30 45 5
JFB2535 SOBF 25-35-35 25 35 35 45 5
JFB2540 SOBF 25-35-40 25 35 40 45 5
JFB2550 SOBF 25-35-50 25 35 50 45 5
JFB3020 SOBF 30-40-20 30 40 20 50 5
JFB3025 SOBF 30-40-25 30 40 25 50 5
JFB3030 SOBF 30-40-30 30 40 30 50 5
JFB3035 SOBF 30-40-35 30 40 35 50 5
JFB3040 SOBF 30-40-40 30 40 40 50 5
JFB3050 SOBF 30-40-50 30 40 50 50 5
JFB31,520 SOBF 31,5-40-20 31,5 40 20 50 5
JFB31,530 SOBF 31,5-40-30 31,5 40 30 50 5
JFB31,535 SOBF 31,5-40-35 31,5 40 35 50 5
JFB31,540 SOBF 31,5-40-40 31,5 40 40 50 5
Embedded Solid Lubrication Bearings
Metric Flange Bushes
Flanged bush, self lubricating
ITEM NO Equivalent Code Inner Ø
d		 Outer Ø
D		 Length
L		 Flanged F t
JFB3520 SOBF 35-45-20 35 45 20 60 5
JFB3525 SOBF 35-45-25 35 45 25 60 5
JFB3530 SOBF 35-45-30 35 45 30 60 5
JFB3535 SOBF 35-45-35 35 45 35 60 5
JFB3540 SOBF 35-45-40 35 45 40 60 5
JFB3550 SOBF 35-45-50 35 45 50 60 5
JFB4020 SOBF 40-50-20 40 50 20 65 5
JFB4025 SOBF 40-50-25 40 50 25 65 5
JFB4030 SOBF 40-50-30 40 50 30 65 5
JFB4035 SOBF 40-50-35 40 50 35 65 5
JFB4040 SOBF 40-50-40 40 50 40 65 5
JFB4050 SOBF 40-50-50 40 50 50 65 5
JFB4530 SOBF 45-55-30 45 55 30 70 5
JFB4535 SOBF 45-55-35 45 55 35 70 5
JFB4540 SOBF 45-55-40 45 55 40 70 5
JFB4550 SOBF 45-55-50 45 55 50 70 5
JFB4560 SOBF 45-55-60 45 55 60 70 5
JFB5030 SOBF 50-60-30 50 60 30 75 5
JFB5035 SOBF 50-60-35 50 60 35 75 5
JFB5040 SOBF 50-60-40 50 60 40 75 5
JFB5050 SOBF 50-60-50 50 60 50 75 5
JFB5060 SOBF 50-60-60 50 60 60 75 5
JFB5540 SOBF 55-65-40 55 65 40 80 5
JFB5560 SOBF 55-65-60 55 65 60 80 5
JFB6040 SOBF 60-75-40 60 75 40 90 7,5
JFB6050 SOBF 60-75-50 60 75 50 90 7,5
JFB6080 SOBF 60-75-80 60 75 80 90 7,5
JFB6367,5 SOBF 63-75-67,5 63 75 67,5 85 7,5
JFB6560 SOBF 65-80-60 65 80 60 95 7,5
JFB7050 SOBF 70-85-50 70 85 50 105 7,5
JFB7080 SOBF 70-85-80 70 85 80 105 7,5
JFB7560 SOBF 75-90-60 75 90 60 110 7,5
JFB8060 SOBF 80-100-60 80 100 60 120 10
JFB8080 SOBF 80-100-80 80 100 80 120 10
JFB80100 SOBF 80-100-100 80 100 100 120 10
JFB9060 SOBF 90-110-60 90 110 60 130 10
JFB9080 SOBF 90-110-80 90 110 80 130 10
JFB10080 SOBF 100-120-80 100 120 80 150 10
JFB100100 SOBF 100-120-100 100 120 100 150 10
JFB12080 SOBF 120-140-80 120 140 80 170 10
JFB120100 SOBF 120-140-100 120 140 100 170 10
JFB13080 SOBF 130-150-80 130 150 80 180 10
JFB130100 SOBF 130-150-100 130 150 100 180 10
JFB14080 SOBF 140-160-80 140 160 80 190 10
JFB140100 SOBF 140-160-100 140 160 100 190 10
JFB150100 SOBF 150-170-100 150 170 100 200 10
JFB150120 SOBF 150-170-120 150 170 120 200 10
JFB160100 SOBF 160-180-100 160 180 100 210 10
JFB160120 SOBF 160-180-120 160 180 120 210 10
SIZE
8 ID x 12 OD x 12 LONG
40 ID x 50 OD x 30 LONG
40 ID x 50 OD x 40 T/L x 65 F/D x 5 F/T 1000
12.2 ID x 40 OD x 3 THICK (WITH FIXING HOLES)
MATERIAL :- CuZn25Al5 + GRAPHITE

Specifications:

JFB Flanged solid-Lubricating bearing

***Model: JFB5540 Oillesss bearing bush

***Size: 55x65x40 mm

***Flange OD (F): 80mm

***Flangethickness: 5mm

if you need other size that not listed in our store, please let us know, we can produce according to the size as you required, the more quantity, the cheaper price.

Base Material: CuZn24AL6Mn4
Base hardness: HB230(hb270)
Friction coef: <0.16
Temp limit: 300°C
Dynamic load limit: 100N/mm2
Load limit: under lm/min 25N/mm2
Sliding velocity limit: dry 0.4m/s, oil 5m/s
PV limit: 3.8N/mm *m/s

Structure

Solid lubricate embedded with metal such as bronze, embedded graphite and MoS2 within it as lubricant. Specific technology is adopted to firmly integrate lubricate itself and meanwhile leave evenly distributedspace within it so that the lubricant as a whole can absorb lubricating oil or grease over 20 percent ofits total volume.

Property and application

Working without oil or under oil inadequacy, friction heat drive oil and lubricant from inner side tosurface so as to reduce friction coefficient and improve wear-friction performance, used in successivecasting machines, steel rollers in metallography, mineral machines, ships, turbogenerators, hydraulic

turbines and injection molding machines for plastics.

Flange Bushing (SPF) size list

SPF-0812 SPF-2025
SPF-0815 SPF-2030
SPF-10080 SPF-2035
SPF-100100 SPF-2040
SPF-1010 SPF-2515
SPF-1012 SPF-2520
SPF-1015 SPF-2525
SPF-1017 SPF-2530
SPF-1020 SPF-2535
SPF-12080 SPF-2540
SPF-120100 SPF-2550
SPF-1210 SPF-3020
SPF-1212 SPF-3025
SPF-1215 SPF-3030
SPF-1220 SPF-3035
SPF-1225 SPF-3040
SPF-1230 SPF-3050
SPF-13080 SPF-3120
SPF-130100 SPF-3130
SPF-1310 SPF-3135
SPF-1312 SPF-3140
SPF-1315 SPF-3520
SPF-1320 SPF-3525
SPF-1325 SPF-3530
SPF-1330 SPF-3535
SPF-14080 SPF-3540
SPF-140100 SPF-3550
SPF-1415 SPF-4020
SPF-1420 SPF-4025
SPF-1425 SPF-4030
SPF-150100 SPF-4035
SPF-150120 SPF-4040
SPF-1510 SPF-4050
SPF-1512 SPF-4530
SPF-1515 SPF-4535
SPF-1520 SPF-4540
SPF-1525 SPF-4550
SPF-1530 SPF-4560
SPF-160100 SPF-5030
SPF-160120 SPF-5035
SPF-1612 SPF-5040
SPF-1615 SPF-5050
SPF-1618 SPF-5060
SPF-1620 SPF-5540
SPF-1623 SPF-5560
SPF-1625 SPF-6040
SPF-1630 SPF-6050
SPF-1635 SPF-6060
SPF-1640 SPF-6080
SPF-1815 SPF-6367
SPF-1820 SPF-6560
SPF-1825 SPF-7050
SPF-1830 SPF-7080
SPF-1835 SPF-7560
SPF-1840 SPF-80100
SPF-2015 SPF-8060
SPF-2020 SPF-8080
Minimum order quantity SPF-9060
(mm) SPF-9080
(mm) Overall Length L
(mm) Operating Temperature Range
Solid lubricant plain bearings are made from wear-resistant copper alloys with inserts made from solid lubricant.

The solid lubricant used, based on graphite and additives, is ideally suited for general use and normal atmospheres.
For applications in which the bearings are exposed to water or seawater, there is a special solid lubricant based on MoS2 and as well as other additives.

Technical specifications
Material abbreviation
Base material Special brass Rotguß (Rg7) Aluminiumbronze (CuAl10Ni) Bronze (Gbz 12)
CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
permissible
bearing load		 N/mm2 100 60 50 70
max.
sliding speed		 m/s 0,25 0,17 0,33 0,17
max. pv N/mm2*m/s 3,3 1,0 1,0 1,3
density g/cm3 8.0 8.8 7.8 8.8
hardness HB >210 >70 >150 >80
tensile strenght N/mm2 >750 >200 >500 >360
Stretch limit N/mm2 >450 >90 >260 >150
strain % >12 >15 >10 >8

Coefficient of thermal expansion		 ϑ 19 * 10 -6 K -1 18 * 10 -6 K -1 16 * 10 -6 K -1 18 * 10 -6 K -1
Temperature range °C -40 to +300 -40 to +400 -40 to +400 -40 to +400
Coefficient of friction µ 0,03-0,20 0,03-0,20 0,03-0,20 0,03-0,20

Graphite Plugged Oilless Bush Flange Straight Type

JDB · Solid Self-Lubricating Inlaid Bearing · L tol. -0.10/-0.30 · Unit: mm
No. Part No. Unique Key d Bore (mm) D OD (mm) L Length (mm) L Tol. d Tol. (F7) D Tol. (m6) Remarks
1 81208 JDB-08-12-8 8 12 8 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
2 81210 JDB-08-12-10 8 12 10 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
3 81212 JDB-08-12-12 8 12 12 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
4 81215 JDB-08-12-15 8 12 15 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
5 101408 JDB-10-14-8 10 14 8 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
6 101410 JDB-10-14-10 10 14 10 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
7 101412 JDB-10-14-12 10 14 12 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
8 101415 JDB-10-14-15 10 14 15 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
9 101416 JDB-10-14-16 10 14 16 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
10 101420 JDB-10-14-20 10 14 20 -0.10/-0.30 +0.028/+0.013 +0.018/+0.007
11 121810 JDB-12-18-10 12 18 10 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
12 121812 JDB-12-18-12 12 18 12 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
13 121815 JDB-12-18-15 12 18 15 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
14 121816 JDB-12-18-16 12 18 16 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
15 121820 JDB-12-18-20 12 18 20 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
16 121825 JDB-12-18-25 12 18 25 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
17 121830 JDB-12-18-30 12 18 30 -0.10/-0.30 +0.034/+0.016 +0.018/+0.007
18 131910 JDB-13-19-10 13 19 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
19 131912 JDB-13-19-12 13 19 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
20 131915 JDB-13-19-15 13 19 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
21 131916 JDB-13-19-16 13 19 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
22 131920 JDB-13-19-20 13 19 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
23 131925 JDB-13-19-25 13 19 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
24 131930 JDB-13-19-30 13 19 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
25 142010 JDB-14-20-10 14 20 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
26 142012 JDB-14-20-12 14 20 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
27 142015 JDB-14-20-15 14 20 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
28 142016 JDB-14-20-16 14 20 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
29 142020 JDB-14-20-20 14 20 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
30 142025 JDB-14-20-25 14 20 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
31 142030 JDB-14-20-30 14 20 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
32 152110 JDB-15-21-10 15 21 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
33 152112 JDB-15-21-12 15 21 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
34 152115 JDB-15-21-15 15 21 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
35 152116 JDB-15-21-16 15 21 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
36 152120 JDB-15-21-20 15 21 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
37 152125 JDB-15-21-25 15 21 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
38 152130 JDB-15-21-30 15 21 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
39 152135 JDB-15-21-35 15 21 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
40 162210 JDB-16-22-10 16 22 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
41 162212 JDB-16-22-12 16 22 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
42 162215 JDB-16-22-15 16 22 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
43 162216 JDB-16-22-16 16 22 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
44 162220 JDB-16-22-20 16 22 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
45 162225 JDB-16-22-25 16 22 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
46 162230 JDB-16-22-30 16 22 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
47 162235 JDB-16-22-35 16 22 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
48 162240 JDB-16-22-40 16 22 40 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
49 182410 JDB-18-24-10 18 24 10 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
50 182412 JDB-18-24-12 18 24 12 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
51 182415 JDB-18-24-15 18 24 15 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
52 182416 JDB-18-24-16 18 24 16 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
53 182420 JDB-18-24-20 18 24 20 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
54 182425 JDB-18-24-25 18 24 25 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
55 182430 JDB-18-24-30 18 24 30 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
56 182435 JDB-18-24-35 18 24 35 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
57 182440 JDB-18-24-40 18 24 40 -0.10/-0.30 +0.034/+0.016 +0.021/+0.008
58 202810 JDB-20-28-10 20 28 10 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
59 202812 JDB-20-28-12 20 28 12 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
60 202815 JDB-20-28-15 20 28 15 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
61 202816 JDB-20-28-16 20 28 16 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
62 202820 JDB-20-28-20 20 28 20 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
63 202825 JDB-20-28-25 20 28 25 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
64 202830 JDB-20-28-30 20 28 30 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
65 202835 JDB-20-28-35 20 28 35 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
66 202840 JDB-20-28-40 20 28 40 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
67 202850 JDB-20-28-50 20 28 50 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
68 223212 JDB-22-32-12 22 32 12 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
69 223215 JDB-22-32-15 22 32 15 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
70 223216 JDB-22-32-16 22 32 16 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
71 223220 JDB-22-32-20 22 32 20 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
72 223225 JDB-22-32-25 22 32 25 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
73 223230 JDB-22-32-30 22 32 30 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
74 223235 JDB-22-32-35 22 32 35 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
75 223240 JDB-22-32-40 22 32 40 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
76 223250 JDB-22-32-50 22 32 50 -0.10/-0.30 +0.041/+0.020 +0.021/+0.008
77 253312 JDB-25-33-12 25 33 12 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
78 253315 JDB-25-33-15 25 33 15 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
79 253316 JDB-25-33-16 25 33 16 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
80 253320 JDB-25-33-20 25 33 20 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
81 253325 JDB-25-33-25 25 33 25 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
82 253330 JDB-25-33-30 25 33 30 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
83 253335 JDB-25-33-35 25 33 35 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
84 253340 JDB-25-33-40 25 33 40 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
85 253350 JDB-25-33-50 25 33 50 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
86 253360 JDB-25-33-60 25 33 60 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
87 303812 JDB-30-38-12 30 38 12 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
88 303815 JDB-30-38-15 30 38 15 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
89 303816 JDB-30-38-16 30 38 16 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
90 303820 JDB-30-38-20 30 38 20 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
91 303825 JDB-30-38-25 30 38 25 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
92 303830 JDB-30-38-30 30 38 30 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
93 303835 JDB-30-38-35 30 38 35 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
94 303840 JDB-30-38-40 30 38 40 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
95 303850 JDB-30-38-50 30 38 50 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
96 303860 JDB-30-38-60 30 38 60 -0.10/-0.30 +0.041/+0.020 +0.025/+0.009
97 354520 JDB-35-45-20 35 45 20 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
98 354525 JDB-35-45-25 35 45 25 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
99 354530 JDB-35-45-30 35 45 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
100 354535 JDB-35-45-35 35 45 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
101 354540 JDB-35-45-40 35 45 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
102 354550 JDB-35-45-50 35 45 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
103 354560 JDB-35-45-60 35 45 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
104 354570 JDB-35-45-70 35 45 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
105 405020 JDB-40-50-20 40 50 20 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
106 405025 JDB-40-50-25 40 50 25 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
107 405030 JDB-40-50-30 40 50 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
108 405035 JDB-40-50-35 40 50 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
109 405040 JDB-40-50-40 40 50 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
110 405050 JDB-40-50-50 40 50 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
111 405060 JDB-40-50-60 40 50 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
112 405070 JDB-40-50-70 40 50 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
113 405080 JDB-40-50-80 40 50 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
114 455530 JDB-45-55-30 45 55 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
115 455535 JDB-45-55-35 45 55 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
116 455540 JDB-45-55-40 45 55 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
117 455550 JDB-45-55-50 45 55 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
118 455560 JDB-45-55-60 45 55 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
119 455570 JDB-45-55-70 45 55 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
120 455580 JDB-45-55-80 45 55 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
121 506030 JDB-50-60-30 50 60 30 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
122 506035 JDB-50-60-35 50 60 35 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
123 506040 JDB-50-60-40 50 60 40 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
124 506050 JDB-50-60-50 50 60 50 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
125 506060 JDB-50-60-60 50 60 60 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
126 506070 JDB-50-60-70 50 60 70 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
127 506080 JDB-50-60-80 50 60 80 -0.10/-0.30 +0.050/+0.025 +0.025/+0.009
128 506230 JDB-50-62-30 50 62 30 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
129 506235 JDB-50-62-35 50 62 35 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
130 506240 JDB-50-62-40 50 62 40 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
131 506250 JDB-50-62-50 50 62 50 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
132 506260 JDB-50-62-60 50 62 60 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
133 506270 JDB-50-62-70 50 62 70 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
134 506530 JDB-50-65-30 50 65 30 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
135 506535 JDB-50-65-35 50 65 35 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
136 506540 JDB-50-65-40 50 65 40 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
137 506550 JDB-50-65-50 50 65 50 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
138 506560 JDB-50-65-60 50 65 60 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
139 506570 JDB-50-65-70 50 65 70 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
140 506580 JDB-50-65-80 50 65 80 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
141 5065100 JDB-50-65-100 50 65 100 -0.10/-0.30 +0.050/+0.025 +0.030/+0.011
142 557030 JDB-55-70-30 55 70 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
143 557035 JDB-55-70-35 55 70 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
144 557040 JDB-55-70-40 55 70 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
145 557050 JDB-55-70-50 55 70 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
146 557060 JDB-55-70-60 55 70 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
147 557070 JDB-55-70-70 55 70 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
148 557080 JDB-55-70-80 55 70 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
149 5570100 JDB-55-70-100 55 70 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
150 607430 JDB-60-74-30 60 74 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
151 607435 JDB-60-74-35 60 74 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
152 607440 JDB-60-74-40 60 74 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
153 607450 JDB-60-74-50 60 74 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
154 607460 JDB-60-74-60 60 74 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
155 607470 JDB-60-74-70 60 74 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
156 607480 JDB-60-74-80 60 74 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
157 6074100 JDB-60-74-100 60 74 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
158 607530 JDB-60-75-30 60 75 30 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
159 607535 JDB-60-75-35 60 75 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
160 607540 JDB-60-75-40 60 75 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
161 607550 JDB-60-75-50 60 75 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
162 607560 JDB-60-75-60 60 75 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
163 607570 JDB-60-75-70 60 75 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
164 607580 JDB-60-75-80 60 75 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
165 6075100 JDB-60-75-100 60 75 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
166 637535 JDB-63-75-35 63 75 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
167 637540 JDB-63-75-40 63 75 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
168 637550 JDB-63-75-50 63 75 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
169 637560 JDB-63-75-60 63 75 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
170 637570 JDB-63-75-70 63 75 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
171 637580 JDB-63-75-80 63 75 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
172 6375100 JDB-63-75-100 63 75 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
173 658035 JDB-65-80-35 65 80 35 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
174 658040 JDB-65-80-40 65 80 40 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
175 658050 JDB-65-80-50 65 80 50 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
176 658060 JDB-65-80-60 65 80 60 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
177 658070 JDB-65-80-70 65 80 70 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
178 658080 JDB-65-80-80 65 80 80 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
179 6580100 JDB-65-80-100 65 80 100 -0.10/-0.30 +0.060/+0.030 +0.030/+0.011
180 708535 JDB-70-85-35 70 85 35 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
181 708540 JDB-70-85-40 70 85 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
182 708550 JDB-70-85-50 70 85 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
183 708560 JDB-70-85-60 70 85 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
184 708570 JDB-70-85-70 70 85 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
185 708580 JDB-70-85-80 70 85 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
186 7085100 JDB-70-85-100 70 85 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
187 709035 JDB-70-90-35 70 90 35 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
188 709040 JDB-70-90-40 70 90 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
189 709050 JDB-70-90-50 70 90 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
190 709060 JDB-70-90-60 70 90 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
191 709070 JDB-70-90-70 70 90 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
192 709080 JDB-70-90-80 70 90 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
193 7090100 JDB-70-90-100 70 90 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
194 759040 JDB-75-90-40 75 90 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
195 759050 JDB-75-90-50 75 90 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
196 759060 JDB-75-90-60 75 90 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
197 759070 JDB-75-90-70 75 90 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
198 759080 JDB-75-90-80 75 90 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
199 7590100 JDB-75-90-100 75 90 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
200 759540 JDB-75-95-40 75 95 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
201 759550 JDB-75-95-50 75 95 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
202 759560 JDB-75-95-60 75 95 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
203 759570 JDB-75-95-70 75 95 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
204 759580 JDB-75-95-80 75 95 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
205 7595100 JDB-75-95-100 75 95 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
206 7595120 JDB-75-95-120 75 95 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
207 809640 JDB-80-96-40 80 96 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
208 809650 JDB-80-96-50 80 96 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
209 809660 JDB-80-96-60 80 96 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
210 809670 JDB-80-96-70 80 96 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
211 809680 JDB-80-96-80 80 96 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
212 8096100 JDB-80-96-100 80 96 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
213 8096120 JDB-80-96-120 80 96 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
214 8096130 JDB-80-96-130 80 96 130 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
215 8010040 JDB-80-100-40 80 100 40 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
216 8010050 JDB-80-100-50 80 100 50 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
217 8010060 JDB-80-100-60 80 100 60 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
218 8010070 JDB-80-100-70 80 100 70 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
219 8010080 JDB-80-100-80 80 100 80 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
220 80100100 JDB-80-100-100 80 100 100 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
221 80100120 JDB-80-100-120 80 100 120 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
222 80100130 JDB-80-100-130 80 100 130 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
223 80100140 JDB-80-100-140 80 100 140 -0.10/-0.30 +0.060/+0.030 +0.035/+0.013
224 9011050 JDB-90-110-50 90 110 50 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
225 9011060 JDB-90-110-60 90 110 60 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
226 9011070 JDB-90-110-70 90 110 70 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
227 9011080 JDB-90-110-80 90 110 80 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
228 90110100 JDB-90-110-100 90 110 100 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
229 90110120 JDB-90-110-120 90 110 120 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
230 90110130 JDB-90-110-130 90 110 130 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
231 90110140 JDB-90-110-140 90 110 140 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
232 10012060 JDB-100-120-60 100 120 60 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
233 10012070 JDB-100-120-70 100 120 70 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
234 10012080 JDB-100-120-80 100 120 80 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
235 100120100 JDB-100-120-100 100 120 100 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
236 100120120 JDB-100-120-120 100 120 120 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
237 100120130 JDB-100-120-130 100 120 130 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
238 100120140 JDB-100-120-140 100 120 140 -0.10/-0.30 +0.071/+0.036 +0.035/+0.013
239 11013080 JDB-110-130-80 110 130 80 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
240 110130100 JDB-110-130-100 110 130 100 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
241 110130120 JDB-110-130-120 110 130 120 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
242 110130130 JDB-110-130-130 110 130 130 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
243 110130140 JDB-110-130-140 110 130 140 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
244 12014080 JDB-120-140-80 120 140 80 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
245 120140100 JDB-120-140-100 120 140 100 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
246 120140120 JDB-120-140-120 120 140 120 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
247 120140130 JDB-120-140-130 120 140 130 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
248 120140140 JDB-120-140-140 120 140 140 -0.10/-0.30 +0.071/+0.036 +0.040/+0.015
249 125145100 JDB-125-145-100 125 145 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
250 125145120 JDB-125-145-120 125 145 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
251 125145130 JDB-125-145-130 125 145 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
252 125145140 JDB-125-145-140 125 145 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
253 130150100 JDB-130-150-100 130 150 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
254 130150120 JDB-130-150-120 130 150 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
255 130150130 JDB-130-150-130 130 150 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
256 130150140 JDB-130-150-140 130 150 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
257 130150150 JDB-130-150-150 130 150 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
258 140160100 JDB-140-160-100 140 160 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
259 140160120 JDB-140-160-120 140 160 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
260 140160130 JDB-140-160-130 140 160 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
261 140160140 JDB-140-160-140 140 160 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
262 140160150 JDB-140-160-150 140 160 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
263 150170100 JDB-150-170-100 150 170 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
264 150170120 JDB-150-170-120 150 170 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
265 150170130 JDB-150-170-130 150 170 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
266 150170140 JDB-150-170-140 150 170 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
267 150170150 JDB-150-170-150 150 170 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
268 160180100 JDB-160-180-100 160 180 100 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
269 160180120 JDB-160-180-120 160 180 120 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
270 160180130 JDB-160-180-130 160 180 130 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
271 160180140 JDB-160-180-140 160 180 140 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015
272 160180150 JDB-160-180-150 160 180 150 -0.10/-0.30 +0.083/+0.043 +0.040/+0.015

Custom Design


All kinds of sliding elements can be supplied or produced on request.
Please contact us for more information.

WE ARE A PROFESSIONAL
SELF-LUBRICATING BEARING MANUFACTURER & SUPPLIER
Graphite Plugged Oilless Bush Flange Straight Type
GET A FREE QUOTE ONLINE NOW !

Send your message to this supplier
Send Now

Graphite Plugged Oilless Bush Flange Straight Type

Ask Latest Price
Product Detail
Type :
Straight, Flanged, Washers Plate
Graphite Plugged Bushings :
Purchase Oilless Bush #500 Spherical Bearing (SPS) from China, Factory Automation & metal molding parts, industrial tools and consumables.
Brand Name :
bushing
Model Number :
Graphite Bronze Bearings
Certification :
ISO9001
Place of Origin :
Made in China
Contact Supplier
Graphite Plugged Oilless Bush Flange Straight Type
Graphite Plugged Oilless Bush Flange Straight Type

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member
9 Years
zhejiang
Business Type :
Importer, Exporter, Seller, Other
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Graphite Plugged Bushings
MachineU China Products Tools & Hardware Hardware Flanges
Contact Supplier
Submit Requirement
