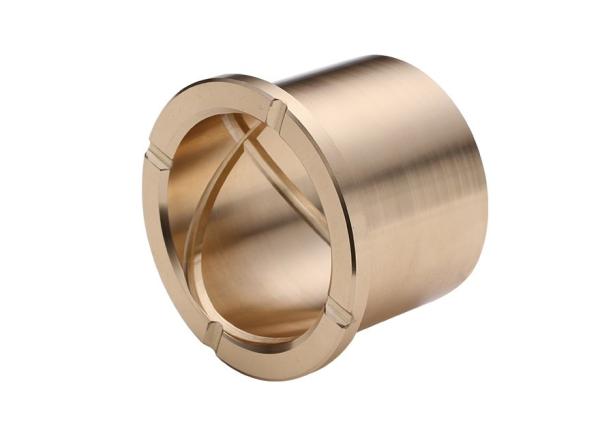

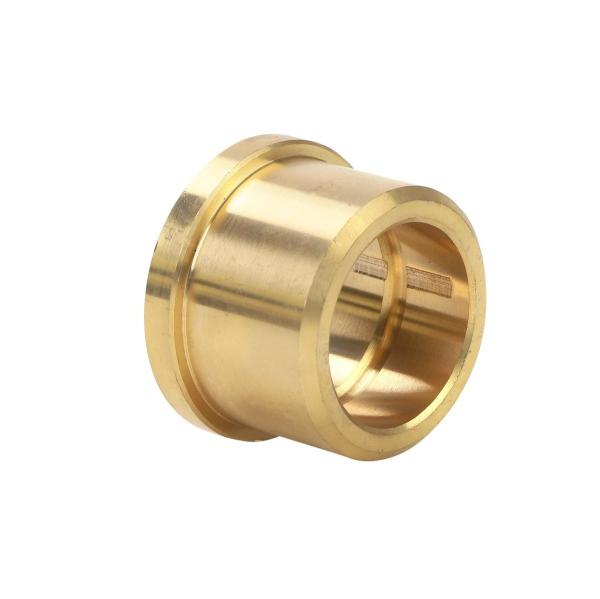

Metallic C86300 Bronze Graphite Bushings Wear Resistant
Metallic C86300 Bronze Graphite Bushings Wear Resistant
Metallic C86300 Bronze Graphite Bushings Wear Resistant
Metallic C86300 Bronze Graphite Bushings Wear Resistant
Specifications
Brand Name :
VIIPLUS
Model Number :
Graphite Bronze Bearings
Certification :
ISO9001
Place of Origin :
Made in China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Metallic-OILES-bearing
Delivery Time :
7-25 work days
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Brand :
Metallic Solid Lubricant Plain Bearings
Type :
Straight, Flanged, Washers Plate
Material :
C86300 bronze
Advantages :
High Quality， Good Price
Product :
Custom Design
Feature :
wear-resistant copper alloys
Bearing Bushing Factory Price :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Item :
bronze grafitado
Graphite Plugged Bushings :
Purchase Oilless Bush #500 Spherical Bearing (SPS) from China, Factory Automation & metal molding parts, industrial tools and consumables.
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

Metallic C86300 Bronze Graphite Bushings are wear-resistant components designed for use in various industrial applications. Constructed from a combination of bronze and graphite, these bushings offer exceptional durability and performance. The bronze material provides strength and corrosion resistance, while the graphite enhances lubrication and reduces friction, resulting in smoother operation and longer service life. The wear-resistant properties of these bushings make them suitable for high-load and high-speed applications, where durability and reliability are paramount.

C86300 Material Bronze Bushes

Solid Casting Bronze Bearing C86300, CuZn25Al6Fe3Mn3, CuZn25Al5, CC762S, 2.0598, G-SoMs F75 bushing

Discover our C86300 Material Bronze Bushes products,

C86300 MANGANESE BRONZE
C86300 (CuZn25Al6Fe3Mn3, CuZn25Al5, CC762S) is known for its high strength and hardness, use of manganese as an alloying agent, and high levels of zinc. Besides its excellent mechanical qualities, C86300 also has good corrosion resistance.

C86300 (CuZn25Al6Fe3Mn3, CuZn25Al5, CC762S) for high load, low speed applications including Industrial Bearings, Gears, Valve Stems, Bushings, Cams, Wear Rings for Pressing Dies for Wood Pulp Industry, HighStrength Machine Parts, Hooks, Frames, Shafts, Marine ...etc.
• Chemical Composition C86300 MANGANESE BRONZE
Cu Sn Pb Zn Fe Ni Sb P S Al Mn Si
60.00-66.00 0.2 0.2 22.00-28.00 2.00-4.00 1.0A N/A N/A N/A 5.00-7.50 2.50-5.00 N/A
• Mechanical Properties C86300 MANGANESE BRONZE
Tensile Strength
(min)		 Yield Strength
(at .5% extention under load min)		 Elongation
(in 2in. or 50mm min, %)		 Brinell Hardness
(min)		 Remarks
Ksi MPa Ksi MPa - - -
110 758 62 427 14 210 -

Preferred Bronze Bushes Part Partner for Precision Bronze Bearing Manufacturing

We are Committed for Delivering the Finest Quality Bronze Bushing Products & Precision Bearings to our Clients

Engineering Services ( Product Design & Development )

Flange size bronze bearings are made from wear-resistant copper alloys with groove or sleeve bushing.

High-strength bronze bushes bearings

Metallic C86300 Bronze Graphite Bushings Wear Resistant

Chemical Requirements
Copper
Alloy
UNS No.		 Composition, % max, except as indicated
Nickel
Copper Tin Lead Zinc Iron Including Aluminum Manganese Antimony Sulfur Phosphorus Silicon
Cobalt
C86300 60.0–66.0 0.20 0.20 22.0–28.0 2.0–4.0 1.0A 5.0–7.5 2.5–5.0 ... ... ... ...
C90500 86.0–89.0 9.0–11.0 0.30 1.0–3.0 0.20 1.0A 0.005 ... 0.20 0.05 0.05B 0.005
C91100 82.0–85.0 15.0–17.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C91300 79.0–82.0 18.0–20.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C93700 78.0–82.0 9.0–11.0 8.0–11.0 0.8 0.7C 0.50A 0.005 ... 0.50 0.08 0.10B 0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.

C Iron shall be 0.35 % max. when used for steel-backed.
TEM DESCRIPTION SIZE
1 Bronze Bushes C86300 Material BB225X170-1
2 Bronze Bushes C86300 Material BB290X220-1
3 Bronze Bushes C86300 Material BB270X190-1
4 Bronze Bushes C86300 Material BB290x190-1
5 Bronze Bushes C86300 Material BB230x230-1
6 Bronze Bushes C86300 Material BB210x205-1
7 Bronze Bushes C86300 Material BB190x210-1
8 Bronze Bushes C86300 Material BB185x180-1
9 Bronze Bushes C86300 Material BB185X150-1
10 Bronze Bushes C86300 Material BB170x175-1
11 Bronze Bushes C86300 Material BB160x165-1
12 Bronze Bushes C86300 Material BB105x115-1
13 Bronze Bushes C86300 Material BB80x90-1
14 Bronze Bushes C86300 Material BB215x210-2
15 Bronze Bushes C86300 Material BB205X210-2
16 Bronze Bushes C86300 Material BB255X205-2
17 Bronze Bushes C86300 Material BB280X225-2
18 Bronze Bushes C86300 Material BB280X255-3( drawing)
