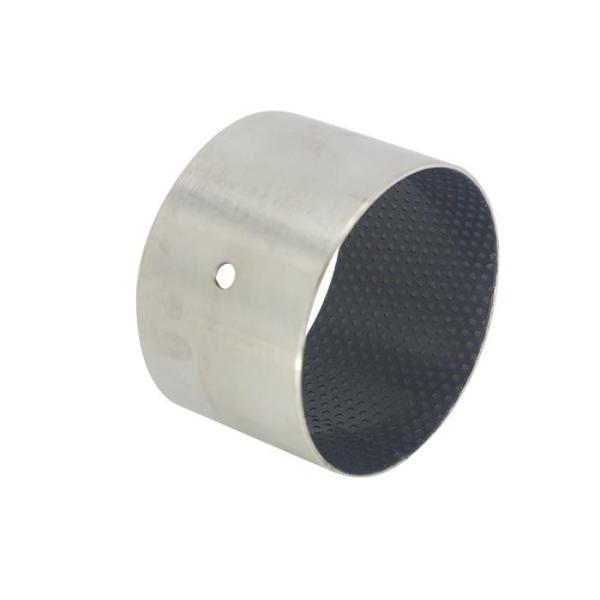

CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating
CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating
CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating
CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating
CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating
CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating
Specifications
Brand Name :
viiplus.com
Model Number :
PVDF
Certification :
Plain Sleeve Bearings Standards met: RoHS
Place of Origin :
china
MOQ :
Bronze Precision Wear Plates & Lubricating Parts made to order
Price :
Contact us
Payment Terms :
TT IN ADVANCE,L/C,Western Union
Supply Ability :
bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Delivery Time :
Shipped in 3-20 work days
Packaging Details :
Standard package, Pallet or container, As per customized specifications
Meterial :
Steel +copper + PVDF
Plating :
Tin or copper
Types :
PVDF Composite Gleitlager Anlaufscheiben
Application: :
impact load and dusty environment
Parts :
Bushings thrust washers strips
Categories :
Plain bearings
Get A Better Quote :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
High Light: :
Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger :
A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

CSB-22 PVDF Composite Metal Polymer Plain Bearings with Tin Plating offer a unique combination of properties that make them suitable for various demanding applications. PVDF, or polyvinylidene fluoride, is a highly resistant polymer that provides excellent chemical stability and corrosion resistance. The composite metal structure adds strength and durability, while the tin plating enhances the bearings' surface properties, improving wear resistance and friction behavior.

These bearings are designed to perform reliably in environments with high loads, temperatures, and chemical exposure. The tin plating not only improves wear resistance but also provides a smooth surface for improved lubrication, reducing friction and heat generation. This results in longer bearing life, reduced maintenance requirements, and improved overall system performance.

Wh used in industrial machinery, automotive components, or other critical applications, CSB-22 PVDF Composite Metal Polymer Plain Bearings with Tin Plating are a reliable choice for those seeking high-performance bearings with excellent wear resistance and corrosion protection.

CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating

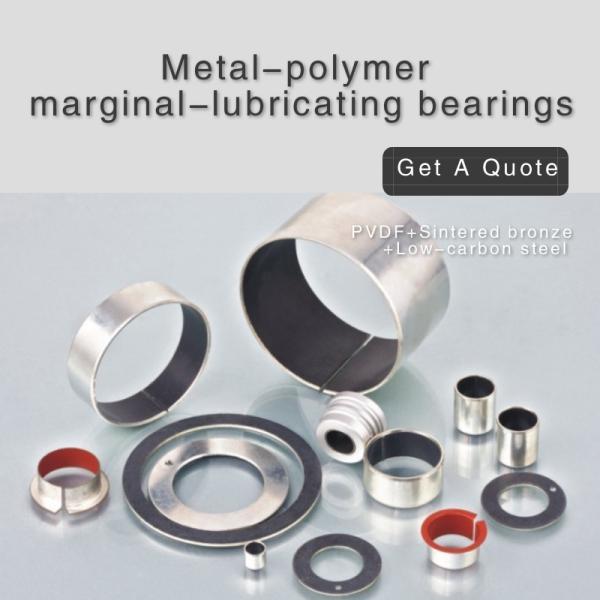

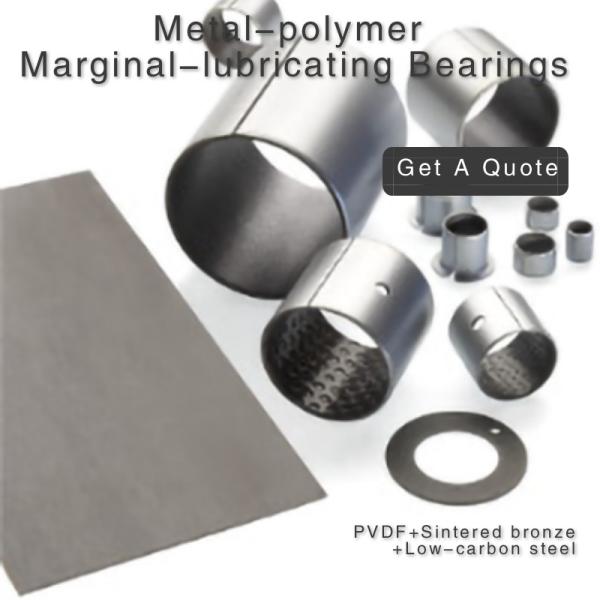

CSB-22 PVDF Metal-polymer marginal-lubricating bearings

Viiplus PVDF-based metal-polymer materials offer exceptionally low friction and high wear. Superior PVDF and thermoplastic-based metal-polymer bearings. Contact us for a free quote! Space and weight savings. Operating silently. Resistant to corrosion.

Features

It is suitable for boundary lubricating applications. It is recommended to lubricate the components with grease before assembling. CSB-22M is a material with PVDF thickness of 0.1-0.2mm without oil deposits on the surface, it is a machinable material after assembling.

CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating

Structure:

1.PVDF thickness 0.20~0.35mm, provides good wear resistance and lower friction coefficients even under the poor lubricating conditions.

2.Sintered bronze thickness 0.20-0.35mm, provides strong mechanical bond and excellent thermal conductivity.

3.Low-carbon steel, provides mechanical strength and thermal conductivity.

Tech. Data

Max. load Static 250N/mm² Operation Temperature range -50°C~+130°C ;
Very low speed 140N/mm² Max.speed Greased 2m/s
Rotating oscillating 70N/mm² Continuous oiling >3m/s
Max. PV Grease Lubricated 3.6N/mm²*m/s Thermal conductivity 50W(m*K)-1
Coefficient of thermal expansion 11*10-6*K-1 Friction coefficient 0.03~0.20
The oil deposits have to be filled with grease before bearing assembling.

Typical Applications

The material has good wear resistance and it is suitable for middle to high load applications under the work conditions of impact load and dusty environment. A pre-lubricating is necessary before assembling. The applications of this material include the commercial vehicle axel, brake system,suspension system, air compressors, hydraulic piston pumps, motors, as well as agriculture machinery, forest machinery and material handling machinery.

CSB-22 PVDF Composite Metal Polymer Plain Bearings Tin Plating

Application of PVDF in High Temperature Bearings

Because the PVDF high temperature bearing seat should not only meet the requirements of high-precision stamping bearing seat, but also meet the requirements of high temperature stamping bearing seat, the following two points need to be taken into account when considering the fit and clearance of PVDF high temperature bearing seat:

1. Size change and hardness change from room temperature to high temperature;

2. Force system change and shape change caused by centrifugal force at high speed.

PVDF high temperature bearing pedestal mounted for shaft and hole punching parts of the bearing should be higher than the general requirements of dimensional accuracy, form and position accuracy, especially the alignment of the hole or shaft neck and shoulder vertical degree, it is important to note that when considering these problems, must pay attention to the PVDF high speed and high temperature factors in the operation of high temperature bearing seat.

The PVDF high temperature bearing seat is required to have the best clearance under the working condition, that is, at the working temperature, and this clearance is formed under the precise alignment of the center of the inner and outer ring ball groove.At the same time, because the PVDF high temperature bearing seat strives to reduce the relative sliding and internal friction, it is best not to adjust the clearance of the PVDF high temperature bearing seat by the method of relative dislocation of the inner and outer rings along the axial direction.
