Bronze, an alloy of copper primarily mixed with tin, has long been renowned for its exceptional mechanical properties, corrosion resistance, and casting abilities. When bronze is combined with solid lubricant and fashioned into a straight bushing with specific dimensions of 45mm inner diameter (ID), 55mm outer diameter (OD), and 40mm length, it creates a unique component that offers superior performance in various industrial applications.
The embedded solid lubricant within the bronze bushing serves to significantly reduce friction and wear, thus enhancing the operational efficiency and lifespan of the bushing. This combination of bronze and solid lubricant ensures smooth and reliable operation even in high-temperature or high-pressure environments.
The bushing's dimensions, specifically the 45mm ID, 55mm OD, and 40mm length, are carefully chosen to fit within specific mechanical systems and devices. Wh it's used in a machinery's rotating assembly or as a guiding component in a linear motion system, this bronze bushing with embedded solid lubricant ensures precision and durability.
In summary, the bronze with embedded solid lubricant straight bushing, with its specific dimensions of 45mm ID, 55mm OD, and 40mm length, offers a robust and long-lasting solution for various industrial applications where friction reduction and wear resistance are critical.

Graphite Plugged Bushings

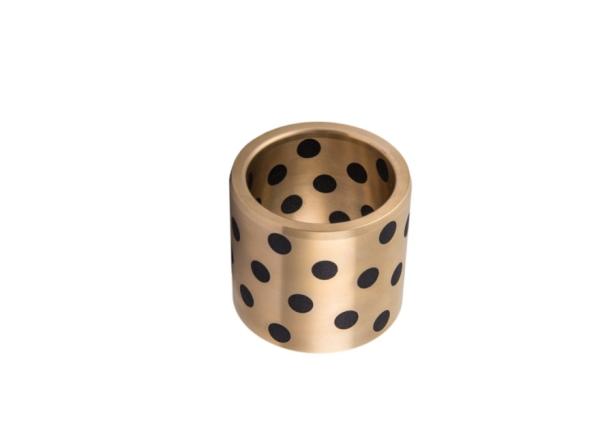

Tuleja SOB 455540 - Straight Bushing - 45 mm ID, 55 mm OD, 40 mm Length, Bronze with Embedded Solid Lubricant Material
Grease groove bearing - Click here to display the page: https://www.viiplus.com

Graphite copper sleeve is a self-lubricating bearing with high strength copper alloy as the base material, and holes are machined on its working surface and filled with solid lubricant in a certain proportion according to the working conditions.This copper alloy embedded solid lubricant bearing combines the high bearing capacity and wear resistance of the copper alloy with the self-lubricating property of the solid lubricant, which eliminates the need for refueling and maintenance during use.Especially suitable for high load, high temperature, low speed and other parts that can not be refueling or difficult to form oil film.

Product description

Serviceable without the need for lubrication
Demonstrates high performance under middle-load and middle-speed operations
Usable at high temperatures
Has superior chemical and corrosion resistances

Specification:

bore diameter: 45 mm
maximum p value: 15 N/mm2;Static 49 N/mm2
outside diameter: 55 mm
maximum v value: Dry 0.40;Periodic Lubrication 0.85 m/s
overall length: 40 mm
material specification: 500B
sleeve bearing type: Plain Sleeve
standards met: RoHS
bearing material: Bronze with Embedded Solid Lubricant
series: JDB series
operating temperature range: Periodic Lubrication -40 to +302 F, Dry -40 to +482
additional details: Lead Free
maximum pv value: Periodic Lubrication 1.65 N/mm2 x m/s, Dry 1.00

Product advantages

● it can be used for a long time without maintenance;
● designed for high static load and dynamic load;
● with a very low coefficient of friction, no "adhesion" phenomenon;
● dust resistance, corrosion resistance, impact resistance and edge load resistance;
● metal substrate has good shock absorption capacity;
● can be used in a wide temperature range;
● suitable for reciprocating, rotating and swinging and other starting frequent but difficult to form oil film occasions;
● with very low wear rate, long service life.
