Friction is a primary source of energy loss and wear in mechanical systems. Self-lubricating bearings, also referred to as oilless bushings or sliding bearings, are designed to provide stable sliding performance without continuous external lubrication. They are widely used in applications where conventional grease or oil lubrication is impractical, unreliable, or prohibited by operating conditions.
How Self-Lubricating Bushings Work
Unlike rolling-element bearings, oilless bushings operate through sliding motion and provide lubrication from the bearing material itself. Common technical approaches include:
Embedded solid lubricants: Graphite, MoS₂, or PTFE is embedded in a metallic matrix, typically bronze. During operation, a small amount of solid lubricant transfers to the mating surface, forming a low-friction film.
Porous metal structures: Sintered bronze or iron bushings contain microscopic pores that are vacuum-impregnated with oil. Heat generated during operation causes the oil to expand and reach the bearing surface; when operation stops and cooling occurs, capillary action draws the oil back into the pores.
Layered composite structures: A strong backing, an intermediate sintered bronze layer, and a low-friction PTFE-based sliding layer are combined to achieve low friction and good wear resistance.
Oilless Bushings vs. Traditionally Lubricated Bearings
Feature
Self-Lubricating Bushings
Traditionally Lubricated Bearings
Lubrication
Internal / self-contained
Requires external grease or oil
Maintenance
Minimal scheduled maintenance
Regular re-lubrication required
Contamination risk
Low
Higher; grease can attract and hold contaminants
Operating temperature
Wider range, material-dependent
Often limited by lubricant properties
Cleanliness
No external leakage
Possible grease or oil leakage
Design complexity
Simpler; no lubrication access required
More complex; needs lubrication points
Initial cost
May be higher
May be lower
Total cost of ownership
Often lower through reduced maintenance and downtime
May be higher due to lubricant, labor, and downtime
Advantages of Self-Lubricating Bearings
Lower manufacturing costs: No oil supply systems, lubrication holes, or oil grooves are required, reducing machining and production expense.
Reduced operating and maintenance costs: Lubricant consumption is minimized, routine maintenance is reduced, and the risk of insufficient lubrication is lowered.
Simplified design and shorter development cycles: Oil-free operation allows more compact mechanical structures and can shorten design time.
Improved equipment performance and durability: Consistent friction behavior and longer service life support reliable operation.
Environmental and sustainability benefits: No waste oil collection or disposal is required, supporting cleaner industrial operations.
Typical Applications
Self-lubricating bearings are suitable for:
Harsh and maintenance-constrained environments
Applications requiring long service intervals with built-in lubrication
High-load, low-speed rotational, oscillating, and linear reciprocating motion
Applications where traditional lubricants are restricted or cannot be used for technical, safety, or regulatory reasons
Extreme conditions including dust, impact loads, or radiation exposure
Steel, metallurgy and process industries: steel mill equipment, continuous casting, rolling mills, furnace and high-temperature systems

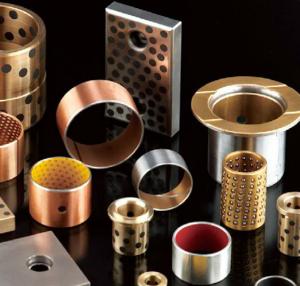

Product Range

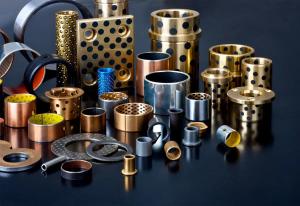

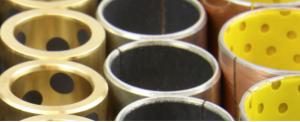

The self-lubricating bearing portfolio includes:

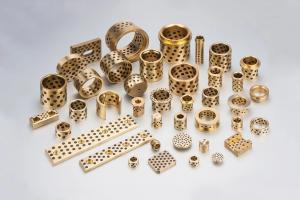

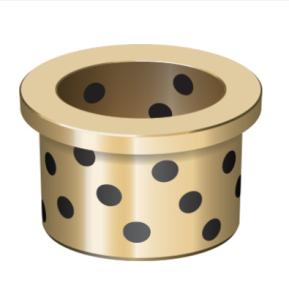

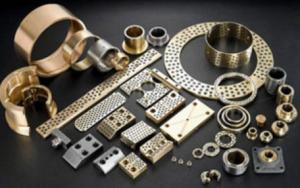

Graphite Plugged Bronze Bearings (JDB Series): Suitable for high-load, low-speed, intermittent motion, and high-temperature applications. Graphite plugs provide continuous solid lubrication. Common in heavy machinery, molds, and hydraulic components.

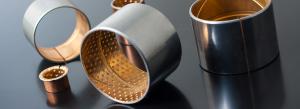

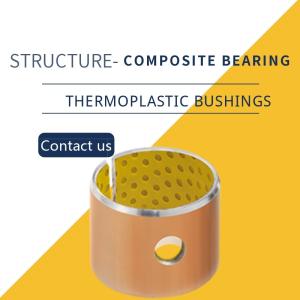

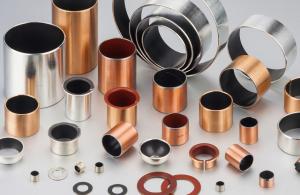

PTFE-Based Composite Bushings (SF Series): Metal-backed bushings with a PTFE-based lining. Low friction, good wear resistance, suitable for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

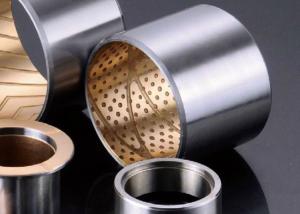

Bimetal Bushings (JF Series): Steel backing combined with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength; often used with grease or oil but can operate under marginal lubrication. Found in engines, chassis parts, and agricultural machinery.

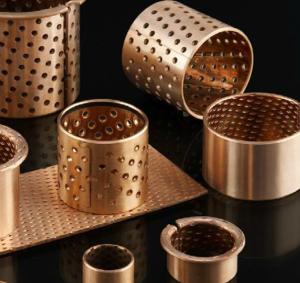

Wrapped Bronze Bearings (FB Series): Bronze strip with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, usually with initial greasing and extended relubrication intervals.
These products can be engineered for high loads, oscillating motion, intermittent operation, limited maintenance access, contamination, elevated temperatures, or restricted lubrication conditions.
Application-Oriented Bearing Selection
Bearing selection is based on the application rather than dimensions alone. Relevant factors include material selection, load, speed, PV value, temperature, shaft condition, lubrication conditions, environment, and expected service life.
Compared with conventional lubricated bearing arrangements, self-lubricating bearing solutions can help address:
Reduced lubrication requirements
Lower routine maintenance demand
Long-term sliding performance
Oscillating and intermittent motion
Difficult-to-access bearing locations
High-load applications
Corrosive or contaminated environments
Elevated-temperature applications
Compact mechanical designs
Reduced risk associated with inadequate lubrication
Global Markets and Customer Segments
Self-lubricating bearings are supplied to OEMs, distributors, engineering companies, maintenance organizations, and industrial equipment manufacturers worldwide.
Key markets include:
Europe: Germany, Italy, Spain, France, United Kingdom, Netherlands, Poland, Portugal, Sweden, Czech Republic
North America: United States, Canada, Mexico
South America: Brazil, Chile, Peru, Argentina, Colombia
Asia-Pacific: Japan, South Korea, Australia, New Zealand, India, Southeast Asia
Middle East & Africa: Saudi Arabia, United Arab Emirates, Qatar, South Africa, Egypt, other industrial and infrastructure markets
Typical customer segments:
OEM manufacturers, engineering companies, industrial distributors, machinery manufacturers, maintenance and MRO companies, system integrators, and project contractors.
Products can be supplied as standard bearings, replacement components, or customized self-lubricating bearing solutions based on application requirements, drawings, dimensions, materials, tolerances, and operating conditions.
Disclaimer
This document is provided for general information only and does not constitute a performance guarantee. Bearing selection must be verified against actual operating conditions, including load, speed, PV value, temperature, shaft condition, lubrication conditions, and expected service life.
Tailored Solutions for Your Exact Needs
• Bespoke bronze bushings designed to your specifications
• Custom materials, dimensions, and lubrication requirements
• Rapid prototyping and production turnaround
OEM Partnership Advantages
✓ Metric & imperial standard compliance
✓ Complete design-to-delivery service
✓ High-volume production capacity
Comprehensive Bushing Portfolio
We manufacture the full spectrum of high-performance bearings:
• Self-lubricating Bronze Bushings
• Graphite-Embedded Bearings
• High-Load Capacity Bushings
• Corrosion-Resistant Bronze Alloys
Why Partner With VIIPLUS?
• In-House Production – Full control over quality and lead times
• Technical Expertise – Engineering support for optimal bearing performance
• Global Standards – Consistent quality for international applications
Get Your Custom Solution Today
[Request a Quote] | [Contact Our Engineers]

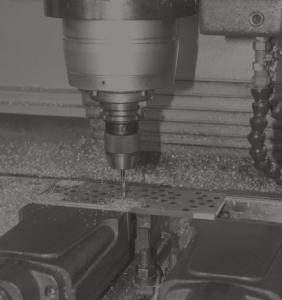

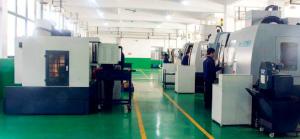

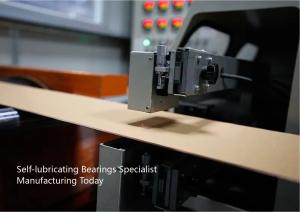

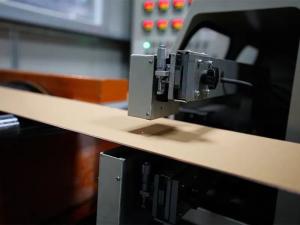

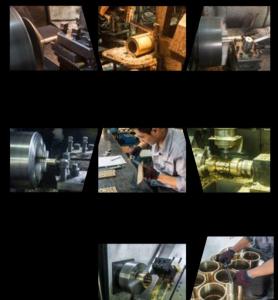

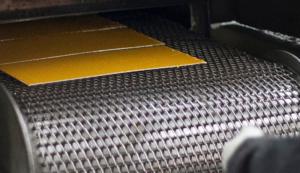

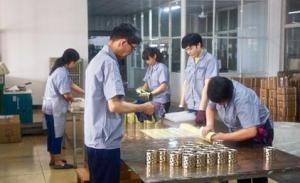

Production Line:
VIIPLUS – Your Trusted Partner for Premium Self-Lubricating Bushings
Why Choose VIIPLUS as Your Bushing Supplier?
✔ Integrated Manufacturing – In-house design & logistics teams ensure competitive pricing + fast delivery

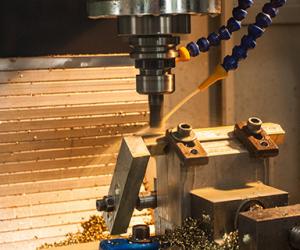

✔ Advanced Production – Equipped with CNC lathes, machining centers, and precision grinding systems
✔ Rigorous Quality Control – Meticulous inspection of both performance + aesthetics
✔ Custom Solutions – Specializing in OEM bearings to your exact specifications
Custom-Engineered Bronze Bushings for Optimal Performance
We specialize in developing precision self-lubricating bronze bushings tailored to your exact specifications. Our technical expertise delivers innovative solutions that enhance machinery efficiency and reliability.
• Custom Formulations – Alloy compositions optimized for your operating environment
• Performance Testing – Rigorous validation of load capacity and wear characteristics
• Technical Collaboration – Joint development with your engineering team
At VIIPLUS, we don't just manufacture precision bronze bearings – we build values:
Our Core Principles:
✓ Ethics & Integrity - The foundation of every decision
✓ Collaborative Teamwork - Stronger together
✓ Relentless Pursuit of Excellence - In every bearing we produce
Be part of a company that combines German engineering precision with global impact in sliding bearing technology.
Your expertise helps keep industries moving worldwide.
[Explore Career Opportunities]
Join a Team That Powers Industries Worldwide
At VIIPLUS, we combine innovation with execution in bearing technology:
Why Partner With Us?
✓ Comprehensive Bearing Solutions - Extensive range of plain & flanged bearings for every application

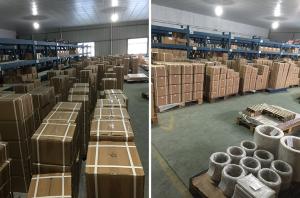

✓ China-Based Efficiency - Well-stocked warehouse ensures rapid delivery
✓ Optimized Supply Chain - Short lead times and reliable logistics
✓ Proven Excellence - Trusted by global clients for quality and value
Don't Just Take Our Word For It "VIIPLUS delivers both superior products and significant cost savings" - Satisfied Client
Viiplus specialize in high-precision mold/die components and advanced sliding bearings for end-user maintenance and industrial applications.
We consistently uphold a partnership philosophy centered on growing together with our customers and sharing the value of that growth.
We sincerely welcome clients from around the world to connect with us for business discussions and long-term cooperation.
Moving forward with determination and continuous improvement, we remain committed to delivering cost-effective, high-quality bearing solutions to global markets. Our mission is to enhance customer competitiveness, reduce lifecycle costs, and create measurable added value through reliable products and responsive service.
We are committed to developing long-term partnerships based on collaboration, resource sharing, and sustainable win-win success. By integrating advanced bearing technology with flexible manufacturing capabilities, we support global OEMs and industrial users with reliable, high-performance solutions.

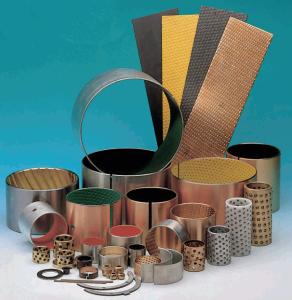

Core Exported Product Portfolio
Our primary exported product lines include:

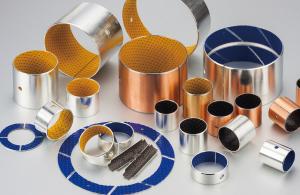

Metal-Polymer Composite Bearings
Steel-backed with PTFE or other low-friction layers for maintenance-free performance under high load and low speed conditions.
Cast Bronze Bearings
Engineered for heavy-duty applications requiring high compressive strength and excellent wear resistance.

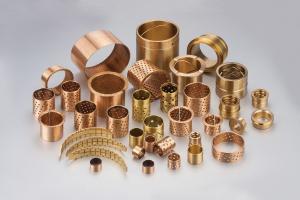

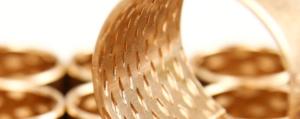

Wrapped Bronze Bearings (Rolled Bronze Bushings)
Manufactured from precision-formed bronze strip, optimized for oscillating and marginally lubricated environments.
Bimetal Bearings
Steel-backed bronze alloy bearings designed for shock loads and high load-carrying capacity.
All products are manufactured in strict compliance with international standards. In addition to standardized production, we offer custom manufacturing based on customer drawings, specifications, or application requirements, ensuring dimensional accuracy and performance reliability.
Wide Industrial Applications
Our self-lubricating and sliding bearing solutions are widely used across diverse industrial sectors, including:
Transportation & Vehicles
Automotive systems, commercial vehicles, and specialty transport equipment.
Machine Tools & Tooling
CNC equipment, molds, and precision forming systems requiring stable friction control.
Metallurgical & Steel Processing Equipment
Rolling mills, forging equipment, and high-temperature material handling systems.
Mining & Quarry Machinery
Heavy-load pivot points and impact-resistant structural joints.
Textile Machinery
High-speed oscillating mechanisms and continuous-duty components.
Lifting & Hoisting Equipment
Cranes, structural joints, and articulated load-bearing assemblies.
Construction & Engineering Machinery
Excavators, drilling rigs, concrete equipment, and earthmoving machinery.
Plastic Injection & Rubber Machinery
Toggle systems, clamping units, and sliding guide mechanisms.
Chemical & Food Processing Equipment
Corrosion-resistant and maintenance-free bearing solutions.
Automation & Industrial Robotics
Precision motion systems requiring long service life and minimal downtime.
Forging & Rolling Equipment
High-load, high-impact applications under thermal stress.
Fitness Equipment
Low-noise, wear-resistant bushings for smooth motion systems.
Port & Marine Machinery
Corrosion-resistant bearings for offshore and heavy marine environments.
Strict quality control aligned with international industrial standards
OEM and ODM manufacturing support
Custom material selection based on load, speed, PV value, and environmental conditions
Flexible batch production for global export markets
Through advanced materials engineering and precision processing, our bearing solutions deliver:
High load capacity
Superior wear resistance
Extended service life
Reduced maintenance costs
Improved operational reliability
We welcome global partners to collaborate in expanding new markets and creating sustainable industrial value together.
Renowned for exceptional service and customer-centric adaptability, we deliver reliable solutions for your most demanding technical requirements.
Master Self-Lubricating Bronze Bearing Technology
As a leading OEM Bushing Bearings Manufacturer, we’ll help you:
• Become your company’s bearing authority
• Understand core operational mechanics
• Implement best practices for maximum bearing lifespan
Discover Our Premium Bronze Bearing Solutions
Why Choose Our Bronze Components?
✓ Self-lubricating technology for maintenance-free operation
✓ Precision-engineered for superior wear resistance
✓ Global reliability – trusted by industries worldwide
✓ Expanding product line to meet your specific application needs
[Browse Plain Bearings Products Now]
Service:
Superior Quality Self-Lubricating Bearings
Self-Lubricating Bearings in Construction & Heavy Equipment Engineering
Self-lubricating bearings are critical components in modern construction machinery, where high loads, abrasive dust, shock impact, and limited maintenance access define daily operation. In these environments, traditional grease lubrication often fails due to contamination, washout, or insufficient servicing intervals.
Engineered composite bushings, solid bronze bearings, and PTFE-lined sliding bearings provide maintenance-free performance, high load capacity, and long service life in demanding field conditions.
Major Construction Machinery Applications
1. Excavator
Typical installation points:

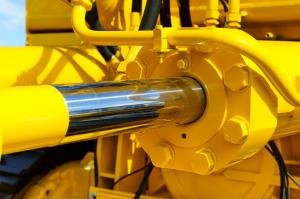

Hydraulic cylinder buffer bushings
Boom and arm pivot bushings
Body articulation bushings
Undercarriage (track system) bushings
Engineering value:
Excavators operate under oscillating loads and frequent reversing motion. Self-lubricating bearings reduce stick-slip, handle high edge loading, and maintain performance in muddy or dusty environments.
2. Bulldozer
Typical installation points:
Track system bushings (undercarriage components)
Blade linkage bushings
Frame joint bushings
Engineering value:
High-impact loads and continuous abrasive contact demand bushings with superior wear resistance and compressive strength.
3. Rotary Drilling Rig
Typical installation points:
Mast articulation joints
Hydraulic cylinder connections
Structural pivot bushings
Engineering value:
Drilling rigs operate under heavy static loads and vibration. Solid bronze or composite self-lubricating bushings prevent seizure during long-duration, low-speed rotation.
4. Concrete Pump Truck
Typical installation points:
Boom arm joints
Triangular support bracket bushings
Hinge articulation bushings
Engineering value:
Continuous oscillation and high-altitude operation require stable friction performance without lubrication leakage risk.
5. Shield Tunnel Boring Machine
Typical installation points:
Structural joint bushings
Support system sliding bearings
Rear pulley bushings
Engineering value:
Underground environments introduce high humidity, slurry contamination, and difficult maintenance access. Self-lubricating bearings ensure operational reliability without frequent service shutdowns.
Additional Equipment Coverage
Self-lubricating bushings are also widely used in:
Road Construction Machinery – roller pivots, linkage systems
Rock Grabber – hinge bushings and support joints
Reclaimer Conveyor – articulation bushings and sliding supports
Key Installation Positions in Heavy Machinery
Across equipment categories, common mounting locations include:
Hydraulic cylinder buffer bronze bushings
Structural joint bushings
Undercarriage “four wheels and one track” bushings
Boom arm bronze bushings
Triangular bracket joint bushings
Rear pulley bronze bushings
Lifting lug (ear plate) bushings
Performance Characteristics in Engineering Applications
Self-lubricating bearings used in heavy machinery are selected based on:
High load capacity (static and dynamic)
Exceptional wear resistance
Dimensional stability under shock loads
Dust and debris resistance
Extended maintenance intervals or fully maintenance-free operation
Reduced downtime in remote or high-altitude sites
Why Self-Lubricating Bearings Improve Total Equipment Value
From a lifecycle cost perspective, eliminating centralized lubrication systems reduces:
Design complexity
Lubrication system weight
Grease consumption
Field maintenance labor
Environmental contamination risks
In construction and mining machinery, uptime equals profitability. Self-lubricating sliding bearings deliver predictable friction behavior, longer replacement intervals, and enhanced reliability under extreme duty cycles.
VIIPLUS.com provides innovative self-lubricating bearings and bushings – engineered to enhance performance and reduce downtime across industries.
Maximize performance with VIIPLUS’s high-quality self-lubricating bearings. Backed by decades of expertise, we ensure enhanced durability and efficiency—supported by online assistance to keep your operations running smoothly.
Fast, Secure, and Reliable Delivery
Count on VIIPLUS for safe and timely shipments. Our strong logistics network guarantees that your orders arrive on schedule, so you can focus on what matters most—your business.
Your Trusted Partner in Industrial Bearing Solutions
End-to-End Manufacturing Excellence
VIIPLUS – Your Trusted Bearing Solutions Partner
Reliable Global Delivery
Entrust VIIPLUS with your logistics—we ensure safe and on-time delivery every time.
Precision Engineering for Industrial Excellence
End-to-End Manufacturing
Because when your business succeeds, we succeed.
"Our commitment to ethical practices aligns with our customers' values. This integrity is reflected in the excellence of our sliding bearings and the quality of our bronze products.” – A Viiplus Commitment
Ready to Enhance Your Machinery's Reliability and Efficiency?
Stop letting traditional lubrication methods dictate your maintenance schedules and limit your design possibilities. Explore the robust, reliable, and often more cost-effective world of oilless bushings.
Discover Our Full Range:Browse Self-Lubricating Bearings on Viiplus.com
Need Specific Parts?Get a Free Quote for Oilless Bushing Parts Now!
Take Advantage of Savings: Check out our online Bushing Sale
Your project deserves the best. Partner with Viiplus, your expert in sliding bearing technology, and experience the difference that high-quality, self-lubricating solutions can make.
Contact Supplier
Submit Requirement
Submitted successfully!
Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible.
