Anti-wear 10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet Bronze
Anti-wear 10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet Bronze
Anti-wear 10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet Bronze
Anti-wear 10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet Bronze
Anti-wear 10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet Bronze
Anti-wear 10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet Bronze
Specifications
Brand Name :
Joyreap
Certification :
ISO,IATF16949
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500,000PCS/Month
Delivery Time :
30 days
Packaging Details :
Cartons+Wooden Pallets
Description :
ZR-GP10 Bronze Filled PTFE Material
Precision :
CNC machined high precision
Feature :
Self lubircating, Anti-wear
Type :
Sleeve, Flange, Thrust Washers
Description

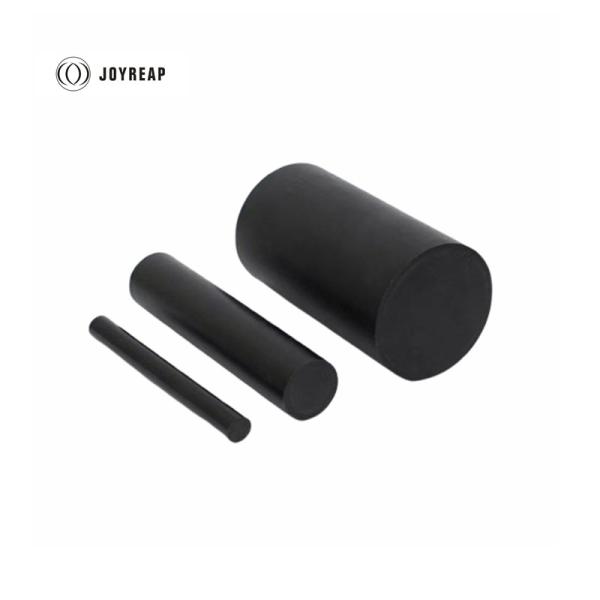

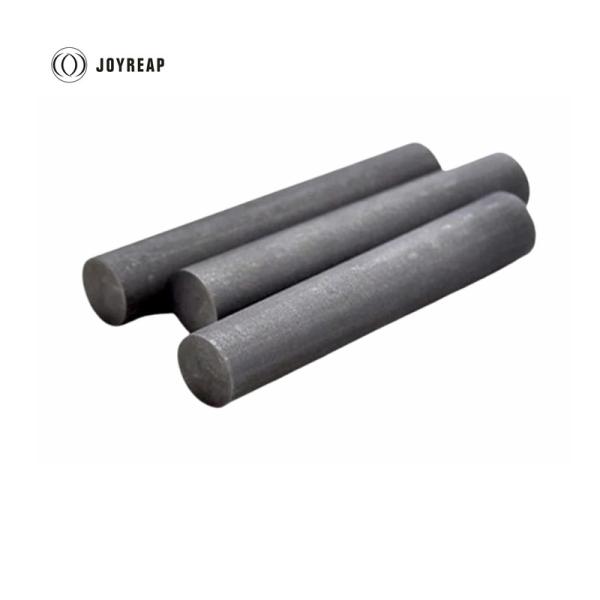

10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet

10% graphite filled PTFE tube is made of 10% graphite powder blended with 90% PTFE. Graphite has self-lubricating properties which reduce friction. It is generally used in combination with glass or carbon or both. It has good wear resistance due to its flaky form.


10% graphite filled PTFE tube combines the excellent chemical resistance, low coefficient of friction, and extreme temperature range of virgin PTFE with a graphite filler providing additional strength and stability. The filler produces a lower coefficient of friction making it a great wear choice for dynamic components.

Material:

10% Graphite+PTFE

Advantages:

  • Low coefficient of friction compared to other filled PTFE materials.
  • Higher flexural modulus and surface hardness than unmodified PTFE.

Application

Typically used in seal components for rotatory and reciprocating applications and can be used to seal against steel, stainless steel, chromium plating, bronze, bare or anodized aluminum and aluminum alloys, and ceramic coatings.

Technical Data

Property Test Method Units 10 Graphite 15 Graphite
Color - - Black Black
Specific Gravity ASTM D792 - 2.100 - 2.200 2.100 - 2.200
Hardness Shore D ASTM D2240 - 61 - 71 59 - 69
Tensile Strength, min. ASTM D4745 PSI [MPa] 2,600 [17.9] 2,000 [13.8]
Elongation at Break, min. ASTM D4745 % 120 100
Second Melt Peak Temp. ASTM D3418 °F [°C] 621 [327] 621 [327]
Glass Transition Temp. ASTM D3418 °F [°C] -143 [-97]; 246 [119] -143 [-97]; 246 [119]
