SUP Series 3000W Versatile Laser Welding Head suitable for welding stainless steel aluminum copper and other metals with high precision

Specifications

Description

Product Overview:

SUP series handheld laser welding heads are professional 4-in-1 laser processing gun solutions, compatible with mainstream 3000W fiber laser generators (Raycus, Maxphotonics, IPG etc.). The lineup includes SUP21T, SUP23T, SUP31F, SUP33T, SUP36T to cover water-cooled & air-cooled usage scenarios for metal welding, cleaning, seam polishing and cutting work.

Technical Parameters:

Model	SUP21T	SUP23T	SUP31F	SUP33T	SUP36T
SUP Handheld Laser Welding Heads
Power	3000W	3000W	3000W	3000W	3000W
Application Scope	≤3000W	≤3000W	≤3000W	≤3000W	≤3000W
Cooling Method	Water‑cooled	Water‑cooled	Air‑cooled	Water‑cooled	Water‑cooled
Collimating FL	D16*-F60	D16*-F60	D16*-F60	D16*-F60	D16*-F60
Focusing FL	D20F150	D20F150	D20F150	D20F150	D20F150
Max Air Pressure	15Bar	15Bar	15Bar	15Bar	15Bar
Vertical Focus Adjustment Range	±10mm	±10mm	±10mm	±10mm	±10mm
Spot Size Adjustment Range	Line0-8mm	Line0-8mm	Line0-8mm	Line0-8mm	Line0-8mm
Applicable Wavelength	1080nm(±10nm)	1080nm(±10nm)	1080nm(±10nm)	1080nm(±10nm)	1080nm(±10nm)
Weight	0.6Kg	0.7Kg	0.58Kg	0.68Kg	0.59Kg

Model Selection Guide

SUP31F (Air-cooled) No water chiller required, lightweight portable design, ideal for mobile on-site construction, small workshop flexible processing, no complex water circuit maintenance.
SUP21T / SUP23T (Classic Water-cooled) Stable long-hour continuous working performance; SUP23T adopts drawer-type lens cartridge for fast lens replacement, the most popular stock model for bulk industrial production.
SUP33T / SUP36T (New Digital Water-cooled) Optimized internal drive structure, lighter weight than traditional water-cooled models, lower hand fatigue during all-day operation, premium choice for high-frequency daily use.

Core Advantages of SUP Series:

Universal Optical Configuration: Unified D16-F60 collimating lens & D20-F150 focusing lens, spare parts interchangeable across all models, easy after-sales stocking.
4-in-1 Multi-function: Support metal welding, rust removal cleaning, weld seam cleaning & thin sheet cutting with matched nozzles.
Wide Focus & Spot Tuning: ±10mm vertical focus adjustment + 0–8mm wobble line spot, adapt to different metal thickness and welding craft needs.
Ergonomic Lightweight Body: All models under 0.7Kg, greatly reduce wrist strain for long time handheld operation.
High Compatibility: Standard QBH interface, perfectly match most mainstream 3kW fiber laser power sources on the market.

Product Photos

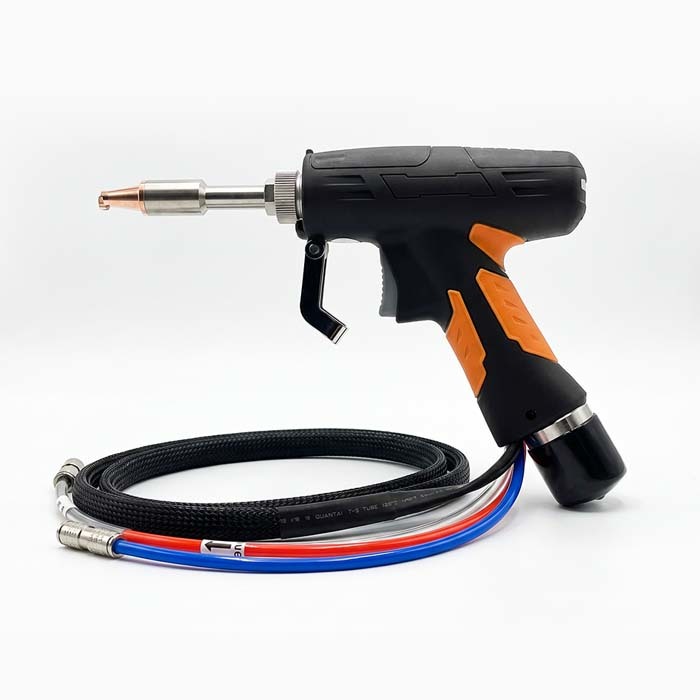

21T
