Specifications
Description
Description

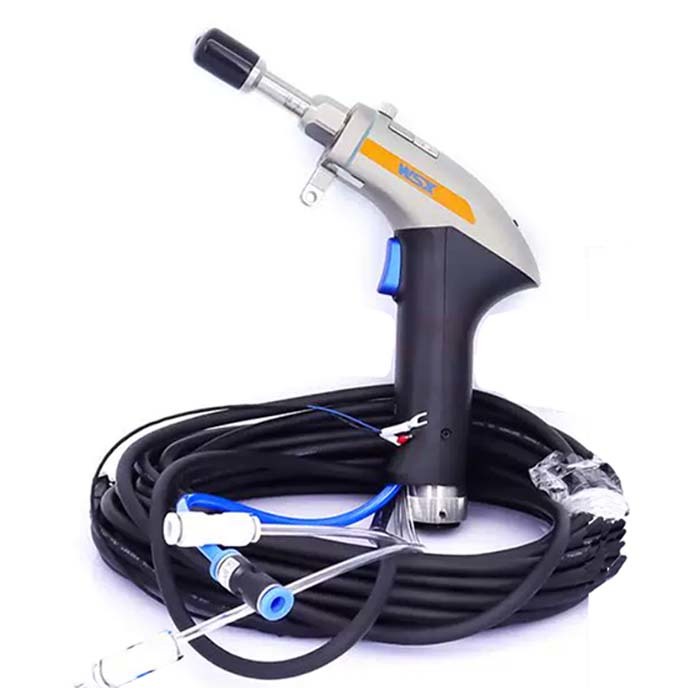

WSX brand handheld laser heads including air-cooled and water-cooled two mainstream configurations, matched for fiber laser equipment with 1070±20nm wavelength. The two models share the same optical parameters and lightweight body design, only differing in cooling mode and applicable power range to fit different production scenarios.

Technical Parameters:
WSX Handheld Laser Head
Model HD31 HD21
Cooling Method Air‑cooled Water‑cooled
Power 3000W 1500W
Application Scope ≤3000W ≤1500W
Collimating FL D16-F60 D16-F60
Focusing FL D20-F150 D20-F150
Max Air Pressure 15Bar 15Bar
Vertical Focus Adjustment Range ±10mm ±10mm
Spot Size Adjustment Range 0-6mm 0-6mm
Applicable Wavelength 1070±20nm 1070±20nm
Weight 0.65KG 0.65KG
Model Selection Guide

HD31 (Air-cooled, 3000W)
No water chiller required, easy for mobile on-site construction, outdoor operation and small workshop use, supports up to 3000W high-power long-time work.

HD21 (Water-cooled, 1500W)
Stable water-cooled heat dissipation performance, ideal for fixed indoor workshop continuous processing within 1500W power demand.

Core Advantages
  1. Uniform D16-F60 collimating & D20-F150 focusing lens design, spare parts are easy to stock and replace.
  2. Lightweight 0.65KG body effectively reduces wrist fatigue during long handheld operation.
  3. ±10mm focus adjustment and 0–6mm spot range adapt to common metal welding demands.
  4. Two cooling options available to cover outdoor portable and indoor stationary working scenes
Application Industries

Suitable for stainless steel fabrication, hardware processing, automotive maintenance, advertising metalwork, pipeline installation and conventional metal welding & cleaning industries.

Package & Service

Each unit is delivered with complete standard accessories. Bulk order support is available for distributors and end users. We can provide matched accessory and consumable bundles upon request.
