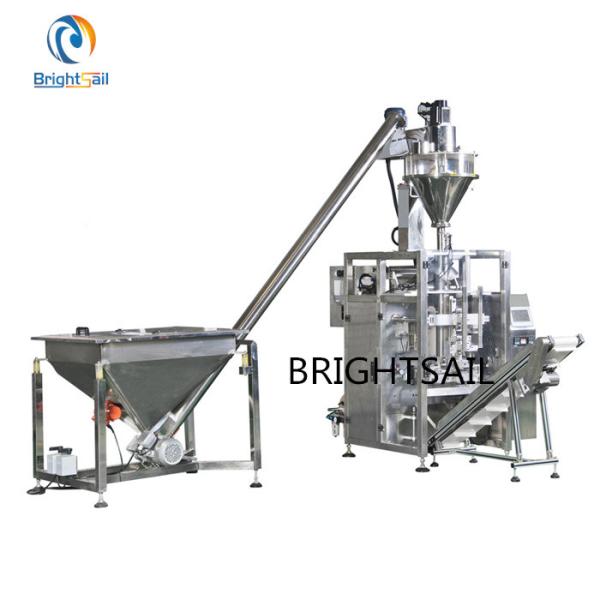

Packing Weight 10g 5kg chili powder packing machine
Packing Weight 10g 5kg chili powder packing machine
Packing Weight 10g 5kg chili powder packing machine
Packing Weight 10g 5kg chili powder packing machine
Packing Weight 10g 5kg chili powder packing machine
Packing Weight 10g 5kg chili powder packing machine
Specifications
Brand Name :
Brightsail
Model Number :
BSPM
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30-35 days
Packaging Details :
Wooden case or container
Packaging Type :
Back side seal
Bag type :
Back side seal bag
Application :
Food, Commodity, Medical, Chemical..etc
Warranty :
one year
Voltage :
customized
Package :
wooden case or container
Coding :
yes
Packing weight :
10-5000g
Description

Packing Weight 10g 5kg chili powder packing machine

BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.turmeric powder packing machinechili powder packing machine

Main features:

1:New design with perfect fashion, more reasonable structure, more advanced technology.
2.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
3.Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
4. with auto warning protection function to minimize loss

turmeric powder packing machinechili powder packing machine

Technical data:

Measure method Auger dosing Wrighing feedback tracking
Bag-making size

(W)80-200 mm

(L)100-300 mm

(W)100-250 mm

(L) 100-350 mm
Filling weight 10-5000 g(by changing mould)
Packaging precision ≤1%
Packaging speed 25-60 bag/min
Power supply Three phase 380/220 V 50-60HZ
Power 6 kw
Pressure 6-8 kg/cm2
Use tolerance 0.2 m3/min
Weight 700 kg 950 kg
Dimension 1300*1500*2600

turmeric powder packing machinechili powder packing machine

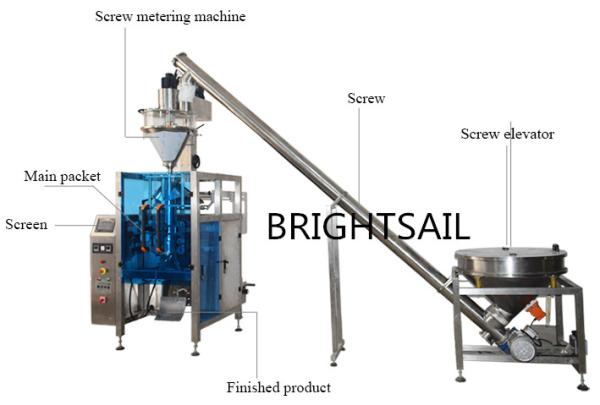

Process flow diagram:

Packing Weight 10g 5kg chili powder packing machine

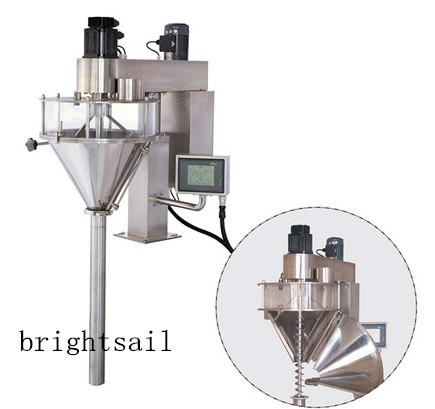

Screw dosing equipment:

1. Material contact parts are all 304 materials
2. The spiral mold can be replaced to measure different weight specifications
Main control system:
1. One key adjustment of package weight on the touch screen
2. The bag making length is adjusted at any time on the touch screen
3. The display will show the packaging speed and the number of bags .
Auxiliary control:
1. Independent horizontal and vertical seal temperature control, convenient for adjustment
2. Set the start, stop and emergency stop switches for easy operation.
Cursor detection:
Detect the color code of roll film and control the bag length.
Ribbon printer:
1. Number of printing lines: 1-3 lines
2. Number of columns to be printed: up to 14 characters in a row
3. Particle size: 2 * 4mm
4. Preheating time: 5-10 minutes

turmeric powder packing machinechili powder packing machine

Other types of machines:

please click the picture ,you can know more about the other types of machines.

Packing Weight 10g 5kg chili powder packing machine Packing Weight 10g 5kg chili powder packing machine

turmeric powder packing machinechili powder packing machine

Please contact us if you have any interest in our products:
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782turmeric powder packing machinechili powder packing machine
