Specifications
Brand Name :
Brightsail
Model Number :
BSPM
Certification :
CE ISO
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
30 sets per month
Delivery Time :
30-35 days
Packaging Details :
Wooden case or container
Packaging Type :
Back side seal
Bag type :
Back side seal bag
Application :
Food, Commodity, Medical, Chemical..etc
Warranty :
one year
Voltage :
customized
Package :
wooden case or container
Coding :
yes
Packing weight :
10-5000g
Description

Packing Weight 10g 5kg Spice Powder Packaging Machine

BSPM powder filling machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.

spice powder packaging machinespice powder packaging machinespice powder packaging machine
Main features:
1:New design with perfect fashion, more reasonable structure, more advanced technology.
2.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
3.Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
4. with auto warning protection function to minimize loss
spice powder packaging machinespice powder packaging machinespice powder packaging machine
Technical data:

Measure method Auger dosing Wrighing feedback tracking
Bag-making size

(W)80-200 mm

(L)100-300 mm

(W)100-250 mm

(L) 100-350 mm
Filling weight 10-5000 g(by changing mould)
Packaging precision ≤1%
Packaging speed 25-60 bag/min
Power supply Three phase 380/220 V 50-60HZ
Power 6 kw
Pressure 6-8 kg/cm2
Use tolerance 0.2 m3/min
Weight 700 kg 950 kg
Dimension 1300*1500*2600

spice powder packaging machinespice powder packaging machinespice powder packaging machine
Process flow diagram:

Packing Weight 10g 5kg Spice Powder Packaging Machine 8kg/cm2

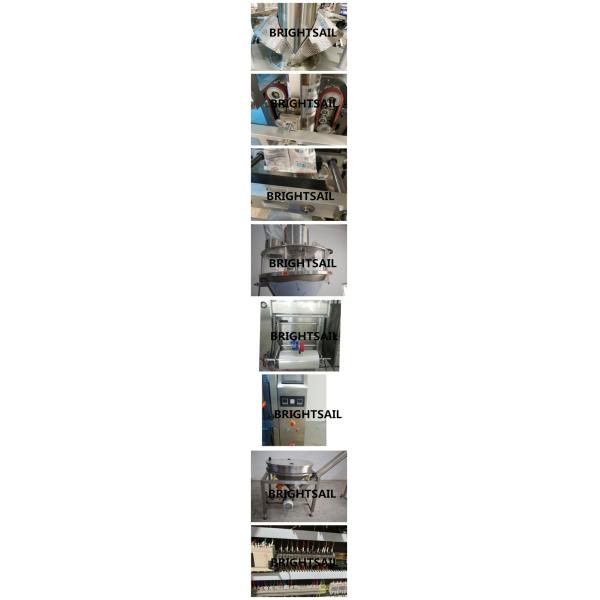

Bag former
Folding the film through the metal panels on both sides to form a bag shape.








Vertical sealing mechanism
Independent PTD control,vertical seal os suitable for multi-style bag types.packing molding is more stable ensuring sealing.








Horizontal sealing mechanism
Sealing the front and rear ends of the packaged products,can matching the gusset device.








Screw matering part
Accurate positioning,speed setting,stable performance packaging molding is more stable.







Servo film transport system
The serw motor is used to pull the film to make the film.







Electric box
Stainless steel machine,plc computer control system ,running more stable,can adjust any parameters without stopping.







Screw conveyor
Safe and reliable ,small size,light weight,high efficieny,low energy consumption and low noise.







Electronic control component
The internal structure of the chassis is arraganyed in order, and each has a coded make for future maintenance operations.

spice powder packaging machinespice powder packaging machinespice powder packaging machine
Other types of machines:
please click the picture ,you can know more about the other types of machines.
Packing Weight 10g 5kg Spice Powder Packaging Machine 8kg/cm2 Packing Weight 10g 5kg Spice Powder Packaging Machine 8kg/cm2
spice powder packaging machinespice powder packaging machinespice powder packaging machine
Please contact us if you have any interest in our products:
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
spice powder packaging machinespice powder packaging machinespice powder packaging machine
