Features& Applications

• • High-speed AD acquisition at 1000 times/sec with peak hold capability.

  • Strong anti-interference, effectively overcomes interference from on-site intercom calibration and servo systems up to 10KW.

  • Rich output interfaces: RS232 and RS485 supporting Modbus RTU protocol (customizable).

  • Analog output options: ±10V, ±5V, 4–20mA, 0–24mA.

  • IO relay outputs with multiple logic modes (customizable).

  • Allows modification of range, decimal point, and division value without affecting calibration.

  • Suitable for medium to high‑speed force measurement applications, such as automatic servo presses and automatic grinding machines.

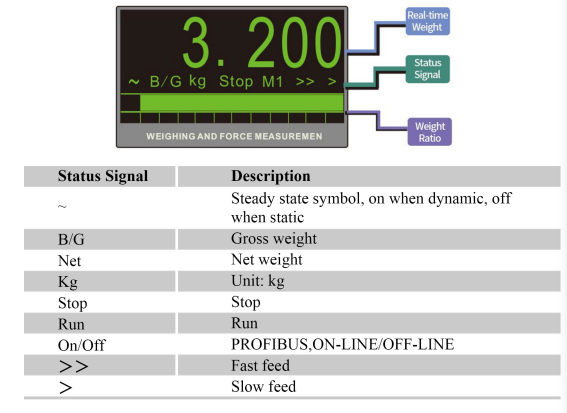

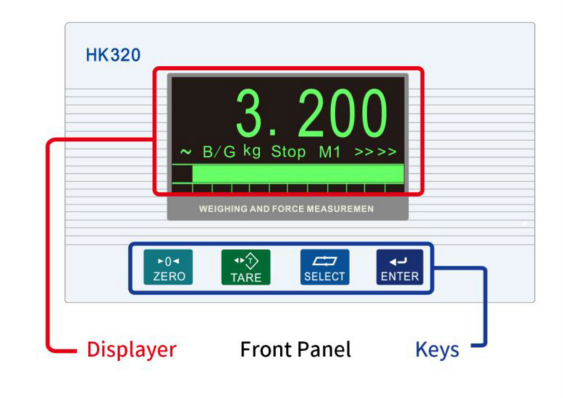

Sereen & Keyboard

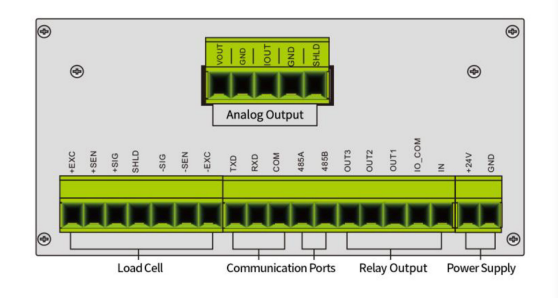

Wiring Code

Information

Interface

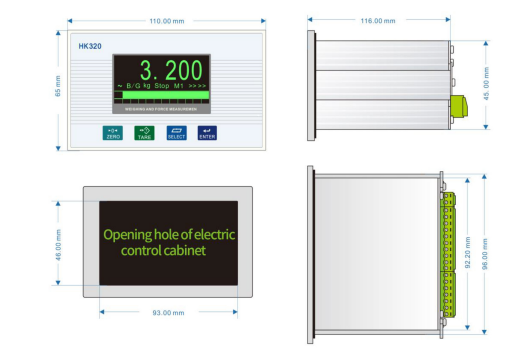

Dimensions (mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
