Features& Applications

• • Panel-mounted design.

  • High-speed AD acquisition at 200 times/sec with strong anti-interference, overcoming interference from on-site intercom calibration and servo systems up to 10KW.

  • Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol (output protocol customizable).

  • IO relay outputs with various logic modes, supporting customized functions.

  • Optional analog outputs: 0–5V, 0–10V, ±5V, ±10V, 0–20mA, 4–20mA, and 0–24mA.

  • Ideal for force measurement applications.

  • Suitable for chemical industry, large tank weighing in mixing stations, reactor weighing/measurement, and relay-based material level control for PLC/DCS systems.

  • Used in printing and dyeing industries for centralized weighing control.

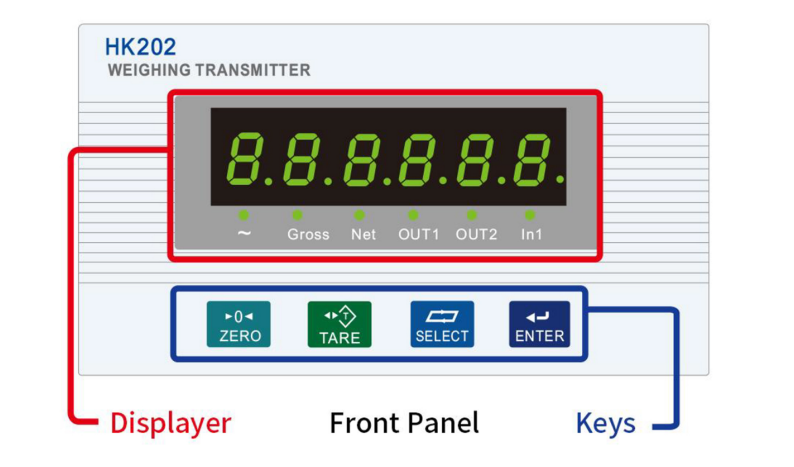

Sereen & Keyboard

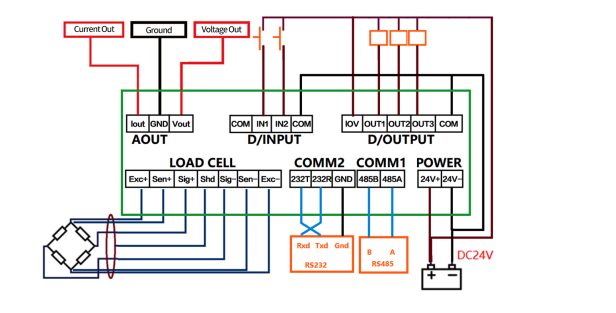

Wiring Code

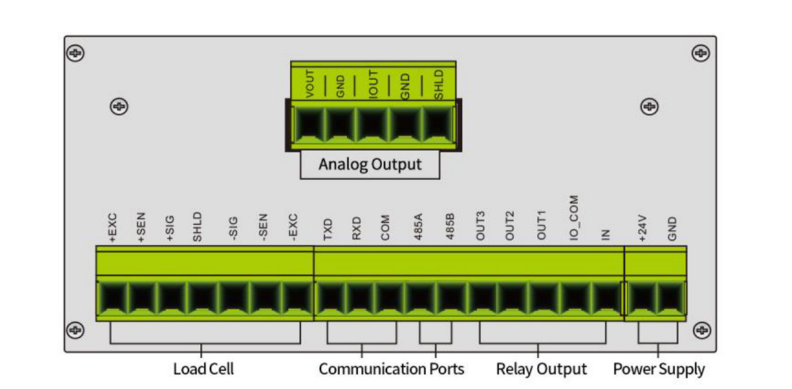

Interface

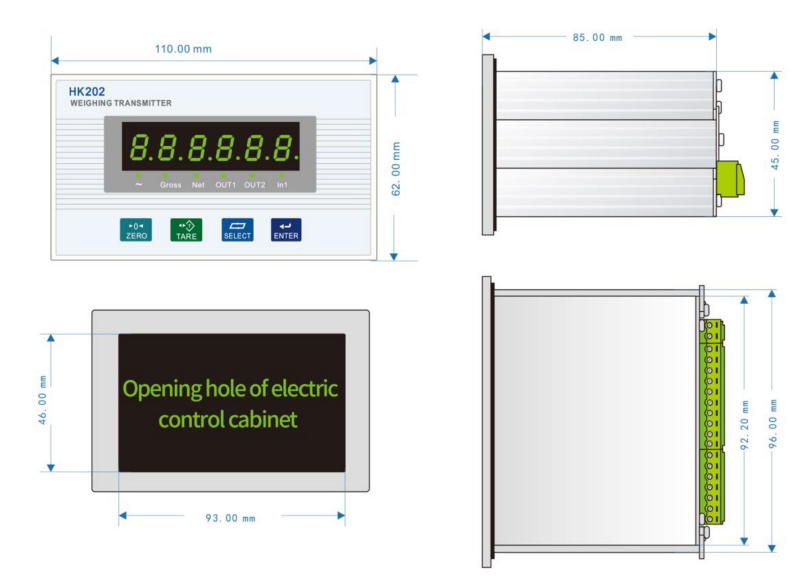

Dimensions (mm)

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
