Features

• 1. This reliable weighing indicator operates within a temperature range of 0°C to 40°C.

  2. The indicator can be safely stored in temperatures from -25°C to 55°C.

  3. Designed for robustness, this weighing indicator handles relative humidity up to 85% non-condensing.

  4. For portable operation, the indicator provides up to 30 hours of battery life on a full charge.

  5. The weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

  6. Flexible data handling is offered through manual and automatic accumulation on this indicator.

  7. Long-term accuracy is ensured by the programmable zero tracking feature of this weighing indicator.

  8. Signal clarity is enhanced by the programmable digital filter in this indicator.

  9. The weighing indicator supports selectable units (kg/lb or g/oz) for versatile applications.

  10. Standard connectivity includes an isolated RS-485 Modbus RTU interface on this indicator.

  11. Measurement precision can be increased tenfold using this high-performance weighing indicator.

  12. Specialized applications like animal weighing are supported by this versatile indicator.

  13. A hold function allows for stable reading capture on the weighing indicator.

  14. Inventory management is simplified with the counting function of this indicator.

  15. Direct hardcopy output is facilitated by the integrated printer interface of the weighing indicator.

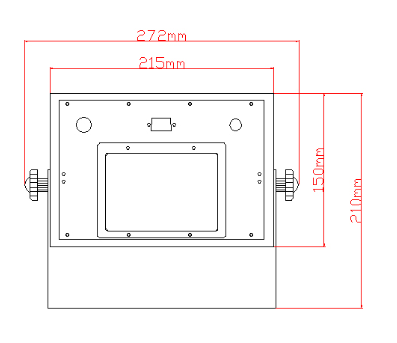

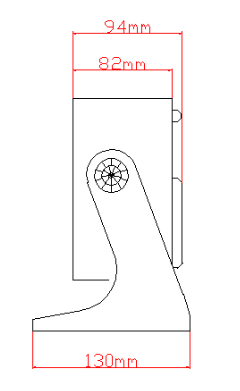

Dimensions(mm)
