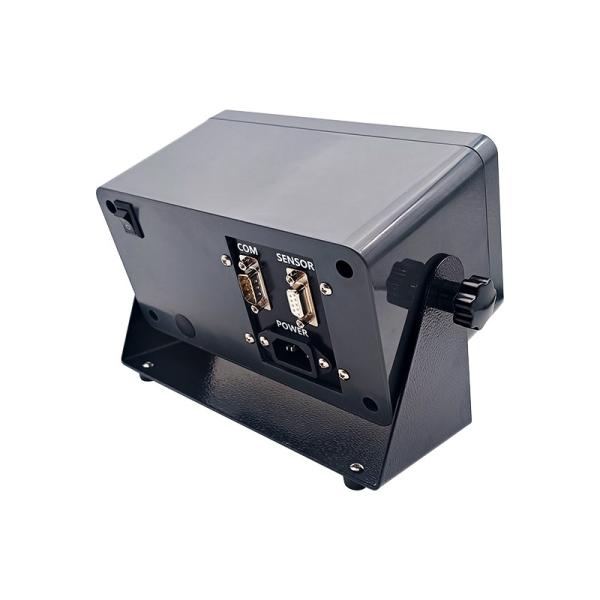

Weight Indicator Load Cell RS232 Digital Weighbridge Indicator
Weight Indicator Load Cell RS232 Digital Weighbridge Indicator
Weight Indicator Load Cell RS232 Digital Weighbridge Indicator
Weight Indicator Load Cell RS232 Digital Weighbridge Indicator
Specifications
Brand Name :
BRANZ
Model Number :
H5000
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
10000pcs
Delivery Time :
5~8days
Packaging Details :
Standard exporter carton packing including of instructions. Water Proof & Shock Resistance
Cutoff Frequency of Digital Filtering :
120,40,18,8,4,2,1,0.5,0.25Hz
Speed of Output :
400,200,120,50,25,12.5,7.5Hz
A/D Conversion Speed :
Highest 4800 (18bit)
Cable from Indicator to Load cells :
<=50m
Resistance of Load Bridge :
>100OHM
Communication Protocol :
Modbus
Accuracy :
1/100000
Using Temperature :
-20...+60℃
Stocking Temperature :
-20...+60℃
Highest Resolution :
24bit(50Hz)
Description

RS232 Weighing Indicator With Good Stability (H5000)

Operation panel:

Weight Indicator Load Cell RS232 Digital Weighbridge Indicator

Key Features:

High precison with good stability

High speed of sampling

Importing 24 bits modulus chips and special modular ground line seperated design to guarantee good stability.

Can be connected with 4 wires or 6 wires load cells with big measuring range

Unit selection as mV/V, kg,kN, Nm,t

Mainly used for high precision data acquisition and verification assessment

Datasheet:

MODEL UNIT SPECIFICATIONS
Accuracy
1/100000
Resistance of Load Bridge
OHM
>100
Sensitivity
Measuring Range
mV/V
mV/V
2.0
±5.0
Highest Resolution
Bits
24bit(50Hz)
A/D Conversion Speed
Samples/second
Highest 4800 (18bit)
Speed of Output
Hz
400,200,120,50,25,12.5,7.5
Cutoff Frequency of Digital
Filtering
Hz
120,40,18,8,4,2,1,0.5,0.25
Excitation Voltage of Load
Bridge
 v
±10
Cable from Indicator to
Load cells
m
<=50
Cable of communication
m
<=15
Linearity
%
±0.002
Temperature effect by 10 oC
ppm/10 ℃
10 ppm/10 oC
Communication port
Isolated RS232
Communication Protocol
Modbus
PC Software
V4.0
Digital Load Cells Measuring
Linear correction Points
10 setting points
Baud rate selection
9600 to 115200
Current consumption
mA
50
Operation Temperature
℃
-10...+40
Using Temperature
℃
-20...+60
Stocking Temperature
℃
-20...+60
Dimension (L*W*H)
mm
220×120×160

Control software:

Weight Indicator Load Cell RS232 Digital Weighbridge Indicator
