Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Portable Electric Roll Grooving Machine 1-6 Inch Pipe Groover Tool for Fire Protection HVAC Carbon Steel Pipe
Specifications
Pipe Wall Thickness :
2.75mm - 6.0mm (Schedule 10 - Schedule 40)
Brand Name :
SUNTECHMACH
Delivery Time :
7 working days for stock, 15-25 days for production orders
Drive System :
Electric Motor + Helical Gear Reducer
Gearbox Type :
Helical Gear, Oil-Bath Lubricated
Supply Ability :
500 Sets per Month
Spindle Speed :
55 RPM
Control Panel Protection :
IP54 Dust & Water Resistant
Roll Material :
GCr15 High-Carbon Chromium Bearing Steel (58-62 HRC)
Machine Dimensions :
780 x 480 x 620 mm
MOQ :
1 Set
Packaging Details :
Export-grade plywood case
Motor Power :
750W / 1 HP
Voltage Options :
220V/50Hz, 380V/60Hz, 110V/60Hz (Customizable)
Roll Life :
10,000+ grooves on Schedule 40 CS Pipe
Applicable Pipe Material :
Carbon Steel, Galvanized Steel, Stainless Steel (304/316)
Model Number :
CGP-6E
Certification :
CE, ISO 9001:2015
Grooving Capacity :
1 inch - 6 inch (DN25 - DN150)
Place of Origin :
Zhejiang, China
Machine Weight :
62 kg (Net) / 75 kg (Gross)
Payment Terms :
T/T,L/C
Description

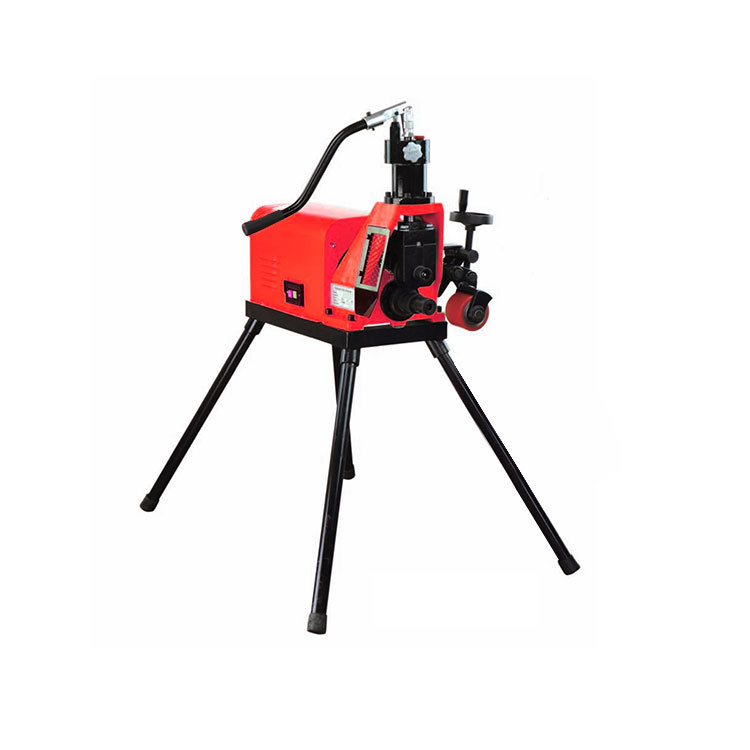

Portable Electric Roll Grooving Machine CGP-6E

1-6 Inch Electric Pipe Groover | CE & ISO 9001 Certified | For Fire Protection, HVAC & Plumbing Wholesale
⚡ Electric Drive
