CNC 75mm Automatic plastic pipe threading machine for PVC PP tube
CNC 75mm Automatic plastic pipe threading machine for PVC PP tube
Specifications
Brand Name :
SUNTECHMACH
Model Number :
STCC-75
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD9900.00
Payment Terms :
T/T
Supply Ability :
100 sets
Delivery Time :
15-30DAYS
Packaging Details :
Wood case
Diameter :
1-3inch
Material :
plastic pipe
Capacity :
75mm
Function :
Both outer threading and inner threading
For :
All plastic pipes threading
Warranty :
12 month
Description

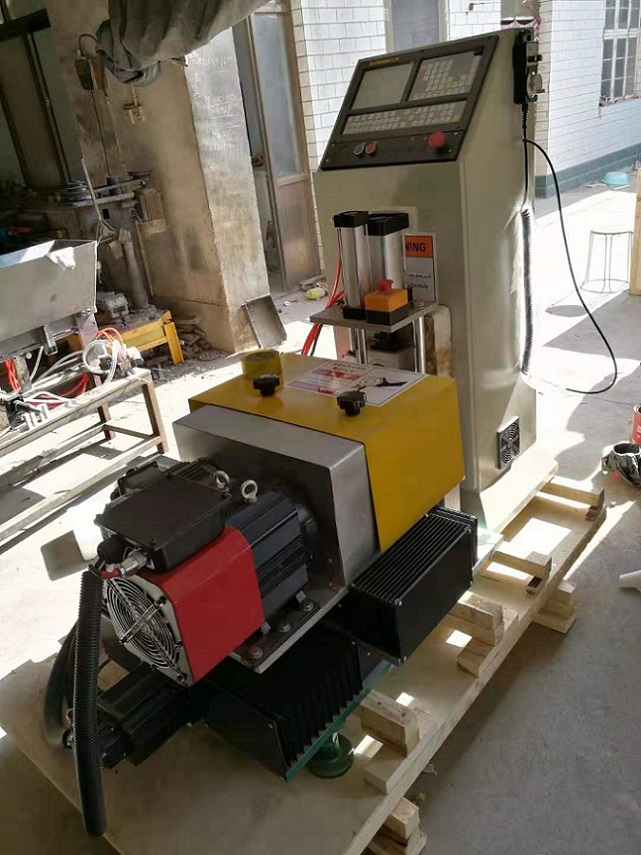

CNC plastic pipe threading automatic plastic tube threading machine

Plastic pipe threading machine Application

It is for making thread on plastic pipes such as PVC, PP, PE etc.

Plastic pipe threading machine Technical Data

CNC system configuration and quantity 2-axis CNC CNC system 1 set, 8.4 TFT, self-contained handwheel, pitch compensation, built-in PLC
Power and quantity of feed shaft XY feed axis, 2 axes in total; servo motor parameters: torque 7.7nm, power 2.0kw, speed 2000rpm
Control cabinet electrical selection The controller part is a domestic famous brand
Spindle motor power and quantity 3.0kw 1 spindle motor, 1 spindle reducer, 1 inverter, 1 encoder (spindle speed adjustable)
Tool spindle power, quantity and insulation level Tool shaft motor power1.5kw, national standard copper wire high speed motor, quantity1; insulation class B
Control panel position 1 CNC control panel and installed on the control cabinet or the machine
Control form NC, the tool spindle drives the forming tool to rotate and automatically process the thread and feed automatically; fast and efficient, the thread processing speed of each pipe is about 30-40s
Equipment material Carbon steel
Machinable tooth type 30 ° universal trapezoidal profile or 90 ° rectangular profile
Machinable pitch and number of tools Can process 4mm—12mmPitch, 2 tools for each pitch, 6 tools in total
Machinable range 75-205mm external and internal thread
degree of automation Semi-automatic: manual loading and unloading, the rest are processed automatically
Clamp The clamp can freely adjust the clamping diameter by manual; another two racks are included

Plastic pipe threading machine Selling feature

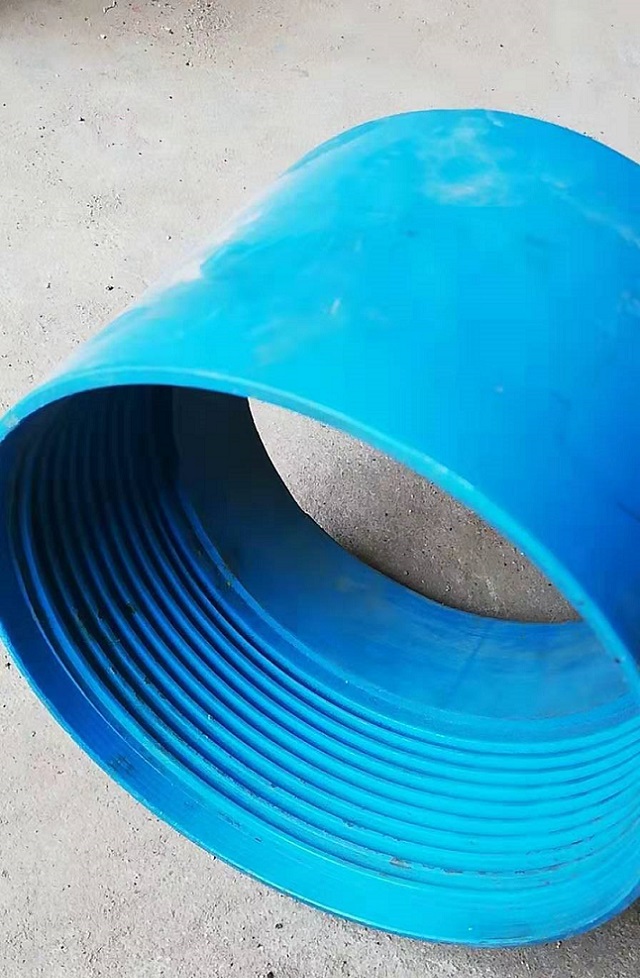

Pipe does not rotate, the threading head will rotates around the end of pipe to cut the thread.

Other size in option

The maximum diameter of machine can be customized according to client requirement..
