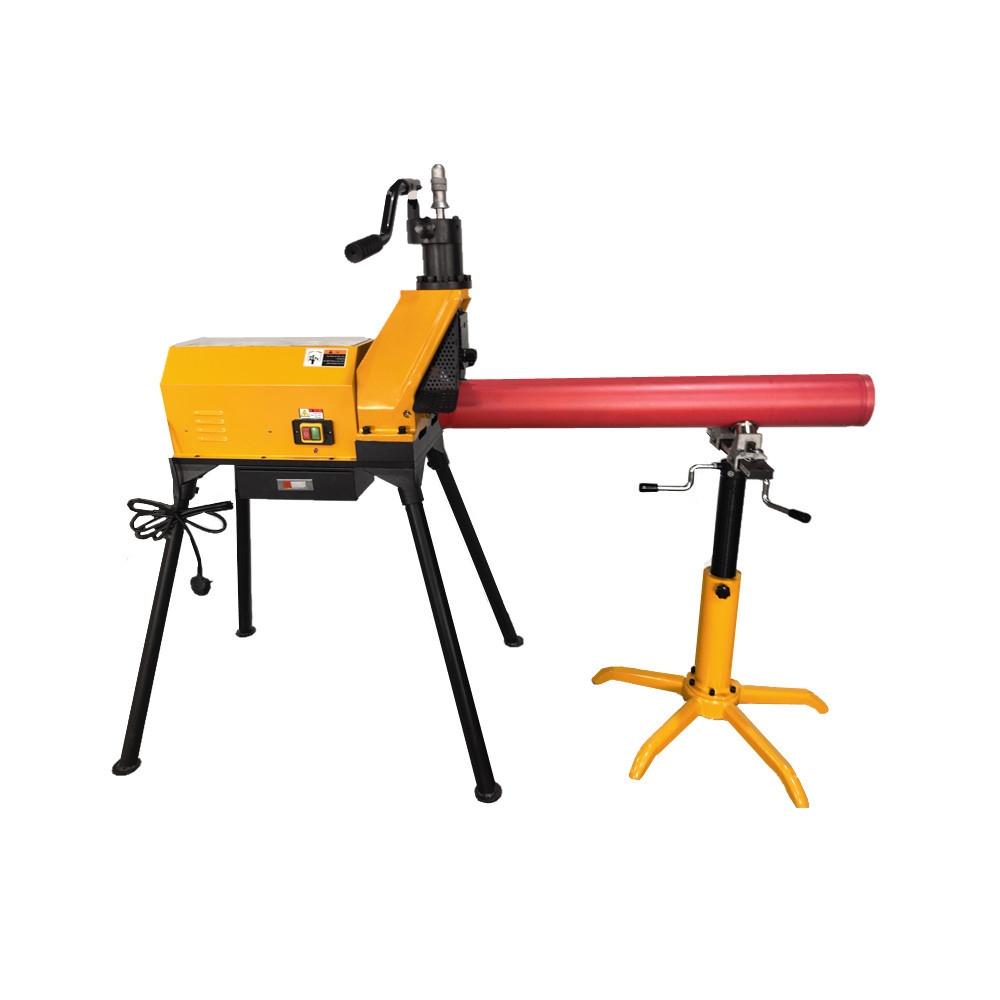

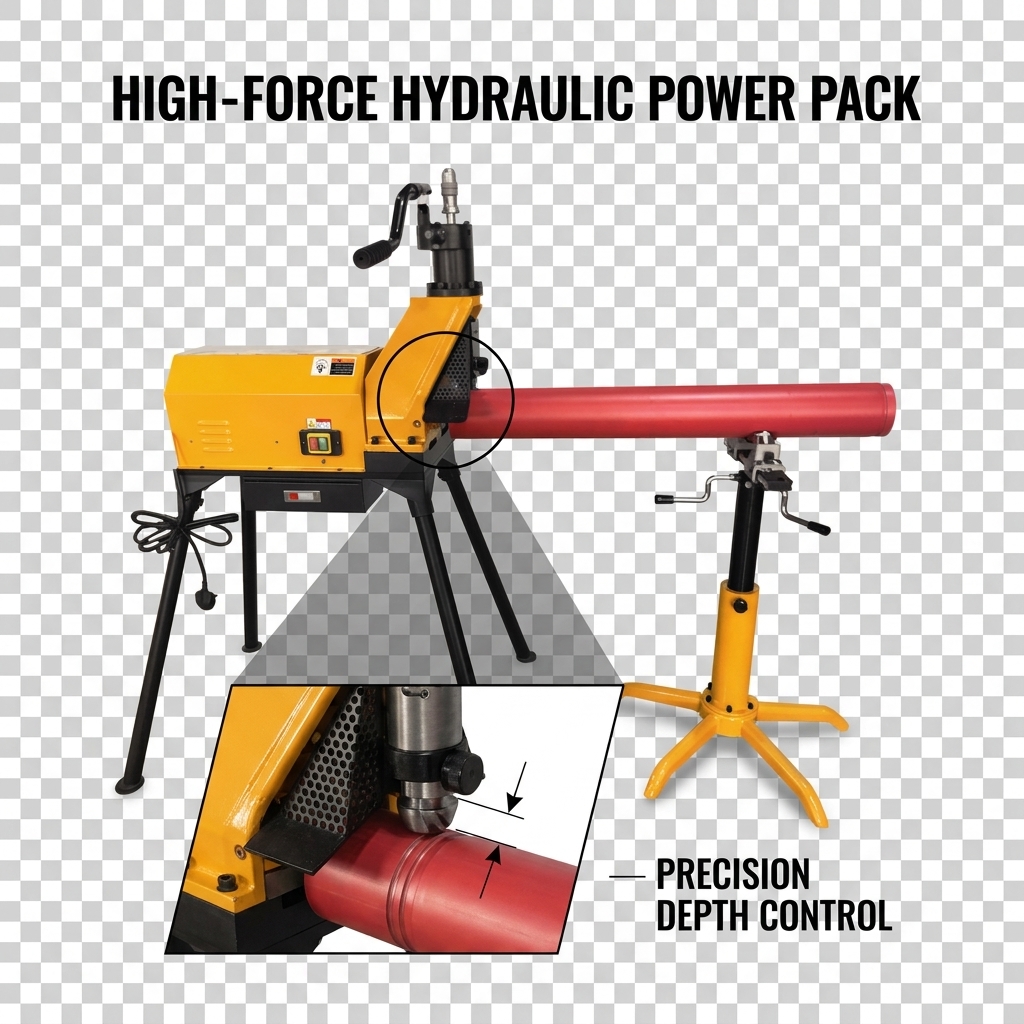

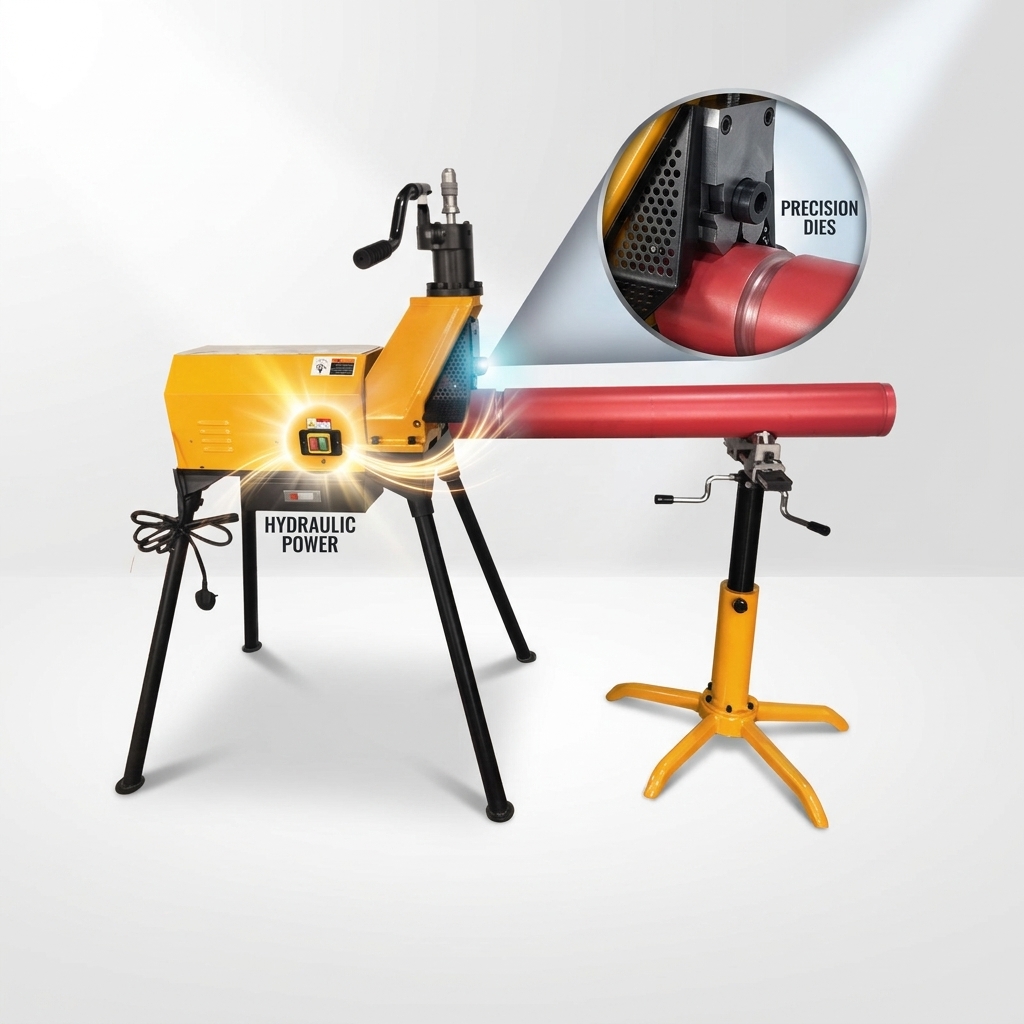

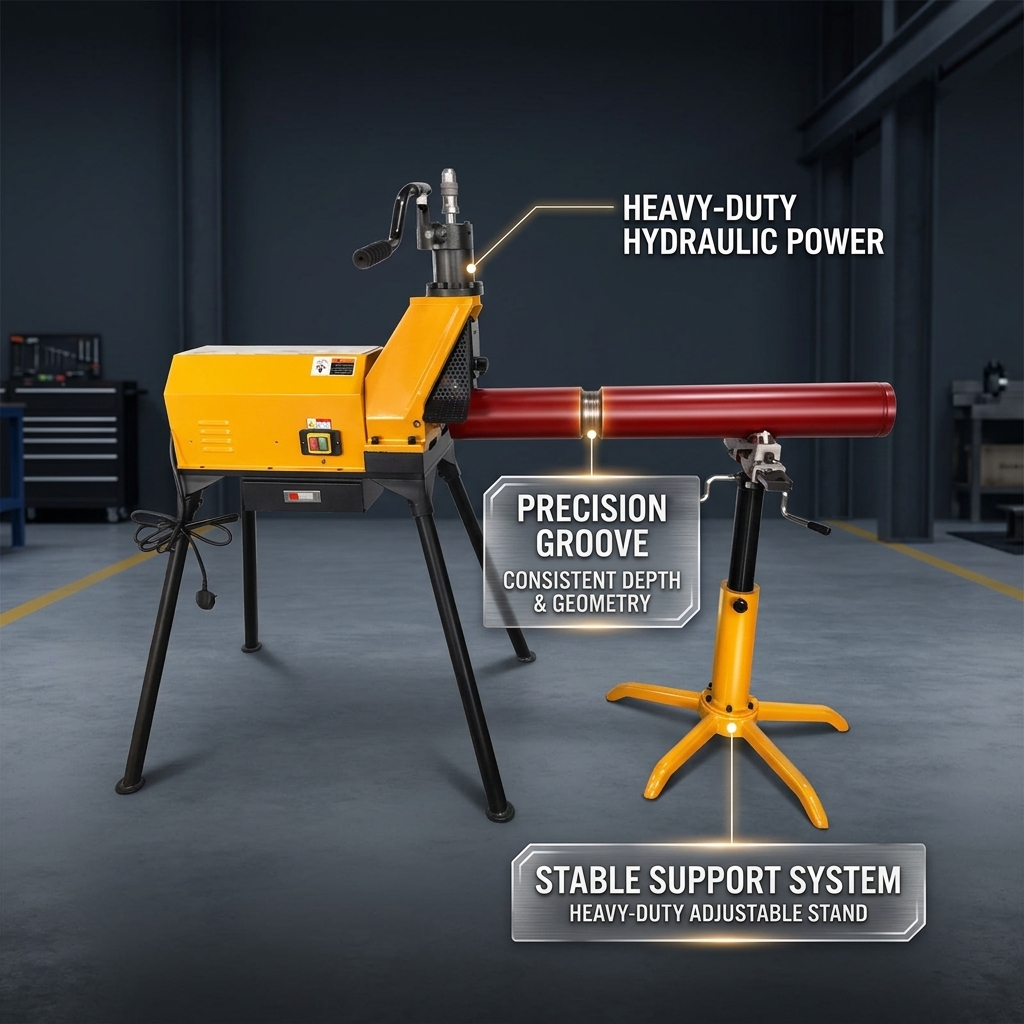

Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Hydraulic Heavy Duty Roll Grooving Machine 2-12 Inch Industrial Pipe Groover for Fire Protection Steel Pipe Wholesale
Specifications
MOQ :
1 Set
Power Supply :
380V/50Hz 3-Phase, 460V/60Hz 3-Phase (Customizable)
Drive System :
Hydraulic Gear Pump + Radial Piston Motor + Planetary Gearbox
Noise Level :
72 dB(A) at 1m
Applicable Pipe Material :
Carbon Steel, Galvanized Steel, Stainless Steel (304/316), Ductile Iron
Packaging Details :
Export-grade steel pallet crate with VCI anti-rust protective wrap, custom-cut EPE foam padding, silica gel desiccant packs, PIPETECH branded exterior
Pipe Wall Thickness :
3.5mm - 12.7mm (Schedule 10 - Schedule 80)
Hydraulic Components :
Standard Industrial (Globally Serviceable, Danfoss-Compatible)
Hydraulic System Pressure :
16 MPa (Max Working Pressure)
Groove Depth Control :
Hydraulic Auto-Stop with Digital Readout Gauge (+/-0.13mm)
Machine Dimensions :
1050 x 720 x 880 mm (L x W x H)
Price :
negotiable
Grooving Force :
5.5 Metric Tons (55 kN)
Hydraulic Oil Capacity :
42 Liters (ISO VG 46)
Spindle Speed :
38 RPM (Constant Torque Hydraulic Drive)
Roll Life :
12,000+ grooves on Schedule 40 CS Pipe
Delivery Time :
7 working days for stock, 15-25 days for production orders
Payment Terms :
T/T,L/C
Machine Weight :
140 kg (Net) / 166 kg (Gross)
Place of Origin :
Zhejiang, China
Hydraulic Motor Power :
1.1 kW
Grooving Capacity :
2 inch - 12 inch (DN50 - DN300)
Certification :
CE, ISO 9001:2015
Model Number :
CGP-12H
Brand Name :
SUNTECHMACH
Supply Ability :
300 Sets per Month
Roll Material :
GCr15 High-Carbon Chromium Bearing Steel (58-62 HRC)
Description

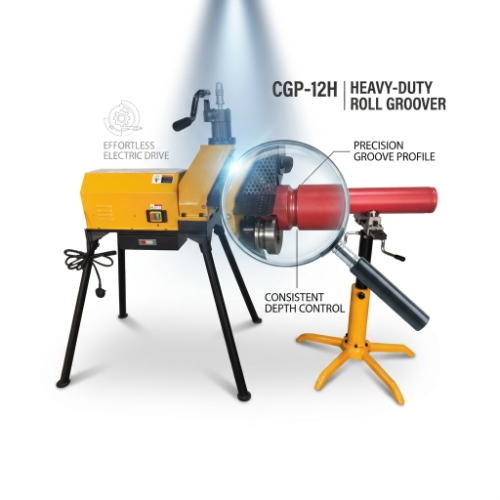

Hydraulic Heavy-Duty Roll Grooving Machine CGP-12H

2-12 Inch Hydraulic Industrial Pipe Groover | CE & ISO 9001 Certified | For Fire Protection, Industrial & MEP Wholesale Distribution
⚡ 1.1kW Hydraulic Power Pack
