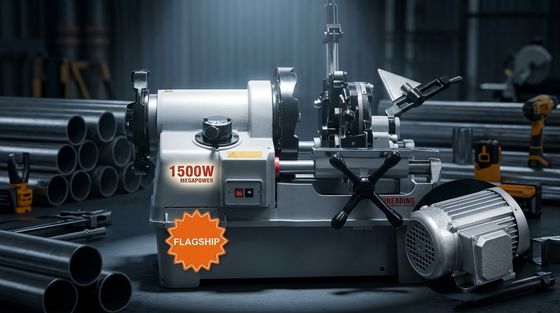

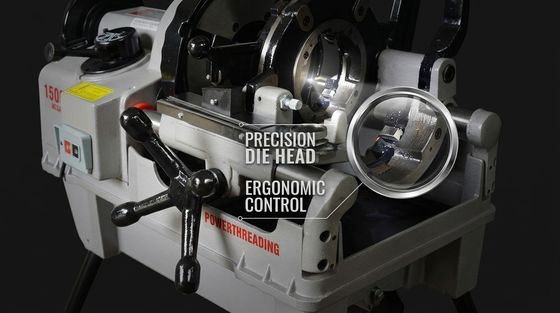

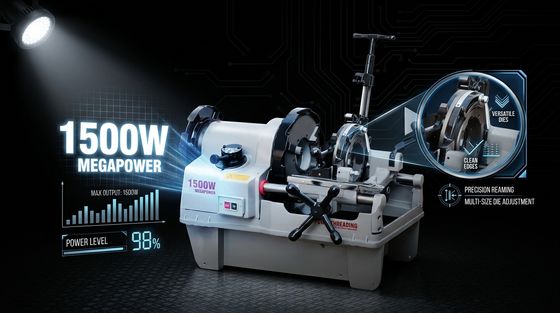

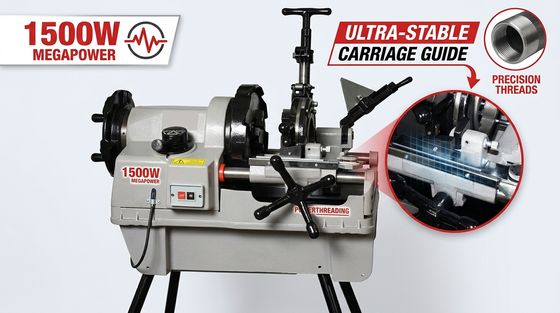

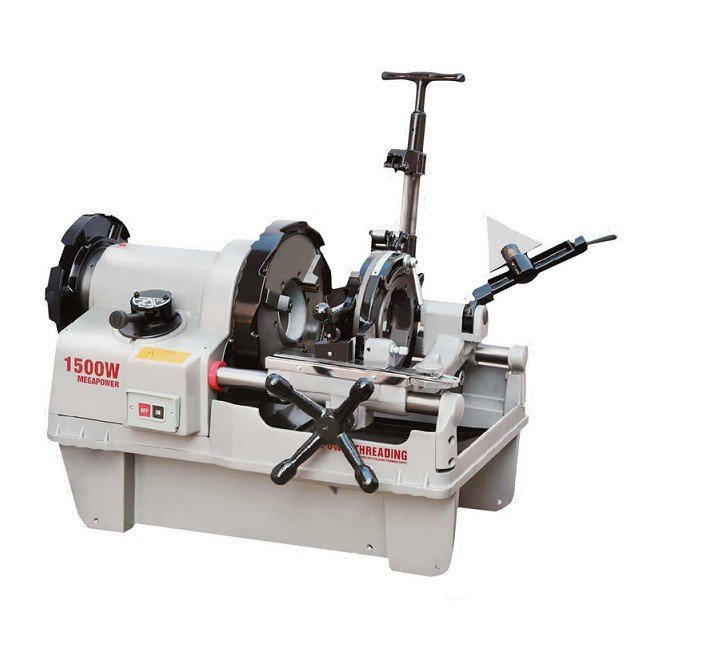

STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
Specifications
Packaging Details :
WOODEN PACKING
Capacity :
1/2"-4"
Warranty :
1 year
Delivery Time :
5-20DAYS
Certification :
CE
Price :
Negotiable
Brand Name :
SUNTECHMACH
Payment Terms :
T/T
Voltage :
110v 220v customized
Place of Origin :
China
Supply Ability :
2000SETS MONTHLY
Motor Power :
1500W
G.W./N.W. :
155/135kgs
Packing Size :
900*640*680mm
Dies :
BSPT or NPT
Frequency :
50hz 60hz
MOQ :
1 set
Model Number :
STT100F
Speed :
12/22/38rpm
Pipes :
Steel pipes or stainless steel
Description

STT100F Electric Pipe Thread Cutting Machine 4 Inch

The STT100F is a professional electric pipe thread cutting machine engineered for threading steel, stainless steel, water, electric and gas pipes ranging from 1/2 inch to 4 inch. Driven by a powerful 1500W motor with three selectable speeds (12/22/38 RPM), it delivers fast, precise and consistent BSPT/NPT threads for on-site installation and construction work.

Key Features

  • Threads pipes from 1/2 inch to 4 inch (diameter 13-100 mm) with BSPT/NPT dies
  • Powerful 1500W motor with 3 selectable speeds: 12/22/38 RPM
  • Quick-open die head for 1/2 inch to 3/4 inch and 1 inch to 2 inch pipes
  • Self-open die head for 2 1/2 inch to 4 inch pipes
  • Improves efficiency, shortens construction time and reduces labor intensity

Technical Data

ModelSTT100F
Machining Size1/2 inch - 4 inch (13-100 mm)
Motor Power1500W
Speed12/22/38 RPM
Dies (BSPT/NPT)1/2-3/4 inch, 1-2 inch, 1 1/2-4 inch
G.W./N.W.155/135 kgs
Packing Size900 x 640 x 680 mm

Standard Equipment

  • Quick-open die head for 1/2-3/4 inch and 1-2 inch
  • Self-open die head for 2 1/2-4 inch
  • Dies set 1/2-3/4 inch
  • Dies set 1-2 inch
  • Dies set 2 1/2-4 inch
  • Support and tools bag

Industry News & Market Facts

Pipe threading machines remain essential equipment in plumbing, construction and industrial installation. With sustained global investment in water supply, gas distribution and building infrastructure, the demand for efficient pipe threading equipment has grown steadily across international markets.

  • Electric pipe threading machines significantly reduce threading time compared with manual threading tools, improving on-site productivity.
  • Standardized BSPT and NPT thread forms ensure threaded connections are interchangeable across different countries and international projects.
  • The growing focus on construction safety and work efficiency continues to drive adoption of motor-driven threading machines in plumbing, HVAC and fire protection sectors.

How to Use a Pipe Threading Machine

StepInstruction
1. Prepare the pipeCut the pipe to the required length, remove burrs from both ends and wipe away any debris or oil.
2. Select the correct diesChoose BSPT or NPT dies that match the pipe diameter and the required thread standard.
3. Install the die headMount the quick-open die head (1/2-3/4 inch, 1-2 inch) or self-open die head (2 1/2-4 inch) and lock it securely.
4. Clamp the pipePlace the pipe on the support, center it with the threading head and tighten the clamp firmly.
5. Apply cutting oilApply cutting oil to the dies and the pipe end to reduce friction and heat during threading.
6. Set the speedSelect the appropriate speed (12, 22 or 38 RPM) according to the pipe size and material.
7. Start threadingSwitch on the motor, engage the die head and apply steady pressure until the desired thread length is reached.
8. Finish and inspectDisengage the die head, switch off the machine, remove the threaded pipe and check the thread quality.

Applications

Widely used in equipment installation and construction industries for plumbing, HVAC, fire protection, gas and water pipeline projects where threaded connections are required.

Application Scenarios

STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPMSTT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
STT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPMSTT100F Electric Pipe Thread Cutting Machine 1/2 to 4 Inch 1500W Motor 12/22/38 RPM
