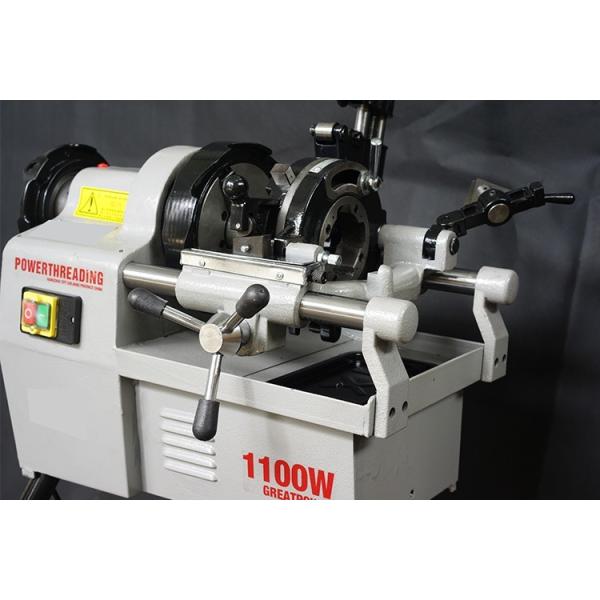

ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
Specifications
Weight (Gross/Net) :
80 / 68 kg
Capacity :
1/2"-2 1/2" (DN65 Max)
Warranty :
1 Year
Motor Power :
1100W Copper Induction
Model :
ZT-65BF
Product Name :
Automatic electric pipe threader CE ZT-65BF 1/2 inch-2 1/2 inch pipe threading machine for sale
Scope of application :
1/2"-2 1/2''
Motor power :
1100W
Speed :
30 rpm
Thread type :
BSPT 1/2''-3/4'', 1''- 2 1/2''
Package :
1wooden case/set
G.W/N.W. :
80/68KGS
Packing size :
70x48x54cm
Thread Type :
BSPT 1/2"-3/4", 1"-2 1/2"
Certification :
CE, ISO 9001
Die Head :
Swift Open Type, Automatic Retraction
Packing Size :
700 × 480 × 540 mm
Brand Name :
SUNTECHMACH
Model Number :
ZT-65BF
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
USD300-350/SET
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
12000PCS/MONTH
Delivery Time :
30-35working days
Packaging Details :
Wooden case
Description

ZT-65BF Automatic Electric Pipe Threader — 1/2"-2 1/2" Capacity

1100W Copper Induction Motor · 30 RPM · Swift Open Die Head · CE & ISO Certified

⚡ 1100W Heavy-Duty Motor 📏 1/2"-2 1/2" DN65 Max 🏆 CE + ISO 9001 🔩 1-Year Warranty

🔍What Commercial Pipe Threading Challenges Look Like — And How ZT-65BF Handles Them

Contractor ConcernZT-65BF Solution
Need to thread 2"+ pipe for fire protection and commercial plumbing1/2" to 2 1/2" (DN65) capacity — handles everything from small residential to heavy commercial and fire sprinkler main lines in one machine.
Manual threading large pipe is physically impossible1100W copper induction motor at 30 RPM with large-modulus oblique gear main shaft — super-large torque for effortless threading through heavy-wall steel pipe.
Set up and adjustments waste precious job timeTwo-lever gear system with swift open type die head and automatic retraction. Switch between pipe sizes in seconds. No tools needed for die changes.
Pipe slips during threading, ruining the cutJagged hammer panel chuck design with thickened cast iron construction. Firm, non-slip clamping even on smooth galvanized pipe. One operator can clamp and release quickly.
Cutter wanders, threads not straightDouble guide post cutting knife system for accurate, perpendicular cuts every time. Precision-machined rails eliminate blade deflection under load.
Motor burns out on long production runsPure copper induction motor — superior heat dissipation and durability compared to aluminum-wound alternatives. Designed for continuous production shop use, not just occasional jobs.
No local service or supportCE & ISO 9001 certified with 1-year full warranty. Free spare parts for manufacturing defects. Commissioning service available with on-site technician support.

⚡Built for Professional Production — Not Just Occasional Use

⚙ Two-Lever Gear Transmission
High-efficiency dual-lever system delivers consistent torque across the full 1/2"-2 1/2" range. Smooth power transfer with minimal maintenance.
🔥 1100W Copper Induction Motor
Pure copper winding with superior thermal performance. Low noise, extended service life. Delivers full-dimension threads in a single pass — no re-cutting needed.
🔗 Swift Open Type Die Head
Standard collocation automatic retraction die head. Opens and closes rapidly for fast pipe changeover. Compatible with BSPT standard dies.
🔒 Jagged Hammer Panel Chuck
Unique gripping surface design prevents pipe rotation under high torque. Firm hold on steel, galvanized, and black iron pipe without marring the surface.
📏 Double Guide Post Cutter
Twin precision guide posts eliminate blade wobble. Accurate, clean cuts with every operation. Heavy-duty hardened blade for thousands of cuts.
⚖ Large Modulus Oblique Gear
Oversized main shaft gear delivers super-large torque without slipping. Designed for the high demands of continuous commercial production environments.
📦 Thickened Cast Iron Body
Heavy cast iron construction absorbs vibration for stable, accurate threading. 80kg gross weight provides rock-solid stability — no walking or shifting during operation.
🔃 Automatic Retraction System
Die head automatically retracts when threading is complete. Saves operator time and ensures consistent thread depth on every pipe. No manual measurement needed.

📊ZT-65BF vs. Standard Portable Threaders — Know the Difference

FeaturePortable 1/2"-1" ThreaderZT-65BF 1/2"-2 1/2" Machine
Max Capacity🔴 1" only🟢 2 1/2" (DN65)
Motor Power🟡 650W🟢 1100W copper
Construction🟡 Mixed aluminum/steel🟢 Cast iron body
Die Head🟡 Manual change🟢 Swift open auto-retract
Best ForResidential & light commercialFire protection, HVAC, industrial
Continuous Use🔴 Limited duty cycle🟢 Production-rated
💡 Ideal for These Professionals: Fire protection pipeline contractors · Commercial plumbing companies · HVAC mechanical rooms · Industrial plant maintenance · Pipe fabrication shops · Construction firms installing sprinkler systems, gas lines, and large-diameter water supply piping.

📐Technical Specifications

ModelZT-65BF
Scope of Application1/2" - 2 1/2" (DN65 Max)
Motor Power1100W (Copper Induction)
Rotational Speed30 RPM
Thread TypeBSPT 1/2"-3/4", 1"-2 1/2"
Die Head ModelSwift Open Type (Automatic Retraction)
Gross / Net Weight80 / 68 kg
Packing Dimensions700 x 480 x 540 mm
CertificationCE, ISO 9001
Warranty1 Year

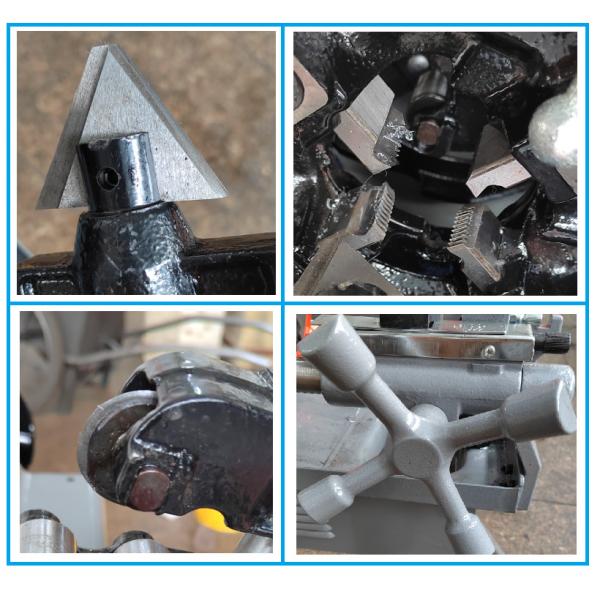

📚Operation Process & Quality Details

ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing

The details determine quality — from gearbox to chuck, every component built for production duty

ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing

❓FAQ

Q: What is the minimum order quantity?
A: 1 set for trial evaluation. Recommended order amount above USD 2,000 for cost-effective sea shipping.
Q: What payment terms do you accept?
A: 30% T/T deposit upfront, 70% balance before shipment. T/T, Western Union, MoneyGram accepted.
Q: How long is delivery?
A: Approximately 7 days after receipt of formal order and 30% deposit. Shipping time varies by destination.
Q: Do you offer commissioning service?
A: Yes, on-site commissioning available. Buyer covers travel expenses for technician deployment.
Q: What about warranty and broken parts?
A: 12-month full warranty. Free replacement for quality-related broken parts during warranty period.
Q: What is the packaging?
A: Fumigation-free plywood case — one wooden case per set for maximum protection during transit.
Q: Can you customize voltage?
A: Yes, motor voltage and frequency can be customized to match your local power standard.
🌐 Supply Capacity: 12,000 sets per month from our Zhejiang factory. FOB Shanghai/Ningbo. Professional plumbing tools supplier serving North America, Europe, Middle East markets. Multi-language communication support available.

🚀 From 1/2" to 2 1/2" — One Machine Handles It All

ZT-65BF Automatic Electric Pipe Threader. 1100W. 30RPM. CE & ISO Certified. Inquire for wholesale pricing and shipping options today.
