Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T
Specifications
Max.sheet size :
900*860mm
Model Number :
LY-800ACT-T
Place of Origin :
China
Price :
Negotiate
Accuracy :
±1mm
Power/Voltage :
4Kw/AC220V
Supply Ability :
15 sets per month
MOQ :
1 set
Speed :
40-90m/min
Brand Name :
Lishunyuan
Pasting head :
2pcs (More options available)
Machine Dimension :
5500*1540*1650mm
Model :
LY-800ACT-T
Min. sheet size :
100*40mm
Certification :
CE
Packaging Details :
Film and pilwood crate
Width of Tape size :
5–35mm (Optional: 8–70mm)
Payment Terms :
L/C, T/T
Delivery Time :
15-20 working days
Weight :
1500kg
Description

Advantages:

1.Automatic Feeding with Friction Paper Feeder: The feeding structure uses a friction paper feeding method, ensuring efficient and smooth paper output.

2.Skew Correction Function: The machine features a correction function to ensure that paper feeding remains straight without skewing.

3.Rotary Material Replacement for Sticker Heads: The sticker heads have a rotary changeover function, enabling quick double-sided tape replacement within 30 seconds, enhancing efficiency.

4.Fiber Optic Sensing with Servo Positioning: Fiber optic induction combined with servo positioning ensures precise placement of double-sided adhesive.

5.Precise Adjustment of Sticker Head Offset: Screw rods, handles, and scales allow for accurate and easy adjustment of the sticker head's position.

6.Human-Machine Interface (HMI) with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface, simplifying operation.

7.Strong Suction on Main Conveyor Belt: The main conveyor belt has a strong suction function, ensuring smoother and more stable paper handling during the adhesive application process. Multi-Segment Adhesive

8.Application: Supports segmented adhesive application with a minimum spacing of 10mm between each segment.

9.PLC, Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber,Festo cylinder, MAC solenoid valve.

Details:

Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T

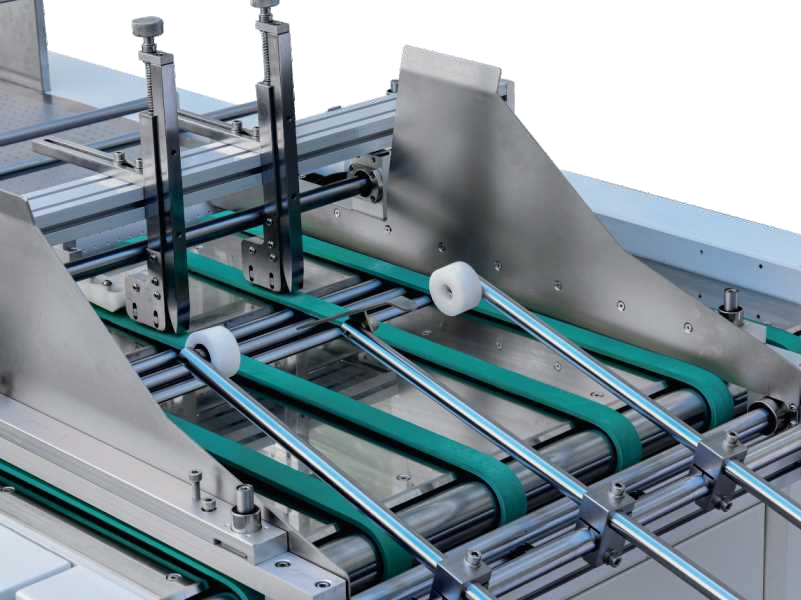

Full paper feeding section with air suction device Deviation correction device

Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T Fully Automatic Double-Sided Tape Application Machine With Alignment Adjustment LY-800ACT-T

45° one-click rotary film changing device Fish-scale Stacking Paper Collecting Device
