LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery
Specifications
Model Number :
LY-900FD
Max.sheet size :
900*860mm
Packaging Details :
Film and plywood crate
Power/Voltage :
8KW / AC380V
MOQ :
1
Delivery Time :
15-20days
Pasting head :
2pcs (optional extra heads available)
Accuracy :
±1mm
Price :
Negotiable
Product thickness :
≥100GSM-2mm
Payment Terms :
T/T
Switch Double-sided Tape Time :
≤ 30 seconds
Weight :
1500kg
Supply Ability :
20 sets per month
Speed :
40-90m/min
Machine Dimension :
5500*1540*1650mm
Certification :
CE
Min. sheet size :
300*300mm
Place of Origin :
China
Width of Tape size :
5-35mm (Optionally available: 8-70mm)
Brand Name :
Lishunyuan
Name :
LY-900FD
Description

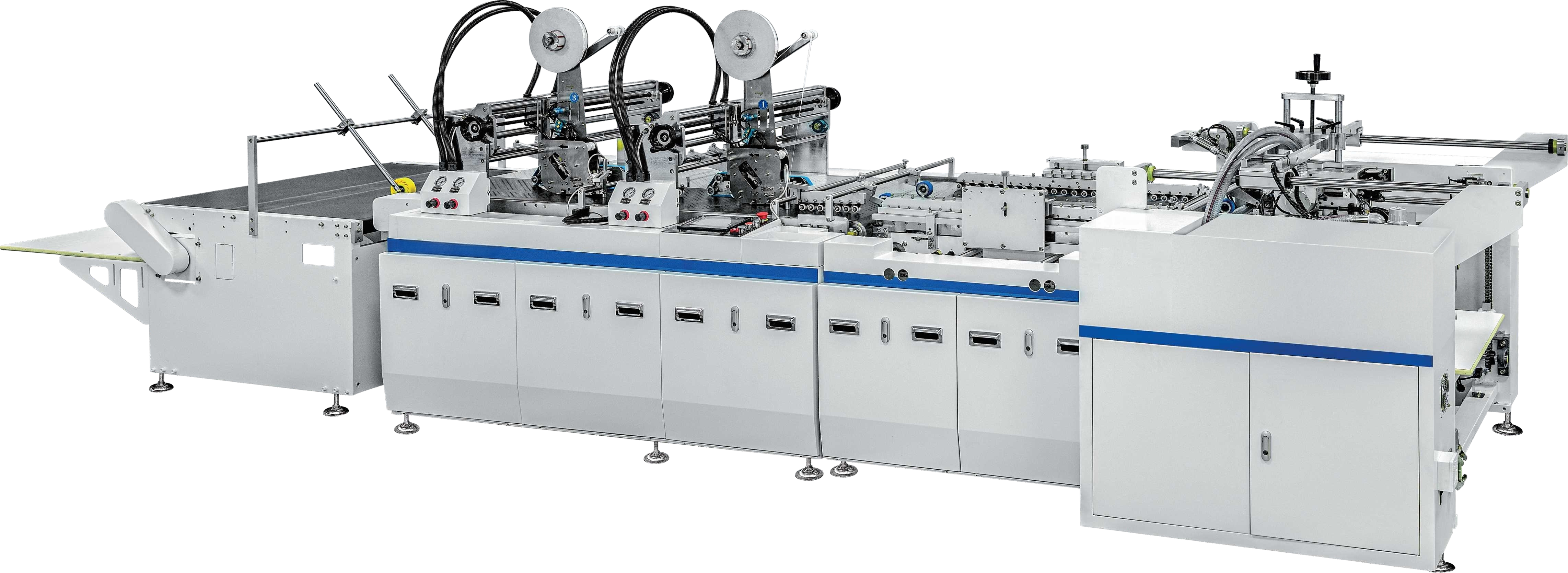

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery



Advantages:

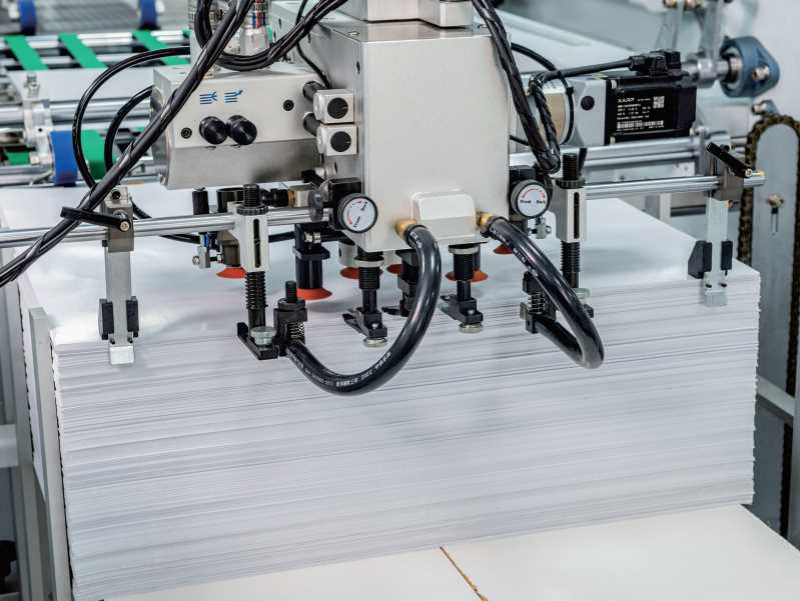

  • 1. Top-Suction Flyer Feeder for Material Supply: Utilizes a top-suction flyer feeder to solve issues with feeding thin paper and prevent surface scratches.

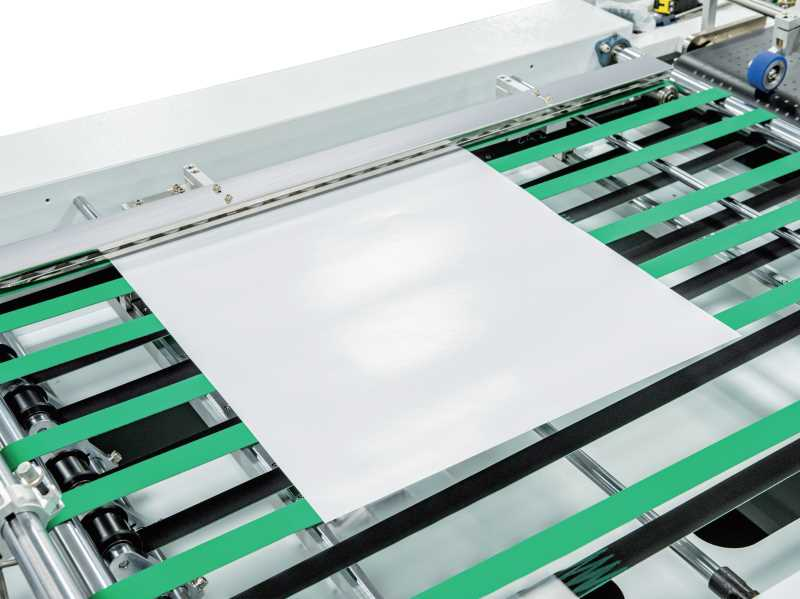

  • 2. Skew Correction Function: Ensures that paper feeding remains straight without skewing.

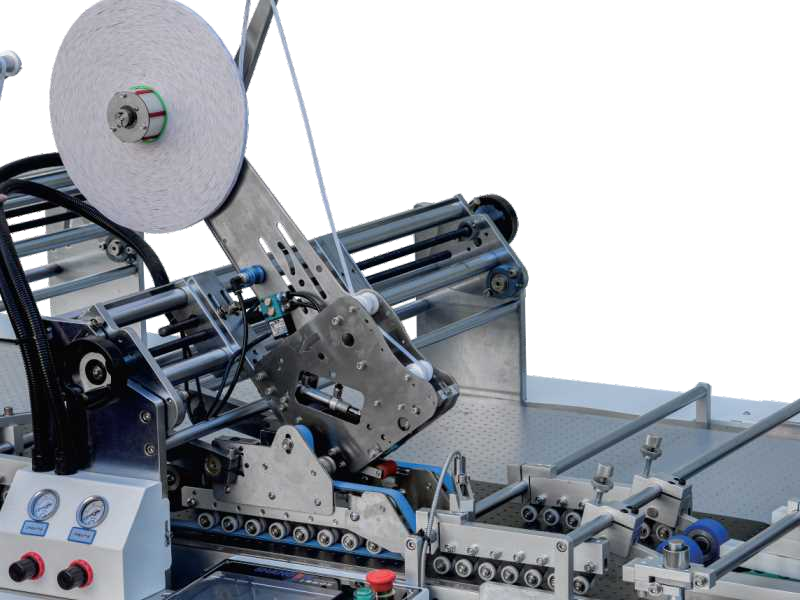

  • 3. Rotary Material Replacement for Sticker Heads: Enables quick double-sided tape replacement within 30 seconds,enhancing efficiency.
  • 4. Servo Motor with Planetary Gearbox for Main Drive: Provides higher precision in adhesive application and easy size adjustment.
  • 5. Precise Adjustment of Sticker Head Offset:Screw rods,handles,and scales allow for accurate and easy adjustment of the sticker head's position.
  • 6. Human-Machine Interface(HMI)with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface,simplifying operation.

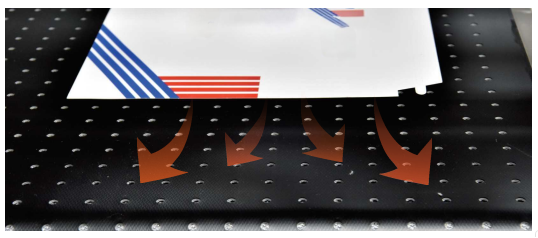

  • 7. Strong Suction on Main Conveyor Belt: The main conveyor belt features strong suction,ensuring smoother and more stable paper handling during the adhesive application process.
  • 8. Multi-Segment Adhesive Application Capability: Supports segmented adhesive application.


LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

This machine is used for applying long strips of double-sided tape

to the surfaces of large sheets of cardstock, coated paper,posters,etc.



Details:


LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery


LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

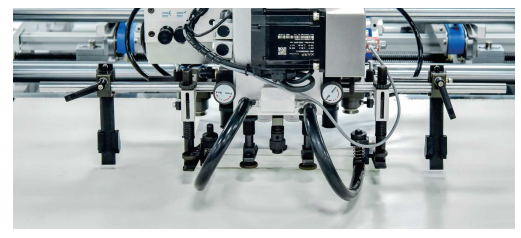

Top-Suction Feeder

For stable material pickup

Bead Guiding Device

For precise web alignment
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

45° One-Key Swivel Unloading Device

For quick and efficient changeover

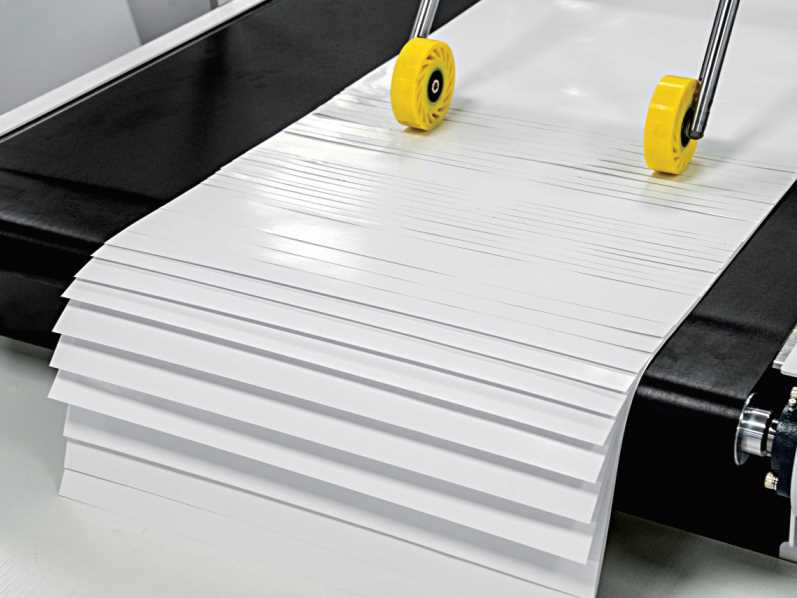

Shingle-Style Stacking Unit

For neat overlapping output




Configure:


Weinview touch screen, Leisai servo motor, Zhuolan planetary reducer, Omron amplifier fiber,Festo cylinder, MAC solenoid valve.



LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery



Technical Parameters:


Model

LY-900FD

Max.sheet size

900*860mm

Min. sheet size

300*300mm

Width of Tape size

5-35mm (Optionally available: 8-70mm)

Pasting head

2pcs (optional extra heads available)

Product thickness

≥100GSM-2mm

Switch Double-sided Tape Time

≤ 30 seconds

Speed

40-90m/min

Accuracy

±1mm

Power/Voltage

8KW / AC380V

Machine Dimension

5500*1540*1650mm

Weight

1500kg





Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

Manufacturing Workshop
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

Industry Exhibitions
LY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging MachineryLY-900FD Fully Automatic Feeder Double-Sided Tape Machine Box Taping Machine Packaging Machinery

Quality After-Sales Service Commitment
  • 1 Hour Service: We respond to service requests within one hour with solution recommendations
  • 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
  • Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
  • Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
  • Pre-sale Service: Comprehensive training programs with professional engineers before delivery
  • Sale Services: Installation, debugging, and one week of free training services upon machine arrival
  • After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
