Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping
Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping
Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping
Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping
Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping
Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping
Specifications
Payment Terms :
T/T
Switch Double-sided Tape Time :
≤ 30 seconds
Weight :
1500kg
Supply Ability :
15 sets/month
Speed :
40-90m/min
Machine Dimension :
5500*1540*1650mm
Certification :
CE
Min. sheet size :
300*300mm
Place of Origin :
China
Width of Tape size :
5-35mm (Optionally available: 8-70mm)
Brand Name :
Lishunyuan
Model :
LY-900FD
Model Number :
LY- 900FD
Max.sheet size :
900*860mm
Packaging Details :
Film and plywood crate
Power/Voltage :
8KW / AC380V
MOQ :
1
Delivery Time :
15-20days
Pasting head :
2pcs (optional extra heads available)
Accuracy :
±1mm
Price :
Negotiate
Product thickness :
≥100GSM-2mm
Description

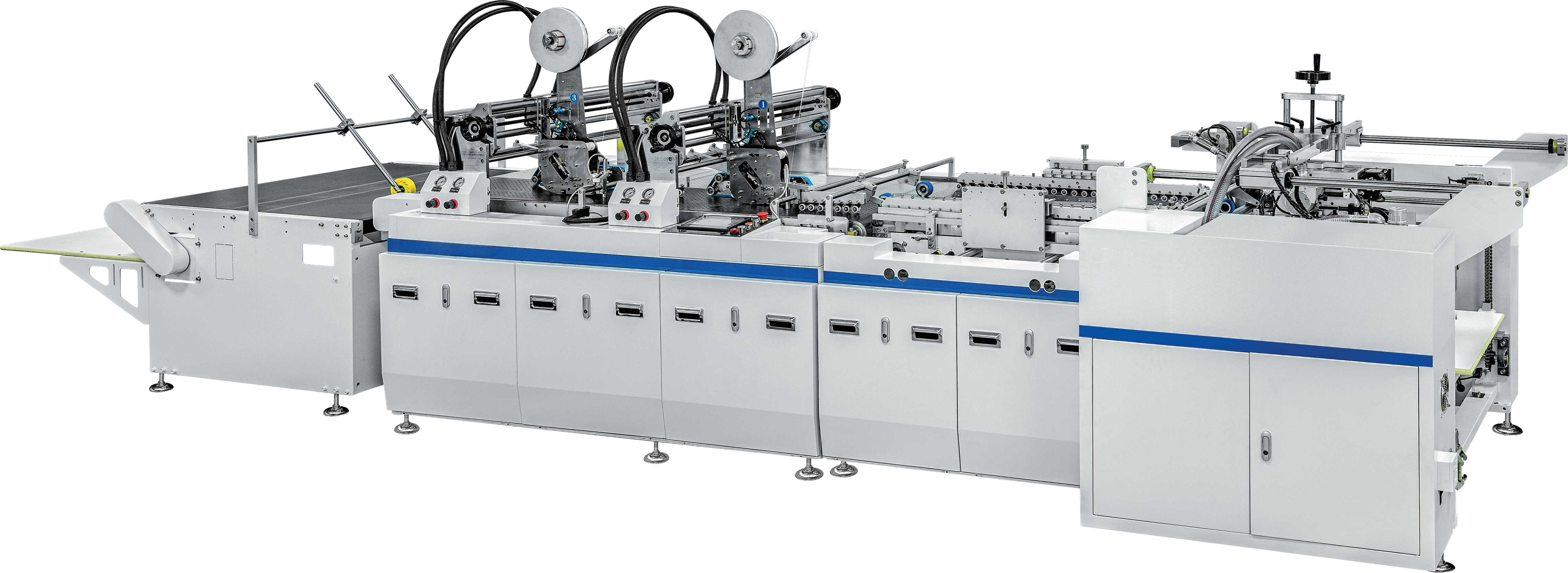

LY-900FD Fully Automatic Feeder Double-Sided Tape Machine

This machine is used for applying long strips of double-sided tape to the surfaces of large sheets of cardstock, coated paper,posters,etc.

Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping

Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic TapingLy-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping

Key Features
  • Top-Suction Flyer Feeder for Material Supply: Utilizes a top-suction flyer feeder to solve issues with feeding thin paper and prevent surface scratches.
  • Skew Correction Function: Ensures that paper feeding remains straight without skewing.
  • Rotary Material Replacement for Sticker Heads: Enables quick double-sided tape replacement within 30 seconds,enhancing efficiency.
  • Servo Motor with Planetary Gearbox for Main Drive: Provides higher precision in adhesive application and easy size adjustment.
  • Precise Adjustment of Sticker Head Offset:Screw rods,handles,and scales allow for accurate and easy adjustment of the sticker head's position.
  • Human-Machine Interface(HMI)with Touchscreen Parameter Settings: Parameters are set via an intuitive touchscreen interface,simplifying operation.
  • Strong Suction on Main Conveyor Belt: The main conveyor belt features strong suction,ensuring smoother and more stable paper handling during the adhesive application process.
  • Multi-Segment Adhesive Application Capability: Supports segmented adhesive application.

Equipment Features

Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping

Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping

Top-Suction Feeder

For stable material pickup

Bead Guiding Device

For precise web alignment

Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping

Ly-900FD Fully Automatic Feeder Double Sided Tape Applicator Machine Automatic Taping

45° One-Key Swivel Unloading Device

For quick and efficient changeover

Shingle-Style Stacking Unit

For neat overlapping output

Technical Parameters

Model

LY-900FD
Max.sheet size

900*860mm
Min. sheet size

300*300mm
Width of Tape size

5-35mm (Optionally available: 8-70mm)
Pasting head

2pcs (optional extra heads available)
Product thickness

≥100GSM-2mm
Switch Double-sided Tape Time

≤ 30 seconds
Speed

40-90m/min
Accuracy

±1mm
Power/Voltage

8KW / AC380V
Machine Dimension

5500*1540*1650mm
Weight

1500kg
