Drive mechanism,Its material is Q235 ,Q345B,45 and QT700-2,used for the Bucket Conveyor System:

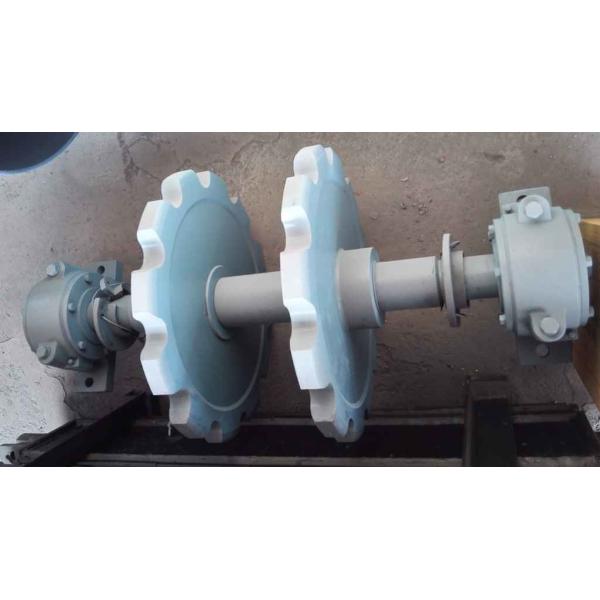

Introduction: drag wheel is removable type sprocket, the sprocket tooth surface wear, only need to change the wheel. Change the wheel, just need to disconnect the wheel and the wheel hub connecting screws, removing has worn wheel, assembly on the new round of tablet, this makes maintenance work is simple, convenient, greatly reduce maintenance costs.

Main parts material: 1, big drag sprocket: QT700-2; 2, drag sprocket: 40 Cr; 3, bearing seat: HT200; Drag the axis: 45 #;

Bucket conveyor is called as the trough conveyor; Bucket conveyor is a kind of orbiting hopper to horizontal or oblique conveying material equipment, widely used in power stations, mines, coal and other industries, for a variety of loose material conveying; Such as: boiler ash, cement clinker, slag, coke, gravel, etc., especially some big, high temperature, capacity big, blocks of acute Angle and ground sharp cut resistant materials. Because the chain bucket conveyor has arranged flexibly, large conveying capacity, long service time, less maintenance, low operating cost, the advantages of big conveying Angle and welcome by the masses of users.

Introduction:

The LD series chain bucket conveyor is a kind of equipment to horizontally or inclined convey the material by the bucket moving along the rail. It is widely used for the bulk material conveying in power plant and mine. The chain bucket conveyor is highly welcomed by the users for its advantages as flexibly arrangement, large conveying capacity, long service life, and less maintenance work.

Classification of Chain Bucket Conveyor:

The drag chain is the important part of the chain bucket conveyor, which is high strength double row heavy plate type roller chain. According to the different arrangement position of the chain relative to the bucket, the conveyor can be divided into two types: side chain type and bottom chain type.
