Specifications
Brand Name :
PINCHI
Model Number :
LG-1/6DP
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Certification :
CE
Features :
The automatic gasket insertion machine automatically inserts gaskets into lids, replacing manual labor to produce safer and more hygienic products.
Function :
Automatically identifies front and rear orientation, ejects missing washers, and supports dual-washer functionality.
production capacity :
Speed can reach 3,000 to 12,000 per hour
Scope of Application :
Suitable for the food, pharmaceutical, pesticide, and daily chemical industries.
Host Dimensions :
3.5m*1.45m*1.72m
Warranty :
1 Year
Automatic Grade: :
Automatic
Cap diameter :
φ30-60mm
Description
Fully Automatic Cap Liner Insertion Machine with 4000pcs/hour Speed and Dual-Washer Functionality
Plastic Cap Fully Automatic Gasket Insert Machine
The High-Speed Automated Cap LinerInsertion Machine features a productioncapacity of 4000 pieces per hour.
Overview

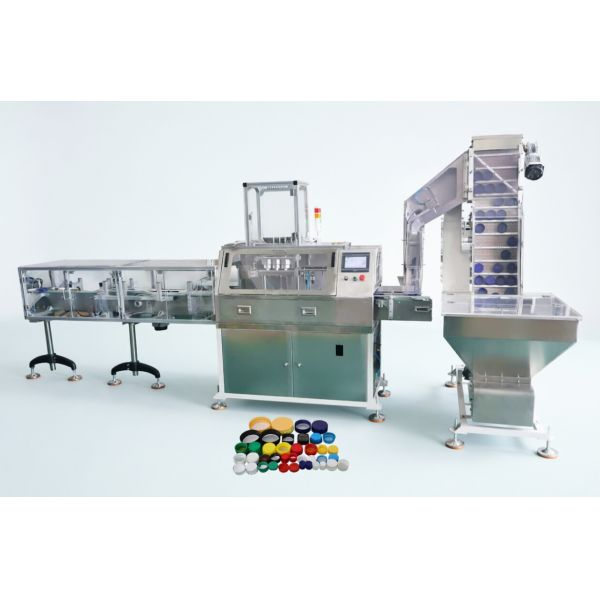

This automatic Cap Liner Insertion Machine efficiently inserts liners into caps, eliminating manual handling to prevent product contamination while significantly improving production efficiency. Available in two configurations: linear six-station models and rotary one or two-station models.
Equipment Features of Cap Liner Insertion Machine
  • Eliminates manual labor and prevents secondary material contamination
  • Siemens PLC system ensures stable and reliable performance
  • Automatic defective cap rejection system
  • Integrated cap sorting system organizes and orients all caps properly
  • Automatic feed stop when caps are oversupplied
  • System alarm and stop function for cap shortages
  • Automatic shutdown upon reaching preset output targets
  • Safety protective covers for secure operation
  • Simple cover replacement design for easy operation
Technical Specifications of Cap Liner Insertion Machine
Model LG-1/6DP
Cap Diameter φ30-60 mm
Number of Stations 1 to 6
Output Capacity 3000-12000 pcs/hour
Power Consumption 0.37 KW
Net Weight 850 KG
Dimensions (L×W×H) 3.5×1.45×1.72 M
Payment Terms and Trade Conditions
Product Description 4000 To 12000pcs/Hour Cap Liner Insertion Machine 60mm Cap Induction Liner Machine
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long-term support for software & system
Commissioning Free commissioning within 3 days; customer responsible for engineer's local accommodation, food, and travel tickets; additional time charged at USD 150/day
After Sales Service
Complete product quality traceability with 1-year warranty period starting from equipment acceptance date.
Free maintenance during warranty period; travel and material costs apply for services beyond warranty.
Product Images:
4000 To 12000pcs/Hour Cap Liner Insertion Machine 60mm Cap Induction Liner Machine
Remote Operation & Maintenance: Free online services via Pinchi Tech AI cloud platform for system updates, algorithm settings, software adjustments, and technical support.
